Brand: Free Color
Category: Moving Heads FX

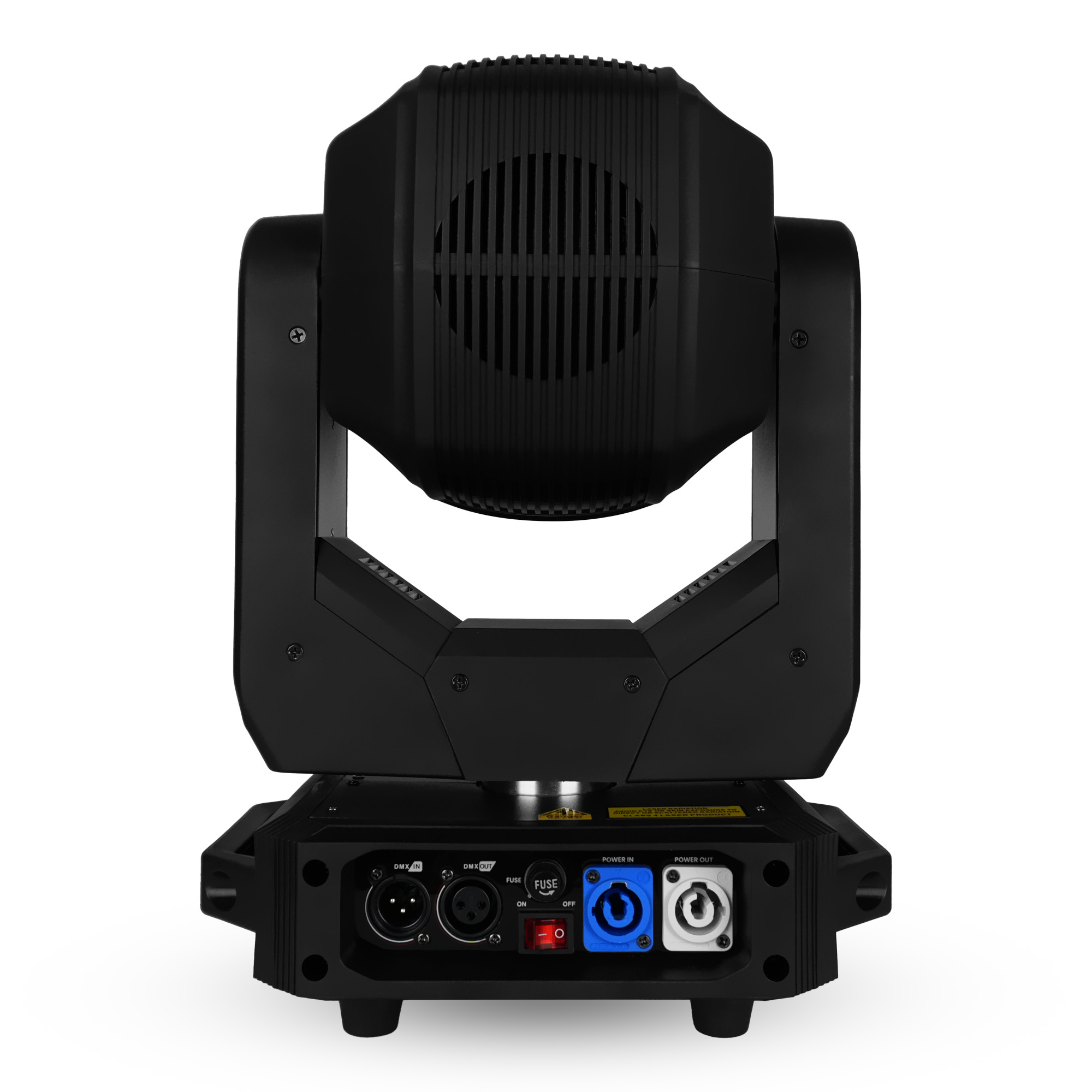

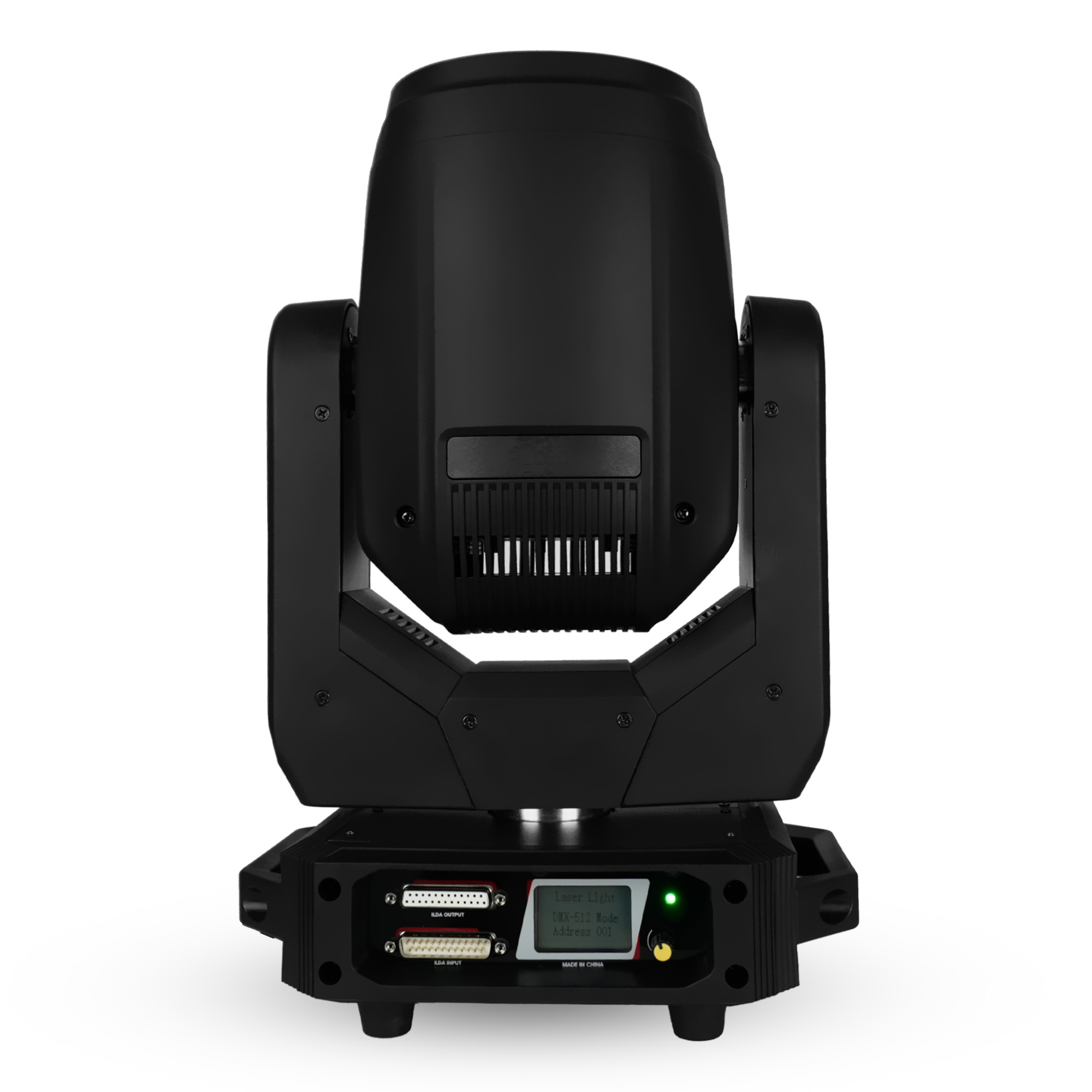

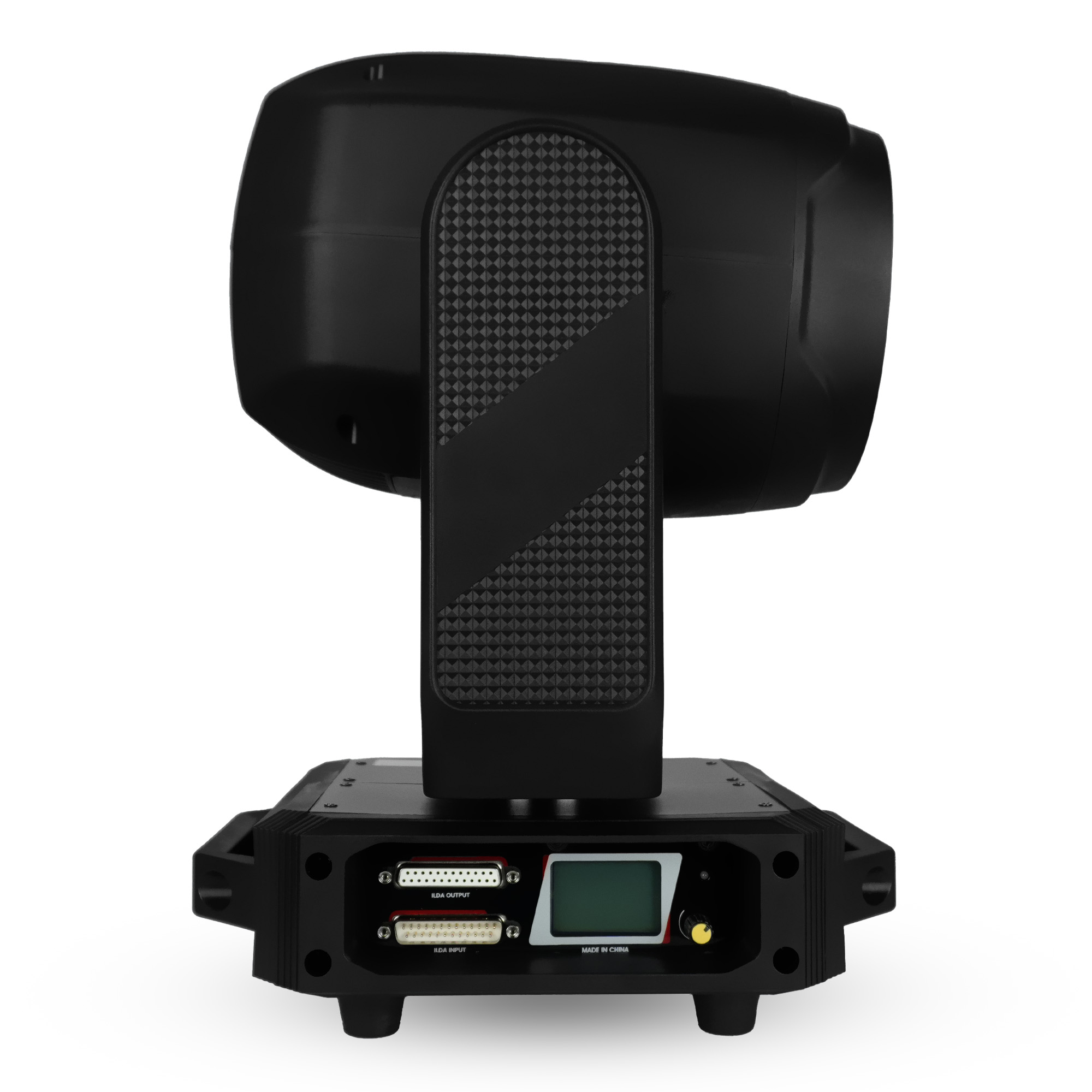

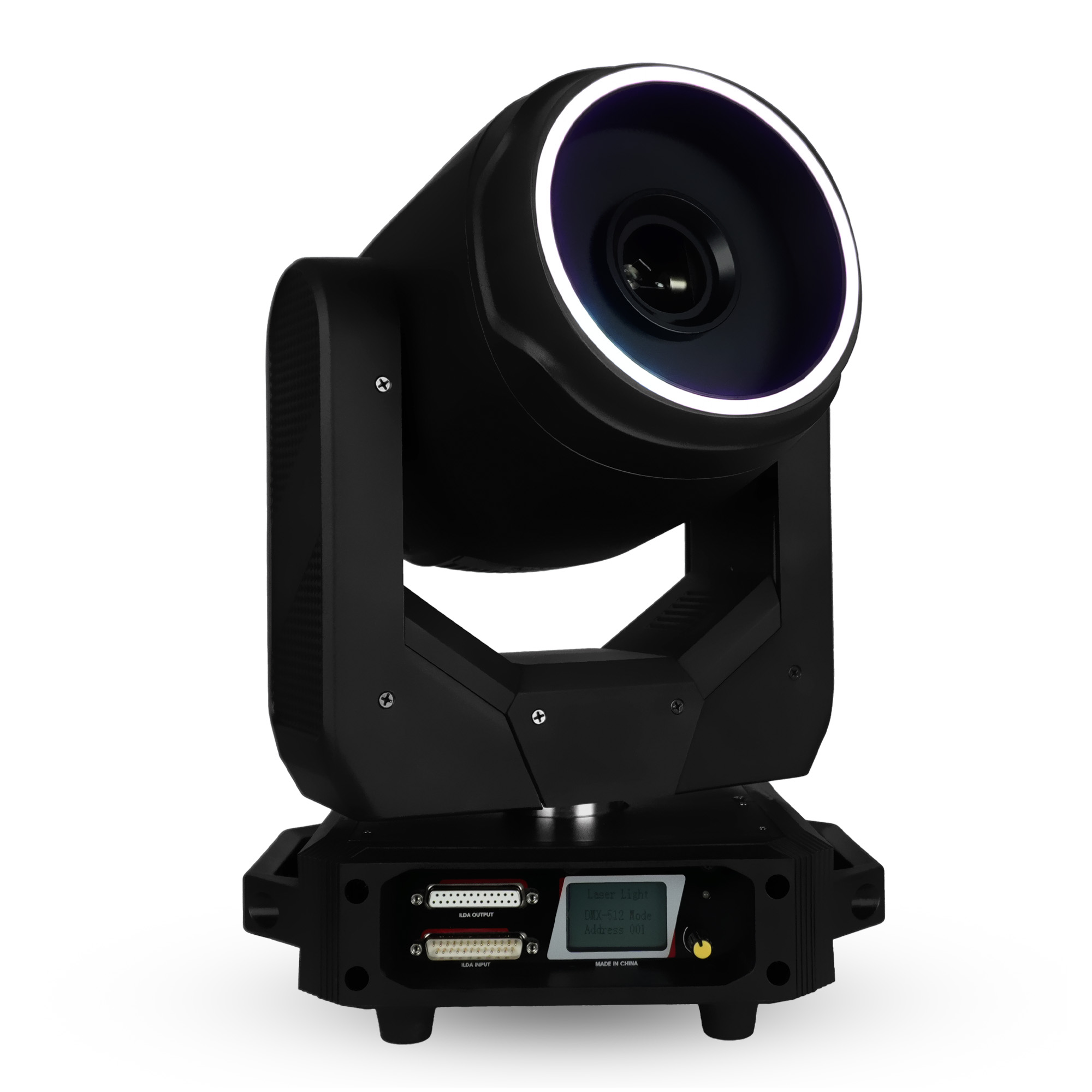

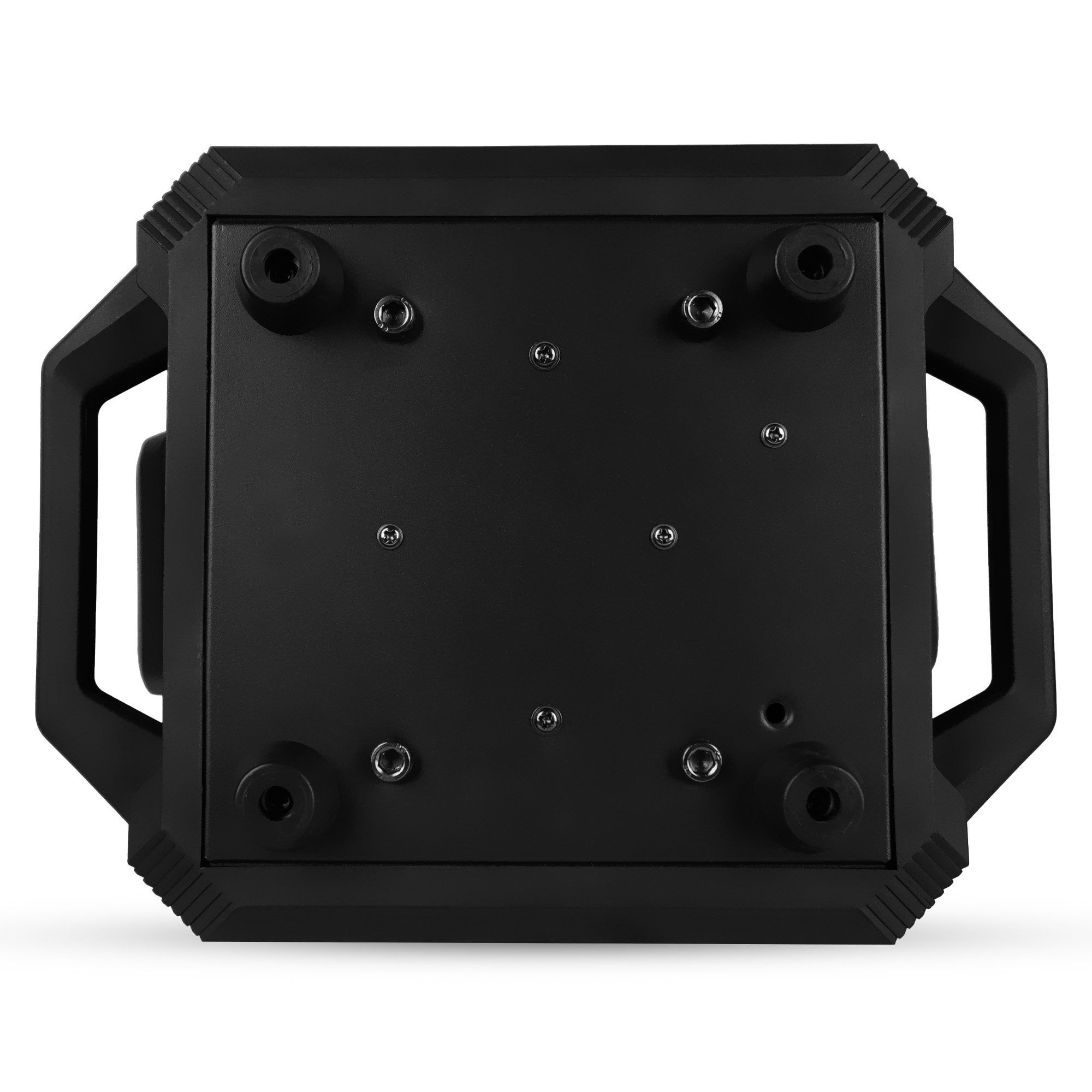

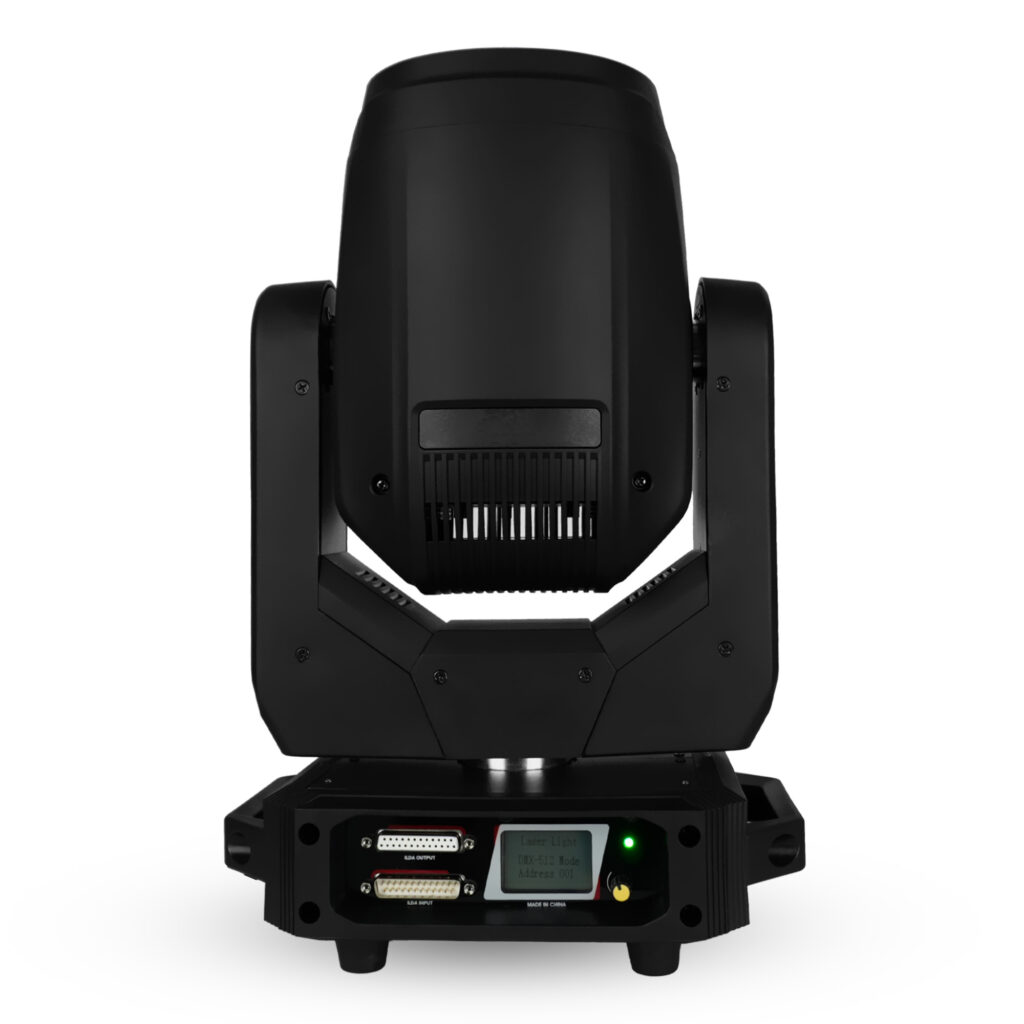

FREE COLOR LASER HEAD 5000RGB
This full-color laser head for animation features a 5W main source, adjustable direction, and a decorative ring around the lens. The unit offers a variety of customizable graphic laser effects, and the ILDA port allows for animations and drawings created in specialized software.
| Source | |
| Laser | 5W RGB |
| Wavelength | Red: 638nm, Green: 530nm, Blue 445nm |
| Scanner | 20 kpps high-speed stepping motor |
| Functions | |
| Build-in laser effects | |
| Build-in laser animations | |
| LED ring RGB | |
| Supporting laser show software | |
| Control | |
| Multifunctional LCD display | |
| DMX channels | 32/49 |
| Modes | DMX512/ILDA/master-slave/auto/sound activation |
| Movement | |
| Pan | 540° |
| Tilt | 270° |
| Resolution | 8/16 bit |
| Power supply | |
| Input voltage | AC 110-240 V,50/60 Hz |
| Power consumption | 150 W |
| Connections | |
| DMX512 | XLR 3-pin in/out |
| ILDA | DB-25 in/out |
| Power | powerCON in/out |
| Package contains | |
| Moving head | 1 pc |
| Power cord | 1 pc |
| Signal cord | 1 pc |
| Mounting bracket | 2 pcs |
| User manual | 1 pc |
| Dimentions | |
| Fixture | 285x215x440 mm |
| Carton | 350x385x490 mm |
| Weight | |
| N.W. | 7.3 kg |
| G.W. (carton) | 9.8 kg |
