Brand: Pro Lux
Category: Moving Heads FX

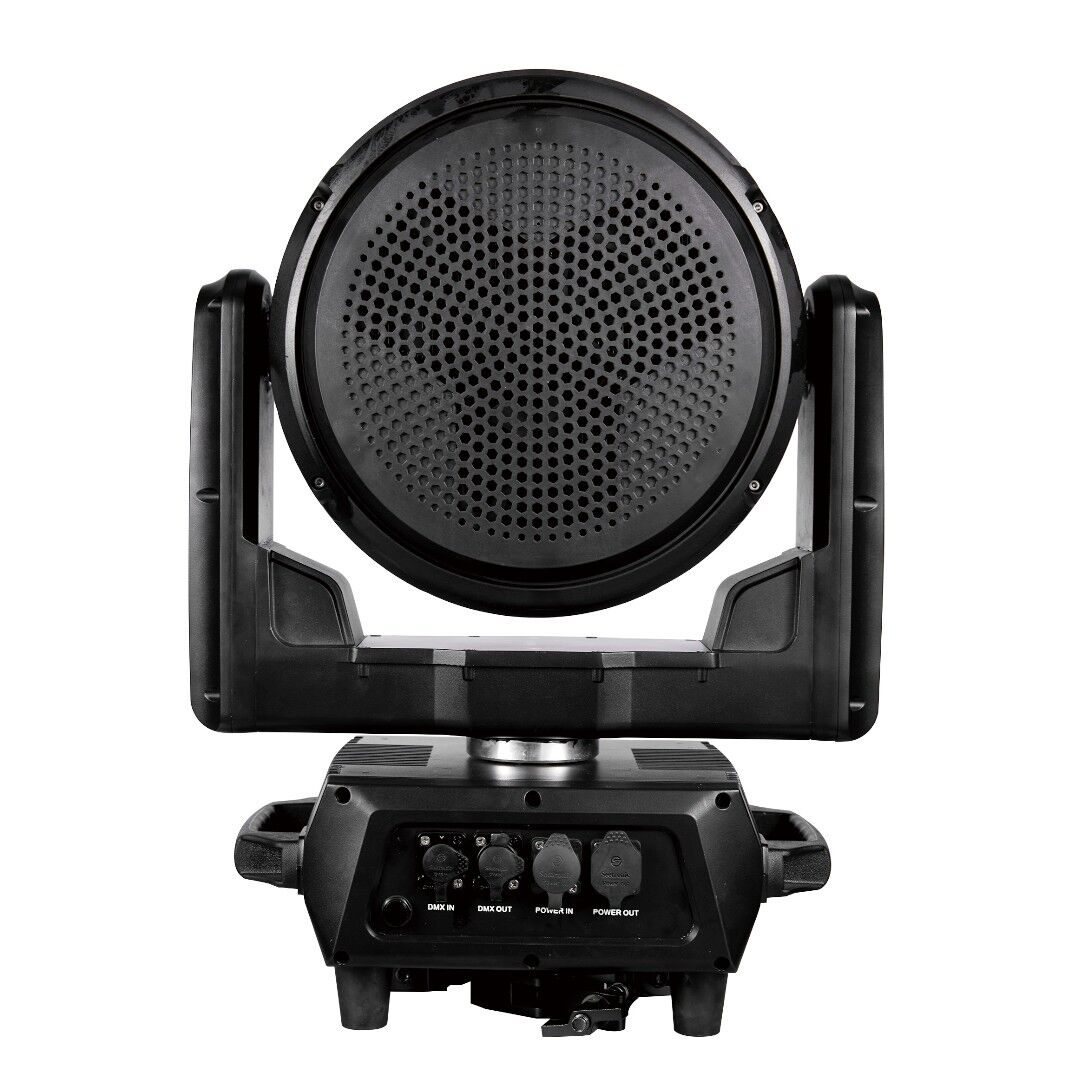

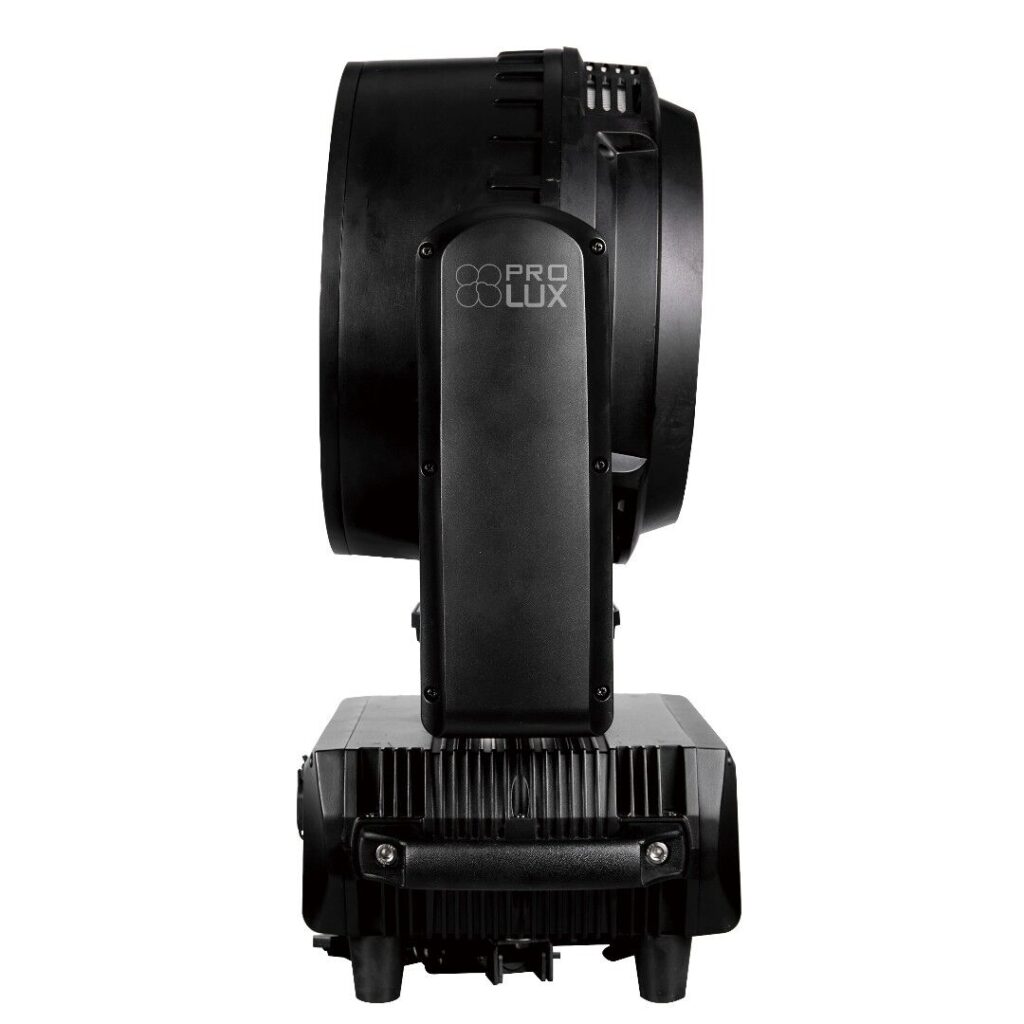

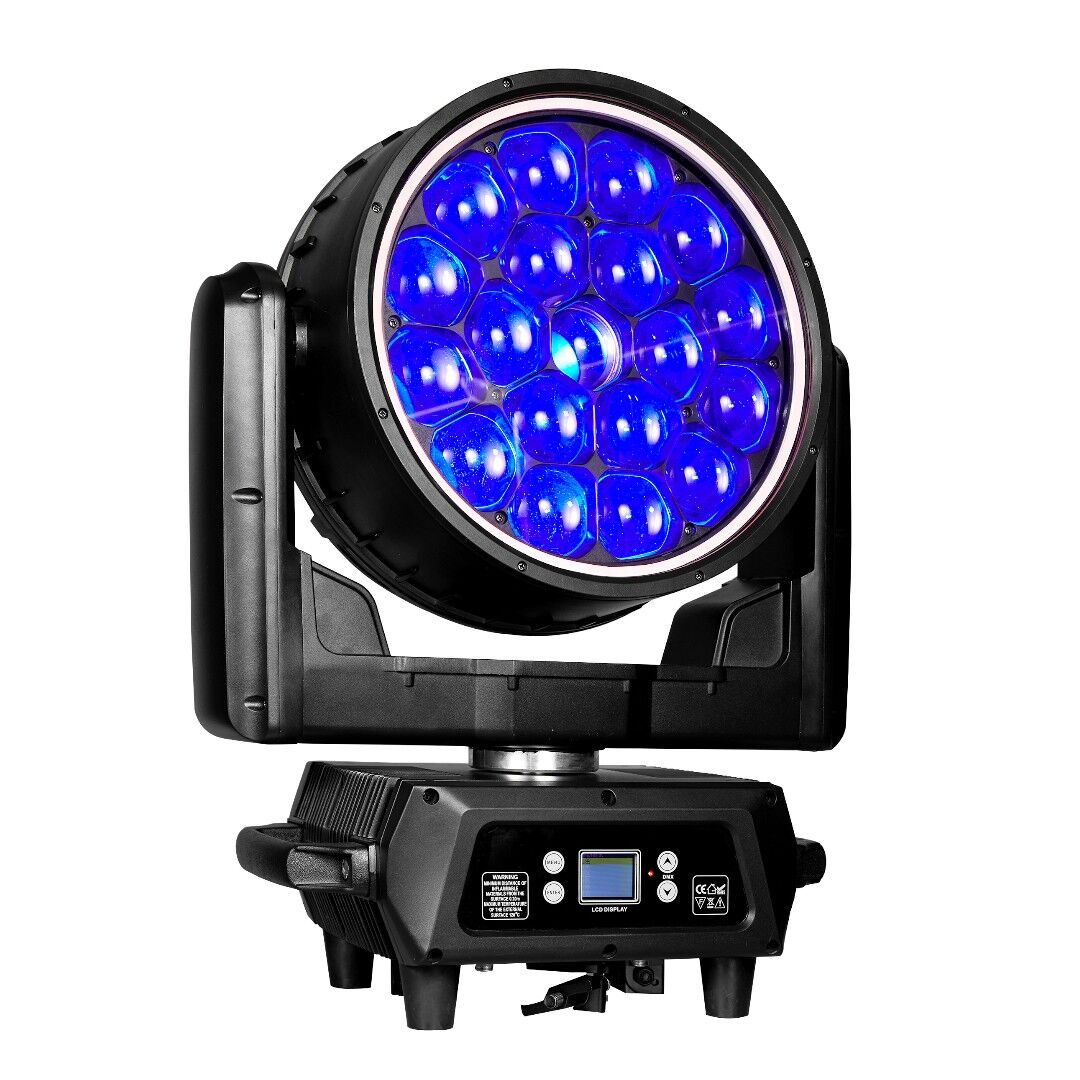

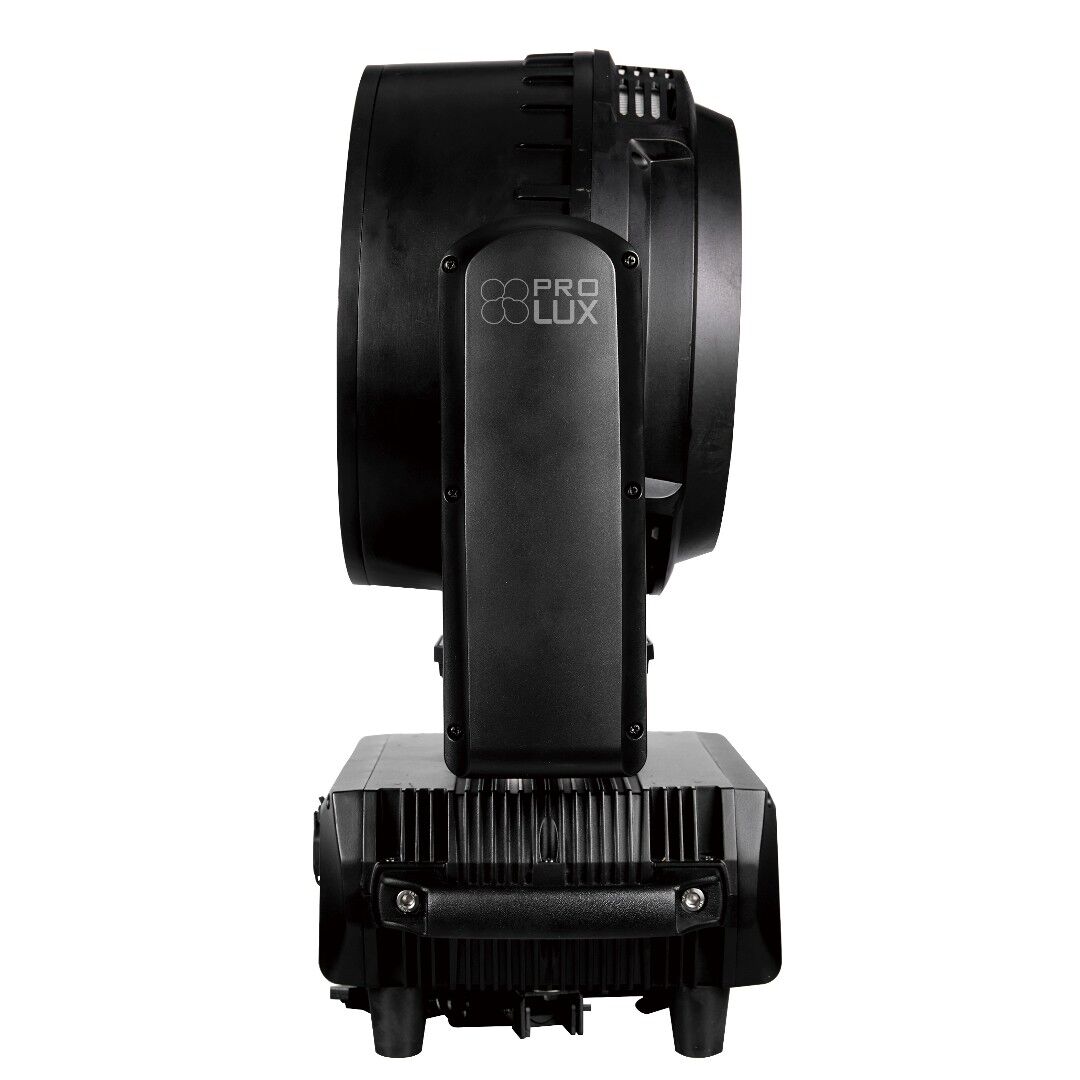

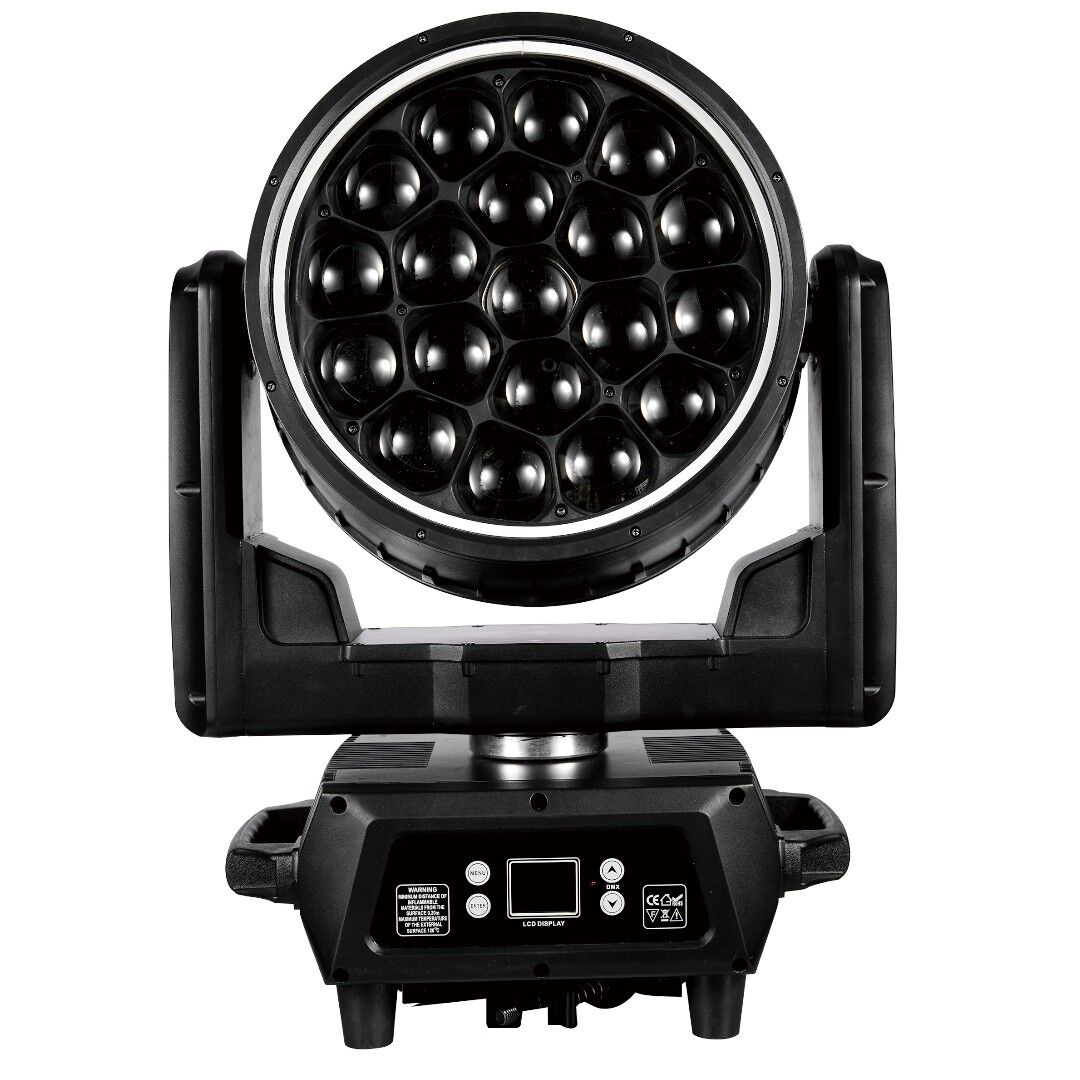

PRO LUX LED 1940IP BY
Multi-functional moving head used 19 LEDs 40W each with precise and saturated color. Fixture include such functions as Wash, Wash-beam and kaleidoscope due to double rotation lens. Wide adjustment range of beam angle, pixel-shaping and pixel-mapping provide unlimited possibilities for light show creation. Protection class IP65
| Source | |
| LED | 19 pcs 40W each RGBW 4-in-1 |
| Lifespan | 50 000 hours |
| Optical system | |
| Beam angle | 7° – 60° |
| Zoom | Linear motorized |
| Double rotation lens | |
| Functions | |
| Color mixing | RGBW |
| Available colors | Over 16 700 000 |
| Kaleidoscopic effect | |
| Linear colorchanger | |
| Pixel shaping effects | Static and dynamic with adjustable speed |
| Pixel mapping | Indiviual control for each LED |
| CTO | |
| Strobe | Electrical 1-25 fps |
| Dimmer | Electrical 0-100% |
| Control | |
| Multifunctional LCD display | |
| DMX channels | 21/30/35/43/78/97 |
| Modes | DMX512/master-slave/auto/sound activation |
| Movement | |
| Pan | 540° |
| Tilt | 220° |
| Resolution | 8/16 bit |
| Lens rotation | Unlimided in both directions |
| Power supply | |
| Input | AC 110-240 V,50/60 Hz |
| Total power | 780 W |
| Connections | |
| DMX512 | Neutric XLR 3-pin in/out, XLR 5-pin in/out |
| Power | powerCON in/out |
| Protection class | IP65 |
| Package contains | |
| Product | 1 pc |
| Power cord | 1 pc |
| Signal cord | 1 pc |

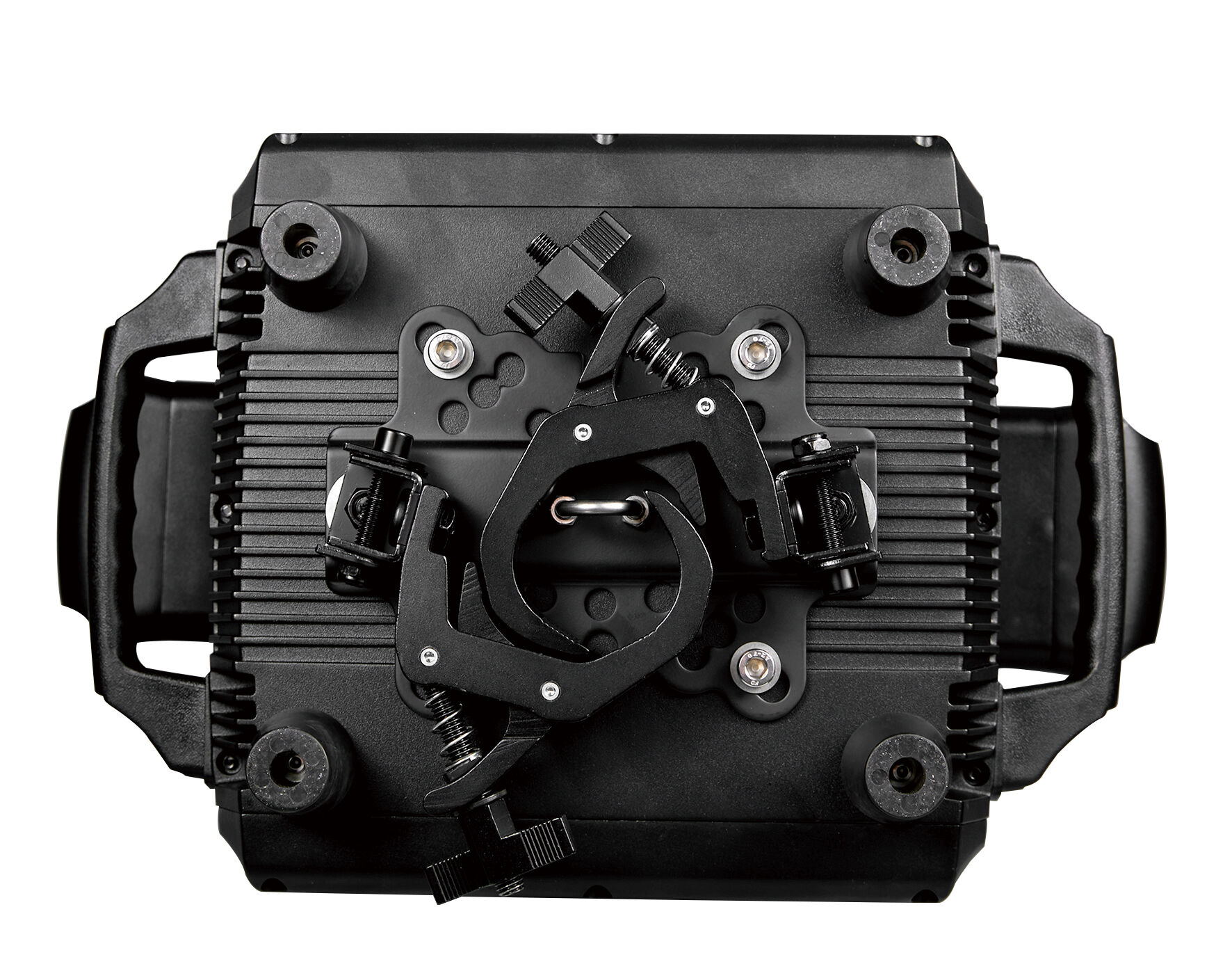

| Mounting bracket | 2 pcs |
| User manual | 1 pc |
| Size | |
| Product | 430x430x590 mm |
| Carton | 610x540x440 mm |
| Weight | |
| N.W. | 23 kg |
| G.W. (carton) | 26.4 kg |
