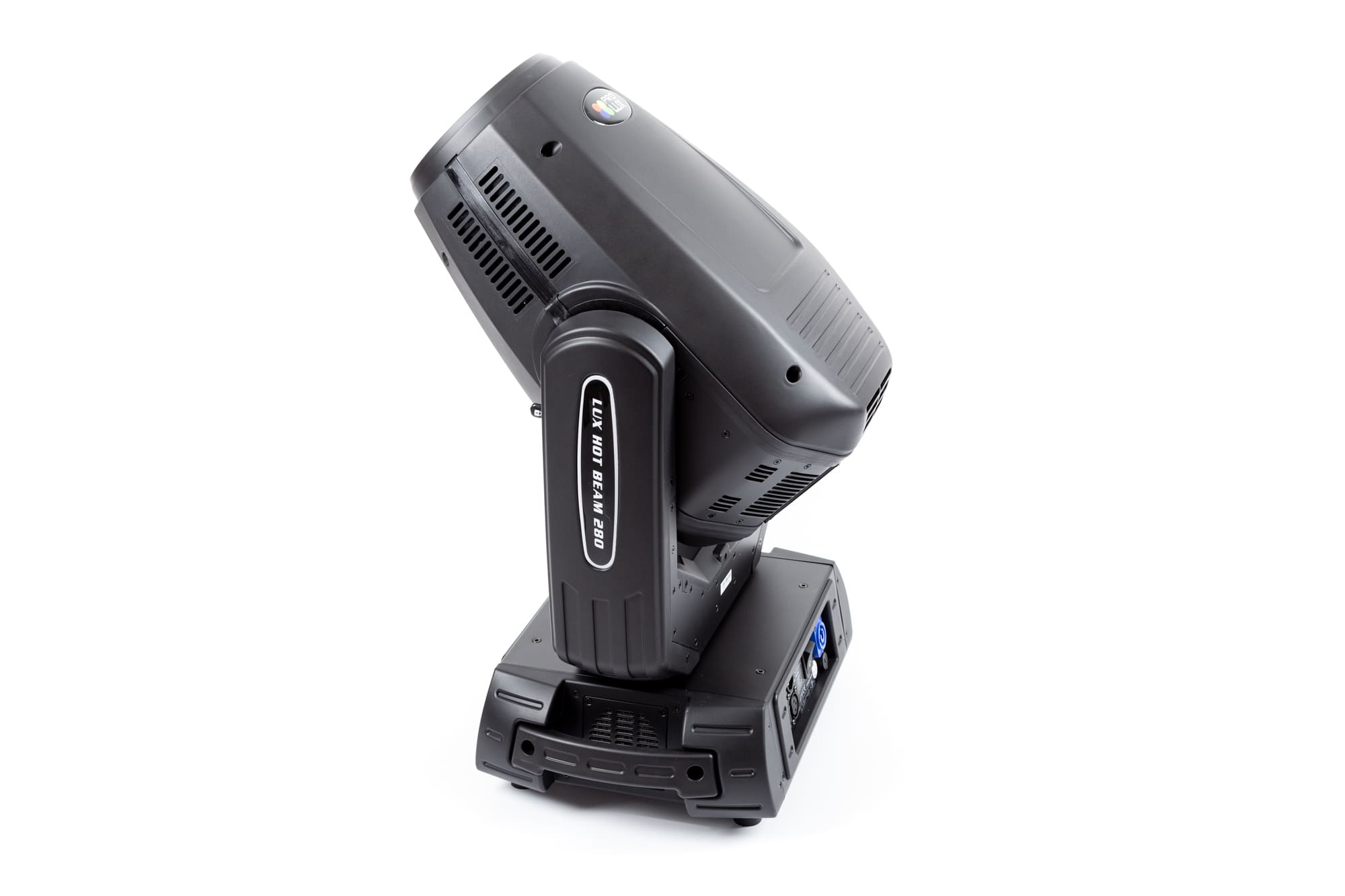

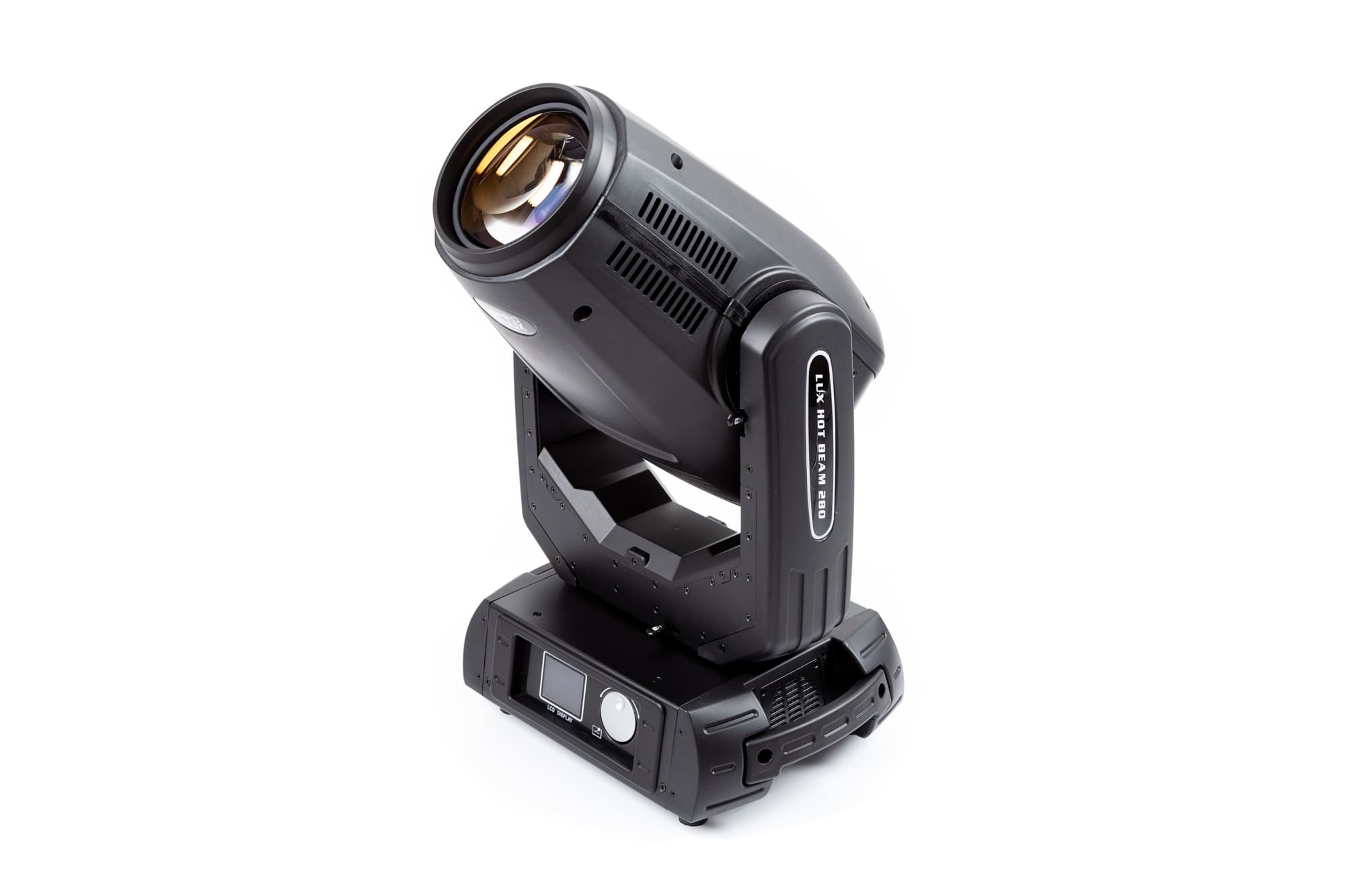

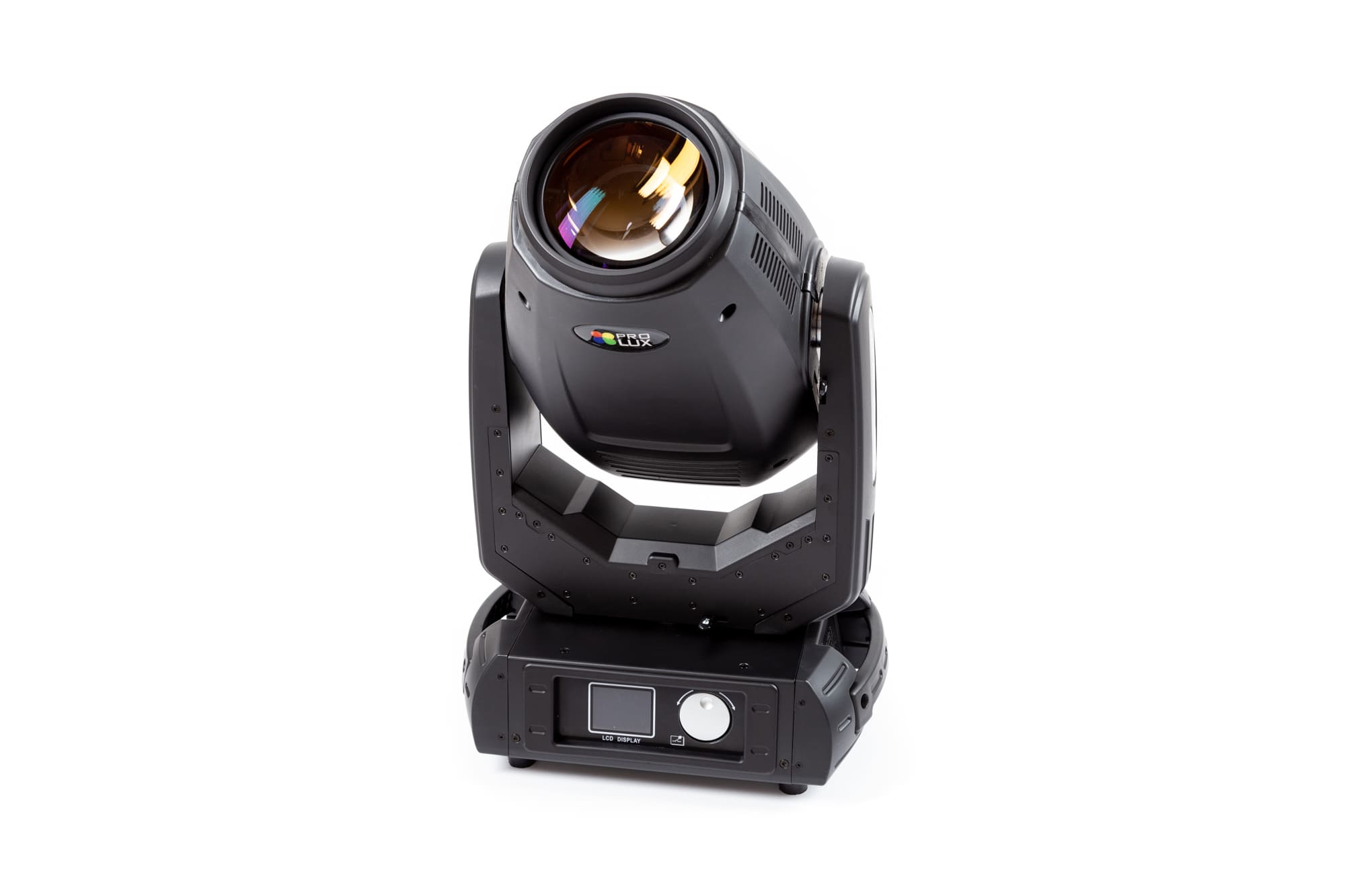

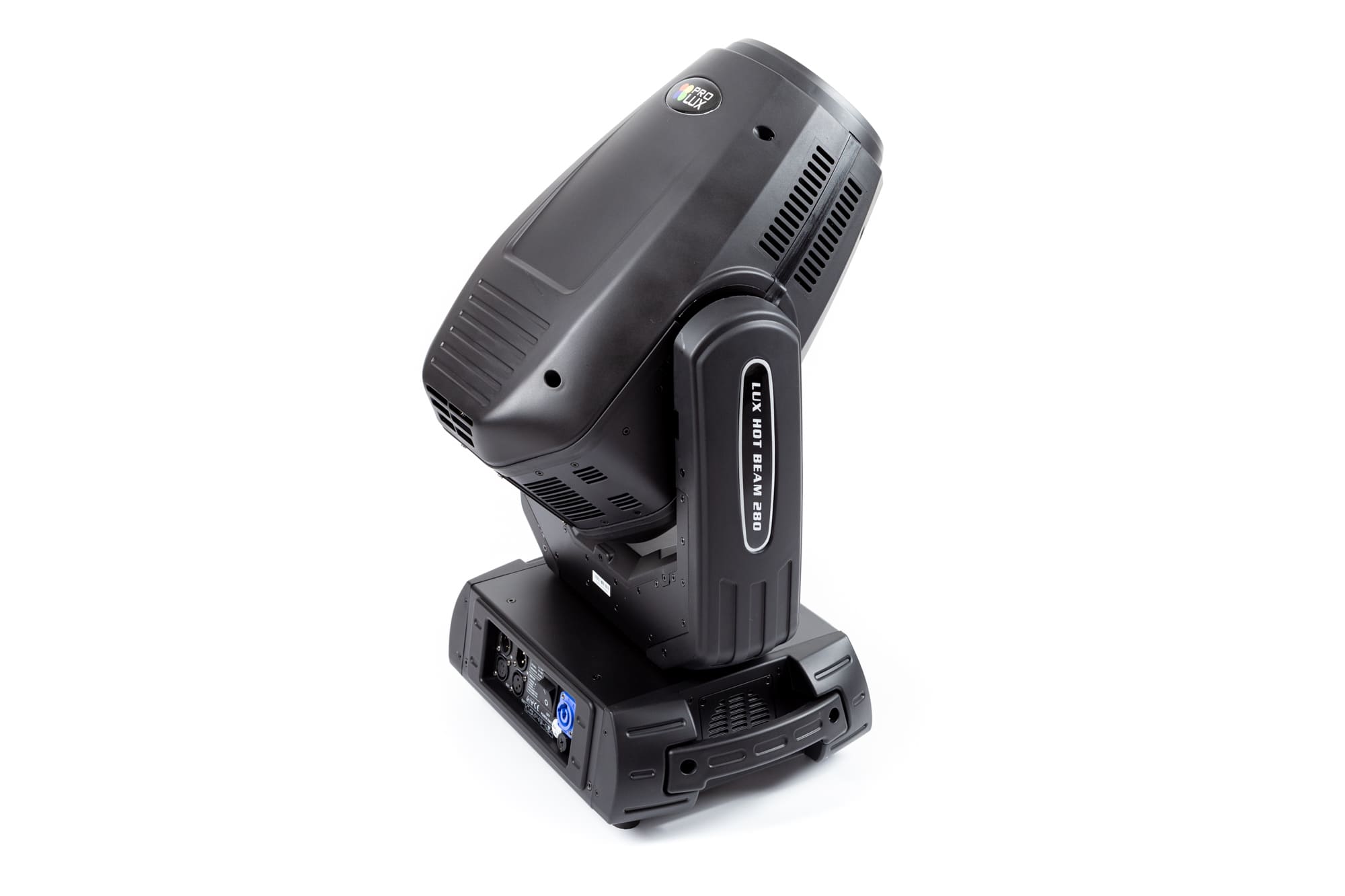

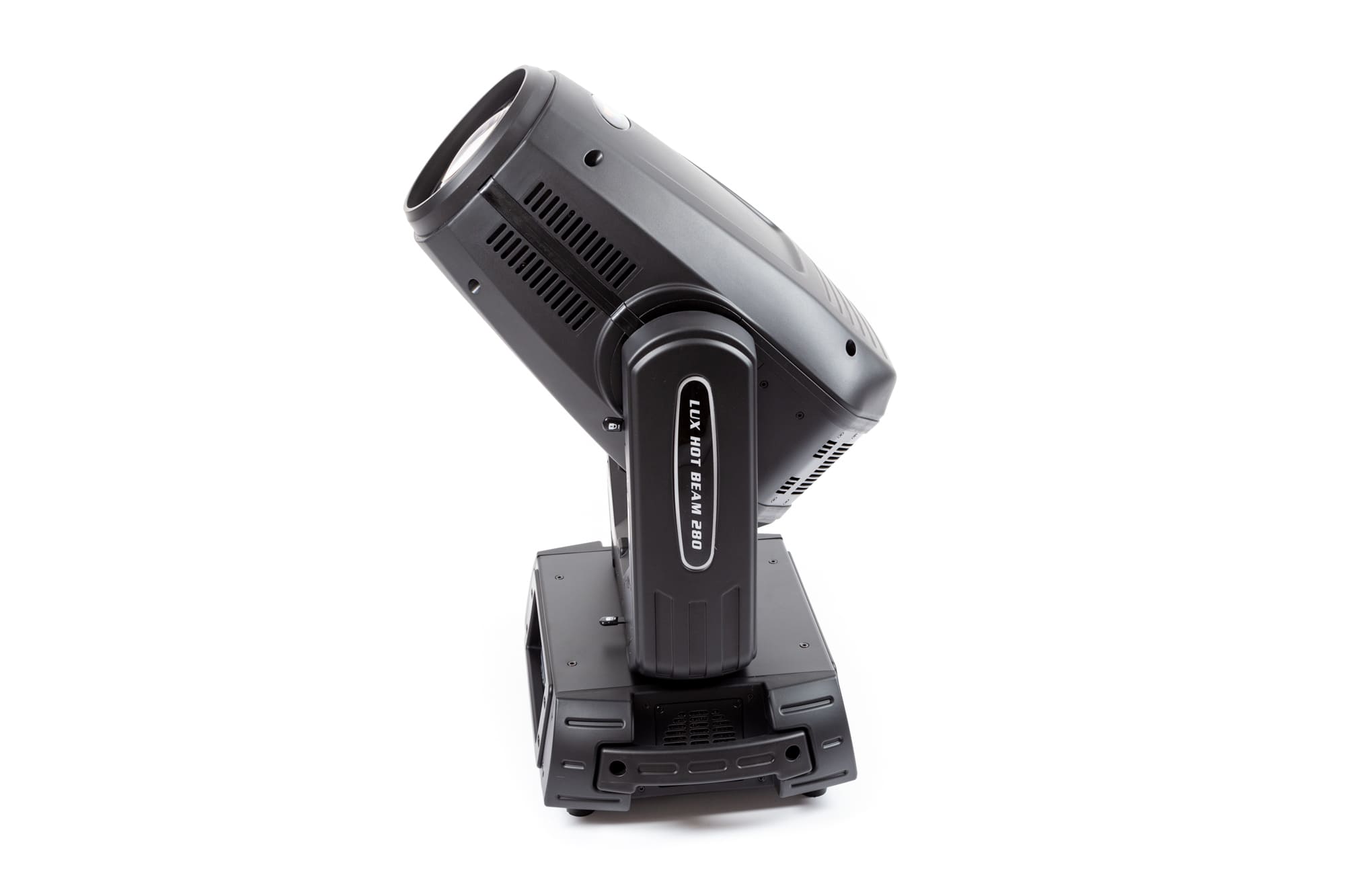

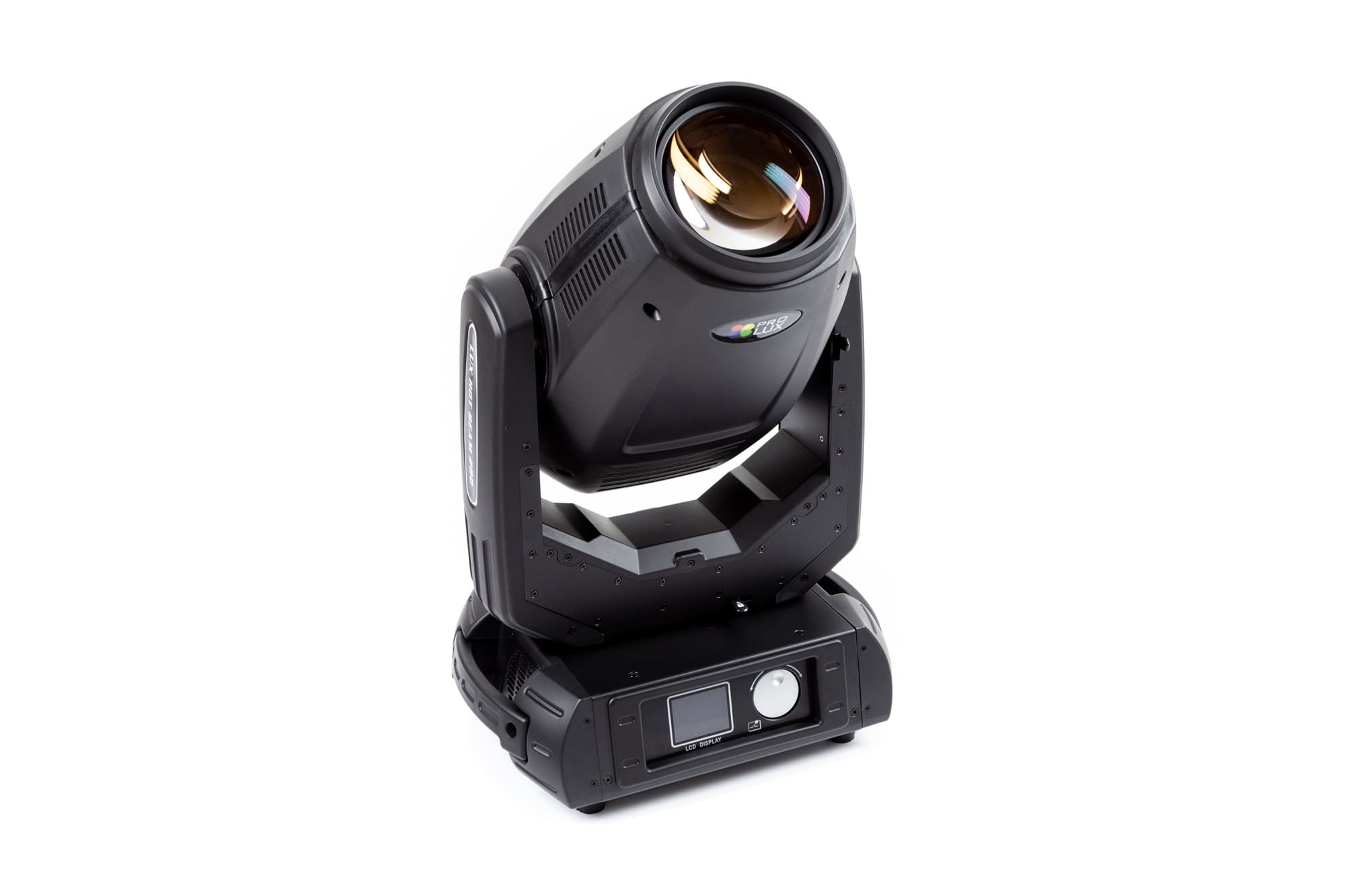

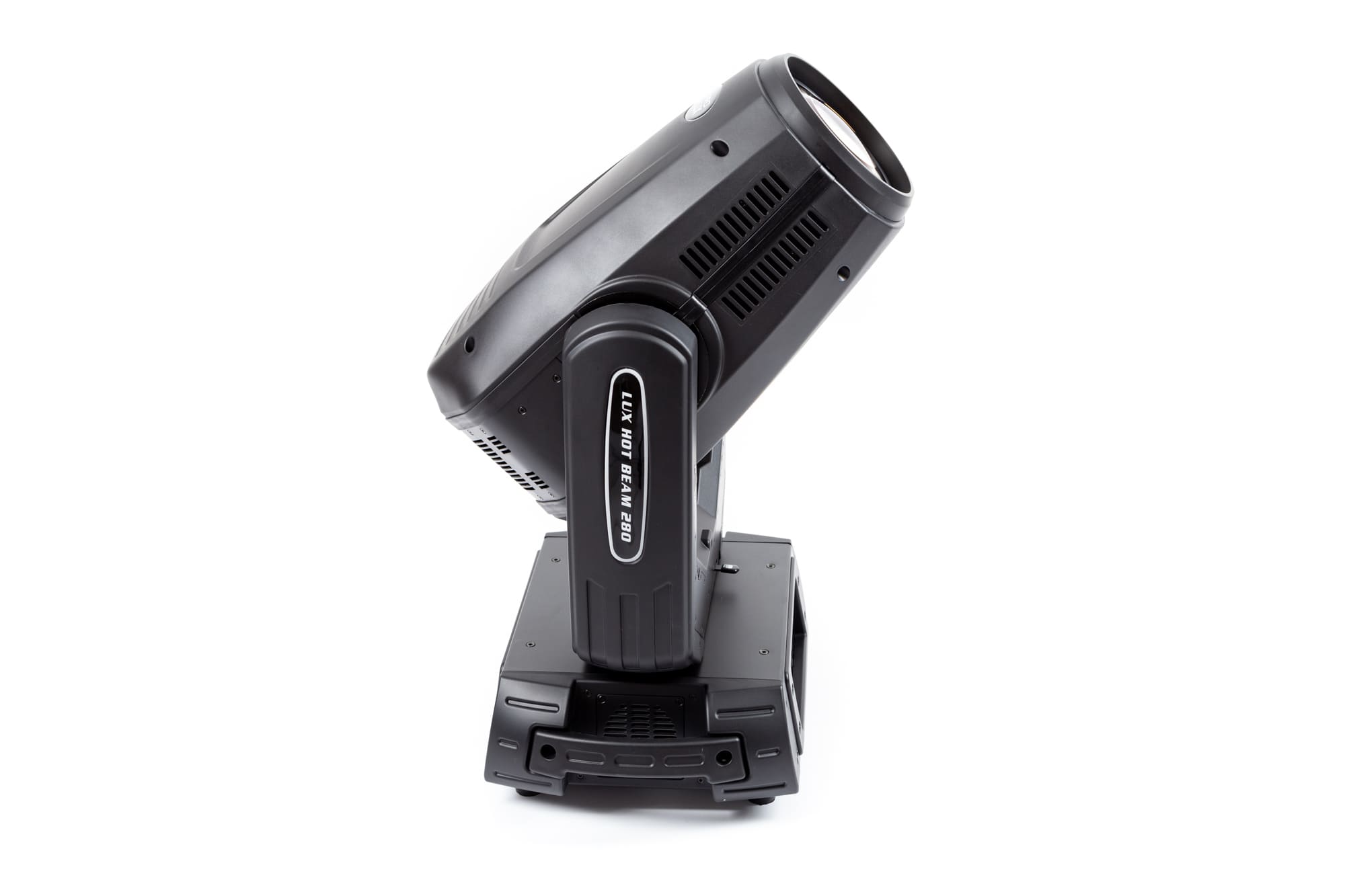

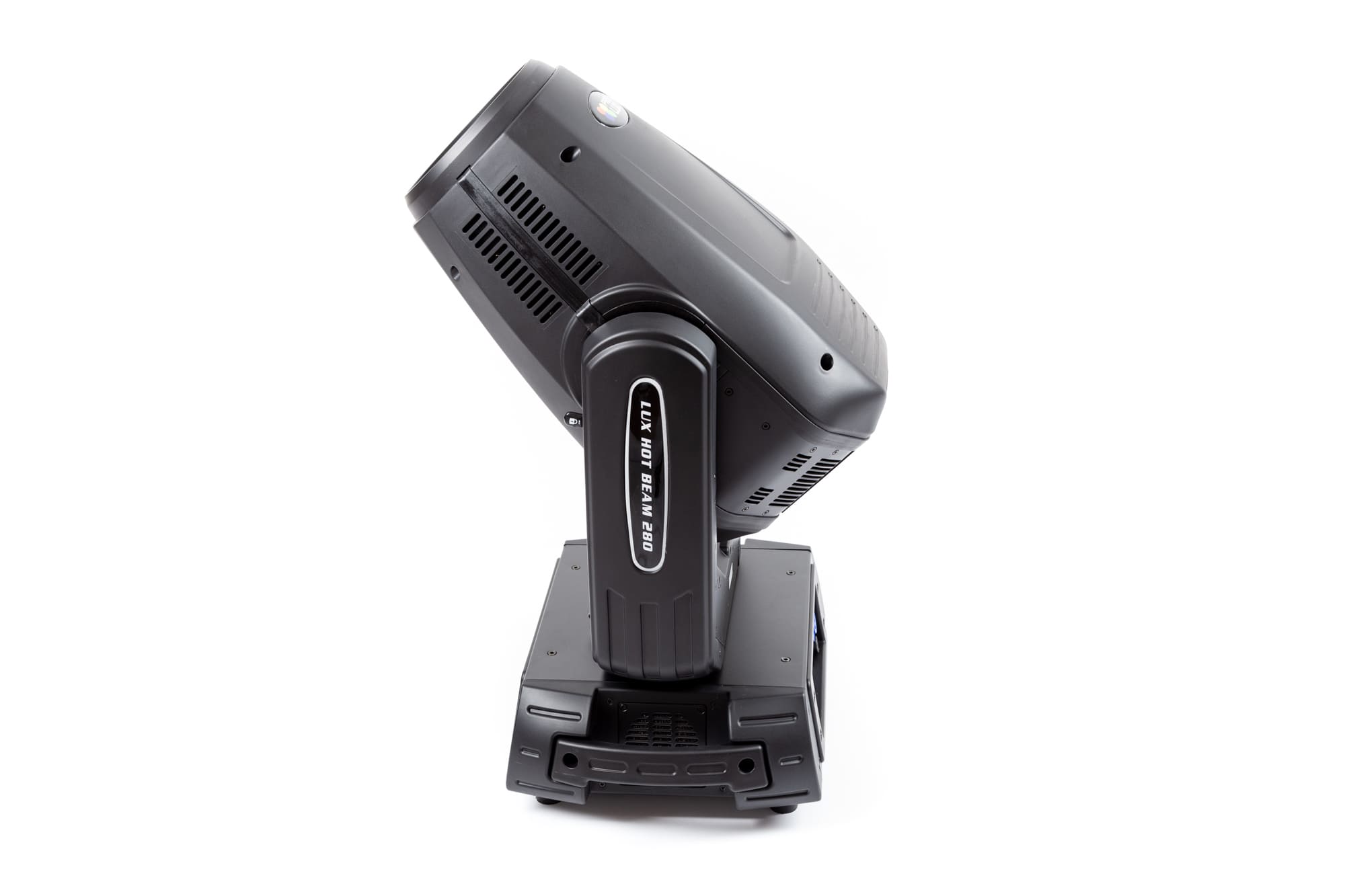

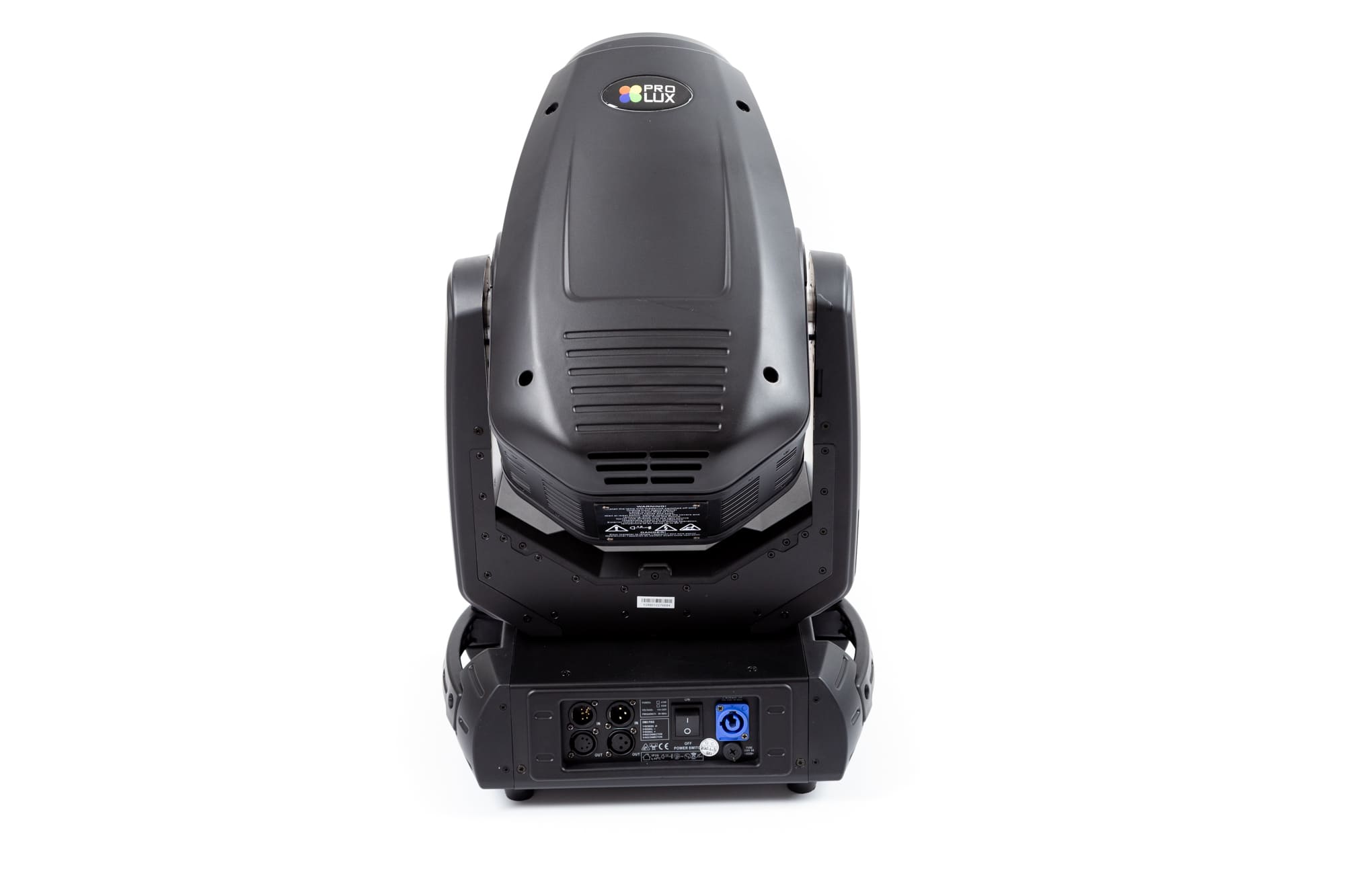

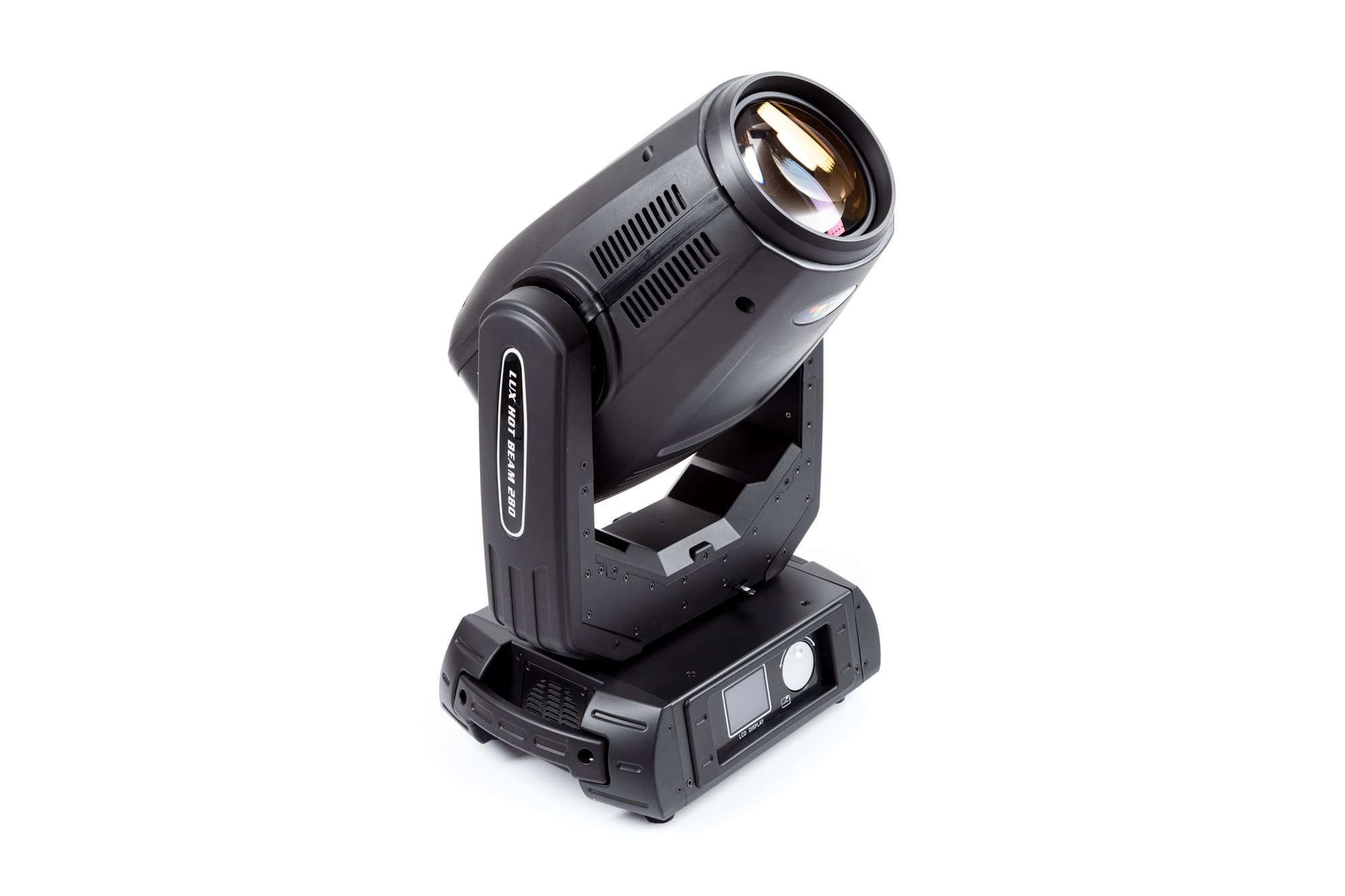

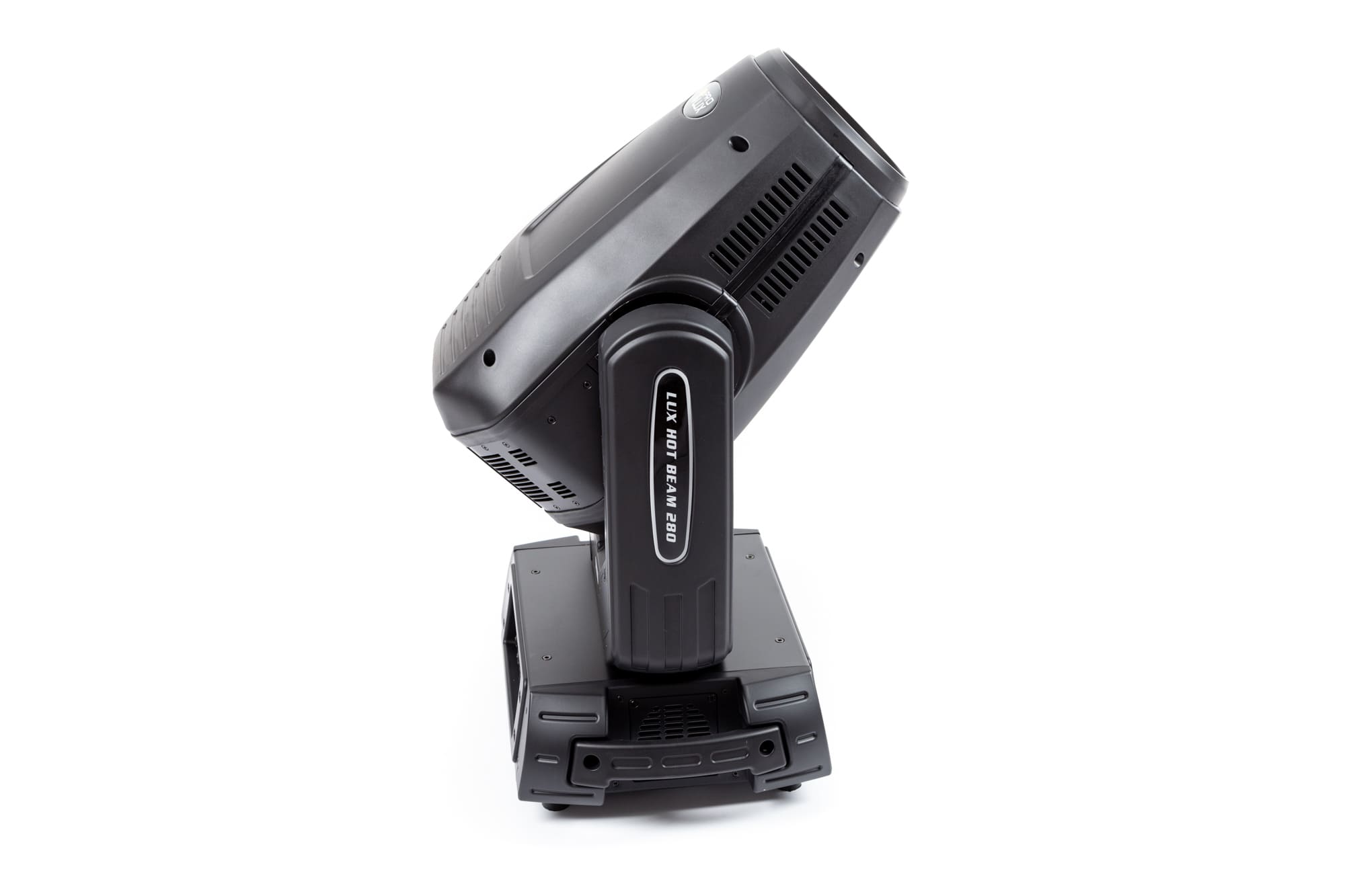

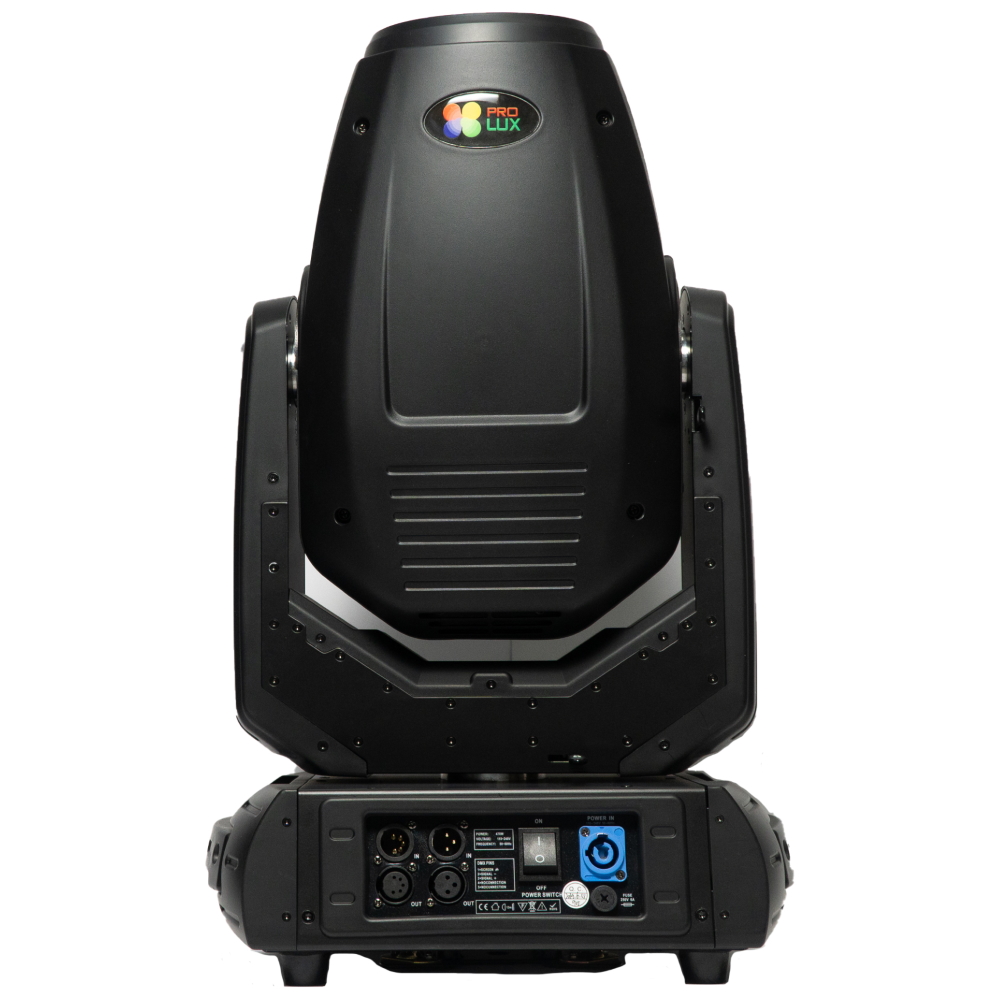

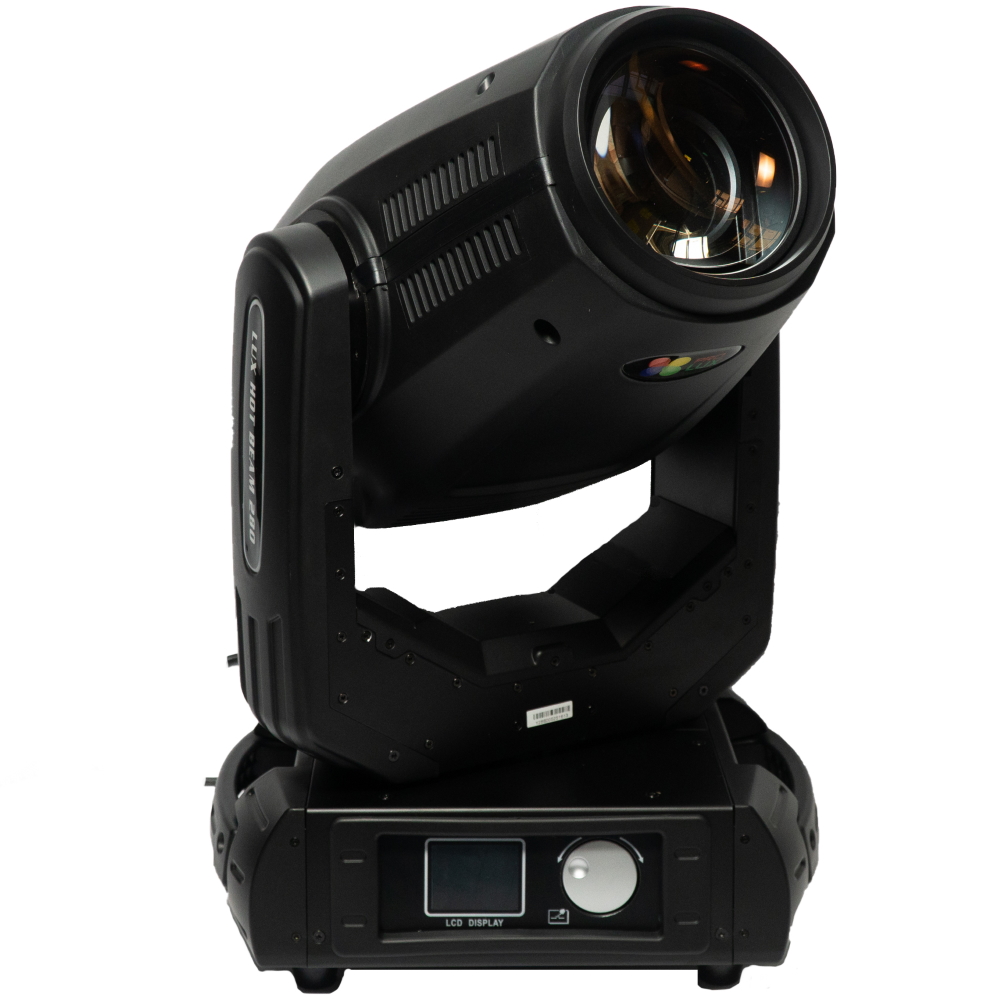

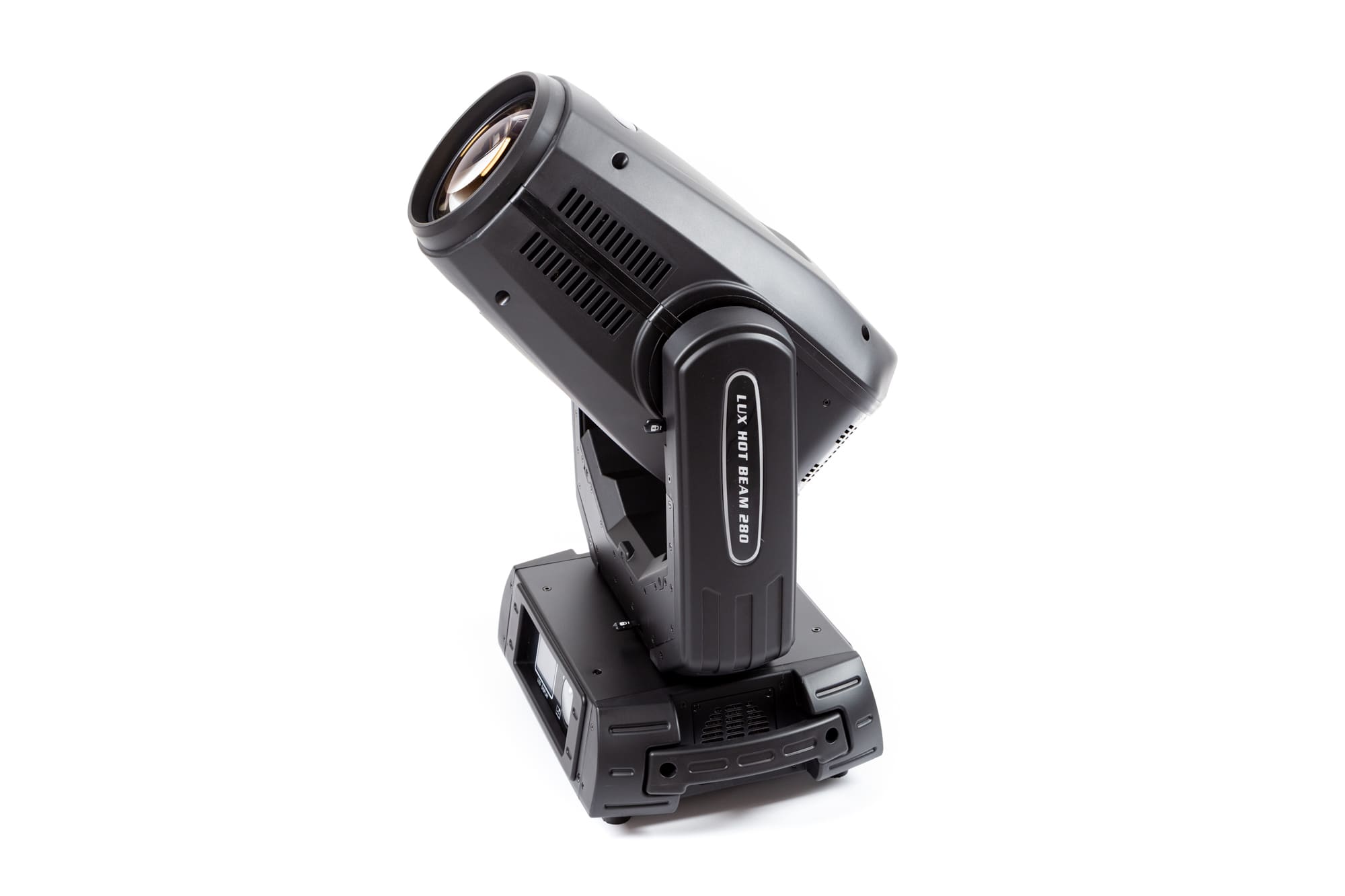

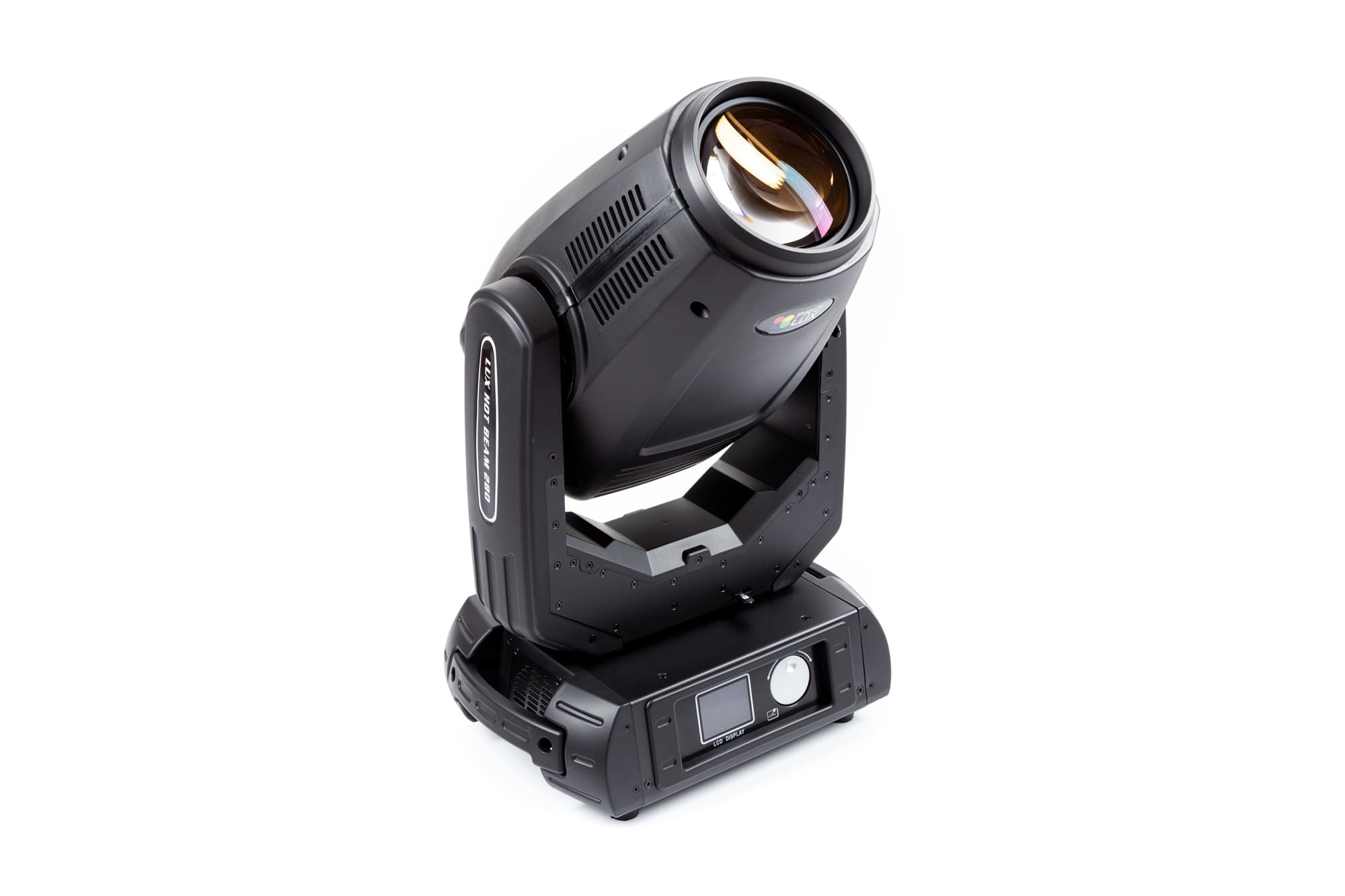

PRO LUX HOT BEAM 280
Hybrid 3-in-1 moving head with functions of all main classes as BEAM, SPOT and WASH. For key parts of fixture there are used spares such as lens, color wheel and gearwheels from european manufacturers. This head can be best choise for theatrical stage and for touring.
| Source | |
| Lamp | Discharge lamp YODN MSD 280R10 |
| Lifespan | 2000 hours |
| Color temperature | 7800 K |
| Optical system | |
| Luminous flux | 11 000 lm |
| Illuminance | 96 000 lux @ 2.5°, 6 m |
| Beam angle (beam mode) | 2.5° – 10° |
| Beam angle (spot mode) | 5° – 20° |
| Zoom | Linear motorized |
| Focus | Linear motorized |
| Functions | |
| Color wheel | 13 colors + open |
| Gobo wheel 1 | 14 fixed gobos + open |
| Gobo wheel 2 | 9 rotation gobos + open |
| Gobo size | Gobo diameter 14.9 mm ,image diameter 13 mm |
| Prism | 6-faced linear and 8-faced circular rotating prisms |
| Frost-filter | |
| Strobe | Mechanical |
| Dimer | Mechanical 0-100% |
| Control | |
| Multifunctional LCD display | |
| DMX channels | 24/16 |
| Modes | DMX512/master-slave/auto |
| Movement | |
| Pan | 540° |
| Tilt | 270° |
| Resolution | 8/16 bit |
| Power supply | |
| Input | AC 110-240 V,50/60 Hz |
| Total power | 430 W |
| Connections | |
| DMX512 | XLR 3-pin in/out, XLR 5-pin in/out |
| Power | powerCON in |
| Package contains | |
| Moving head | 1 pc |
| Power cord | 1 pc |
| Signal cord | 1 pc |
| Mounting bracket | 2 pcs |
| User manual | 1 pc |
| Size | |
| Product | 382x365x587 mm |
| Flight case for 2 fixtures | 960x510x740 mm |
| Carton | 460x440x580 mm |
| Weight | |
| N.W. | 16 kg |
| G.W. (flight case 2 in1 ) | 73 kg |
| G.W. (carton) | 20 kg |
