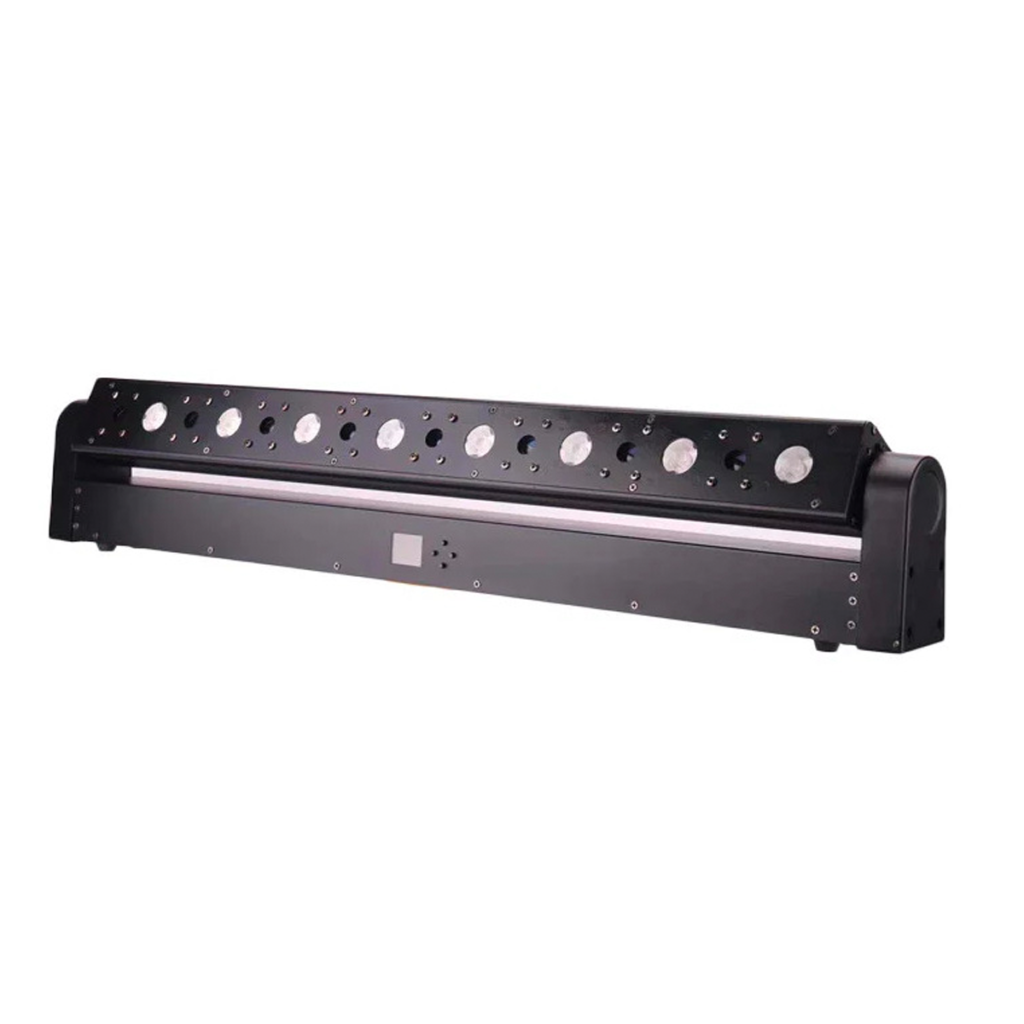

Free Color Laser Panel 8
Combined light fixture. 8 x 500mW red laser sources, 8 x 3W warm white LEDs. Tilt angle 220°. 7/18/24 DMX channels
| Source 1 | |
| Laser | 8 pcs 500mW 638nm each red |
| Source 2 | |
| LED | 8 pcs 3W each warm white |
| Lifespan | 100 000 hours |
| Beam angle | 8° |
| Functions | |
| Strobe | Electrical 1-20 fps |
| Dimer | Electrical 0-100% |
| Control | |
| Multifunctional LCD display | |
| DMX channels | 7/18/24 |
| Modes | DMX512/master-slave/auto/sound activation |
| Movement | |
| Tilt | 220° |
| Resolution | 8/16 bit |
| Power supply | |
| Input voltage | AC 110-240V ,50/60 Hz |
| Total power | 120W |
| Connections | |
| DMX512 | XLR 3-pin in/out |
| Power | powerCON in |
| Package contains | |
| Fixture | 1 pc |
| Power cord | 1 pc |
| powerCON | 1 pc |
| User manual | 1 pc |
| Dimentions | |
| Fixture | 1060x160x80 mm |
| Carton | 1120x220x160 mm |
| Weight | |
| N.W. | 7,2 kg |
| G.W. (carton) | 7,6 kg |
