Brand: Pro Lux
Category: Moving Heads FX

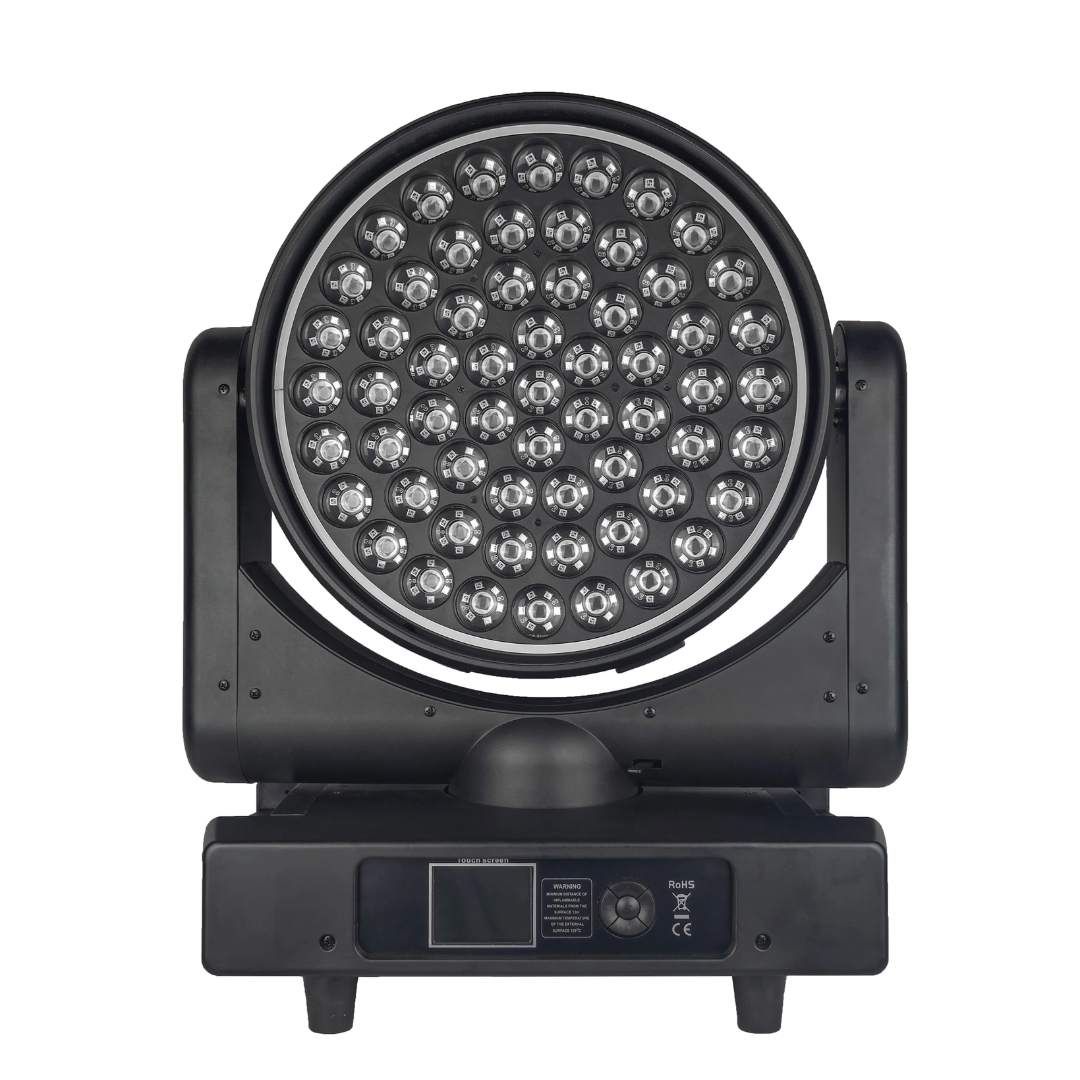

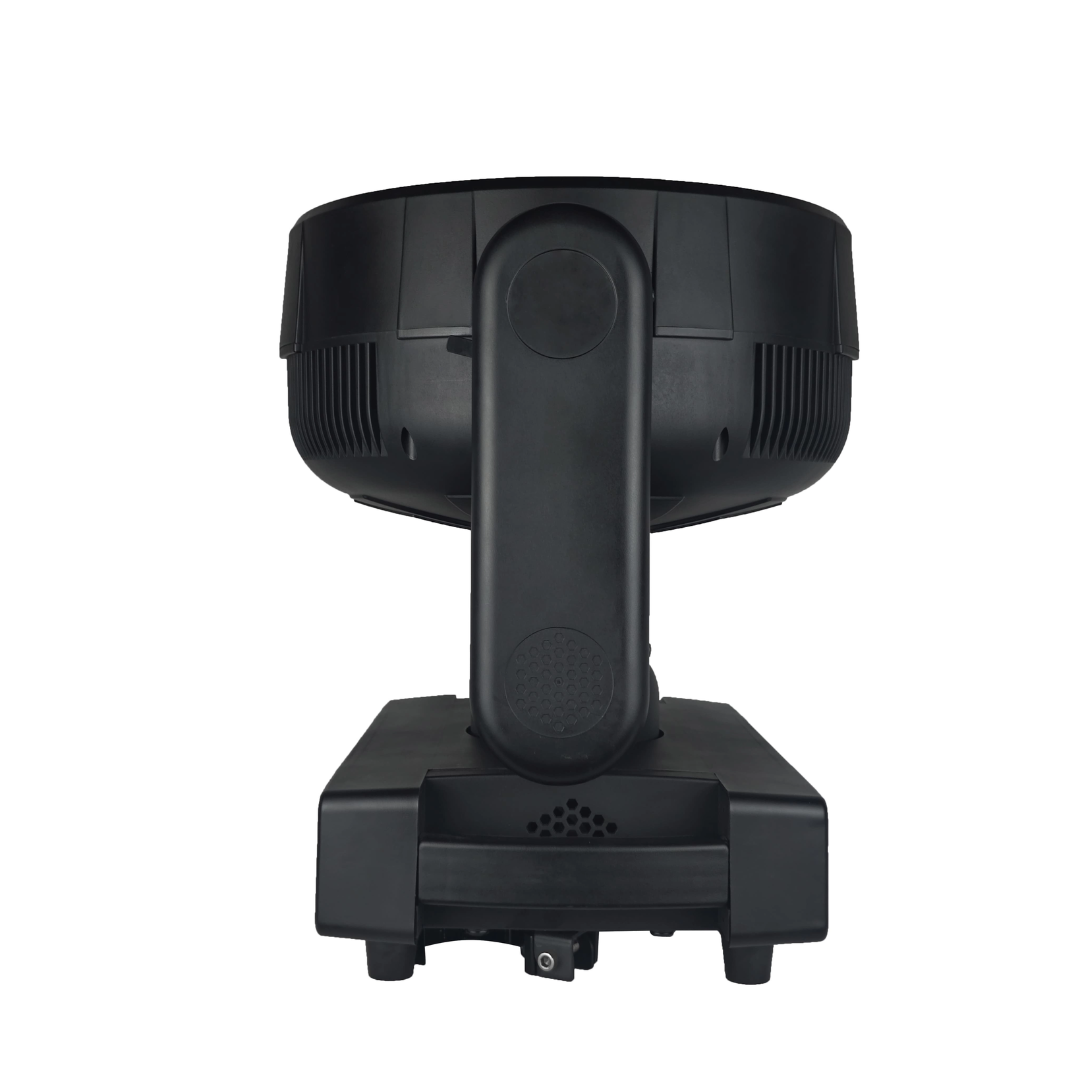

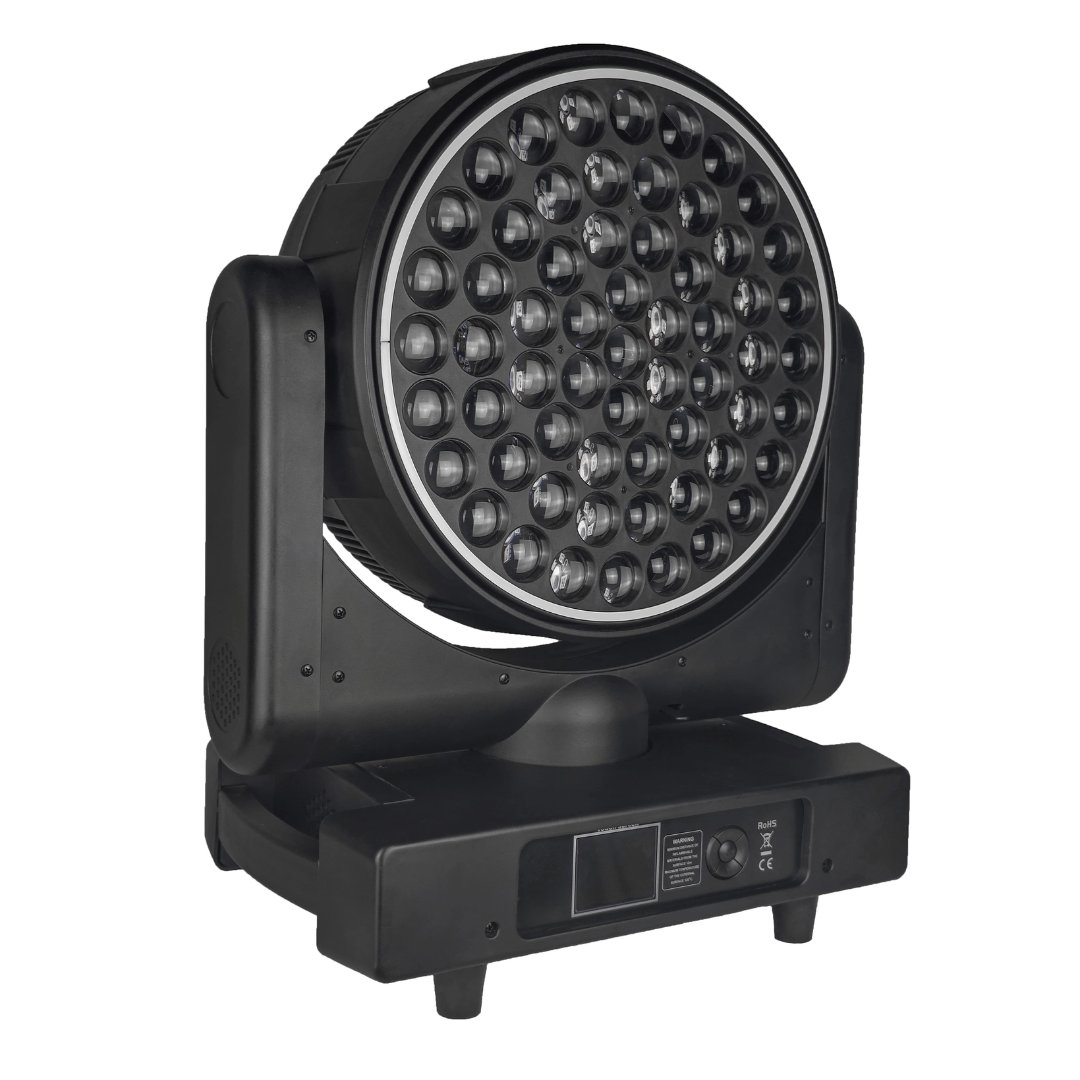

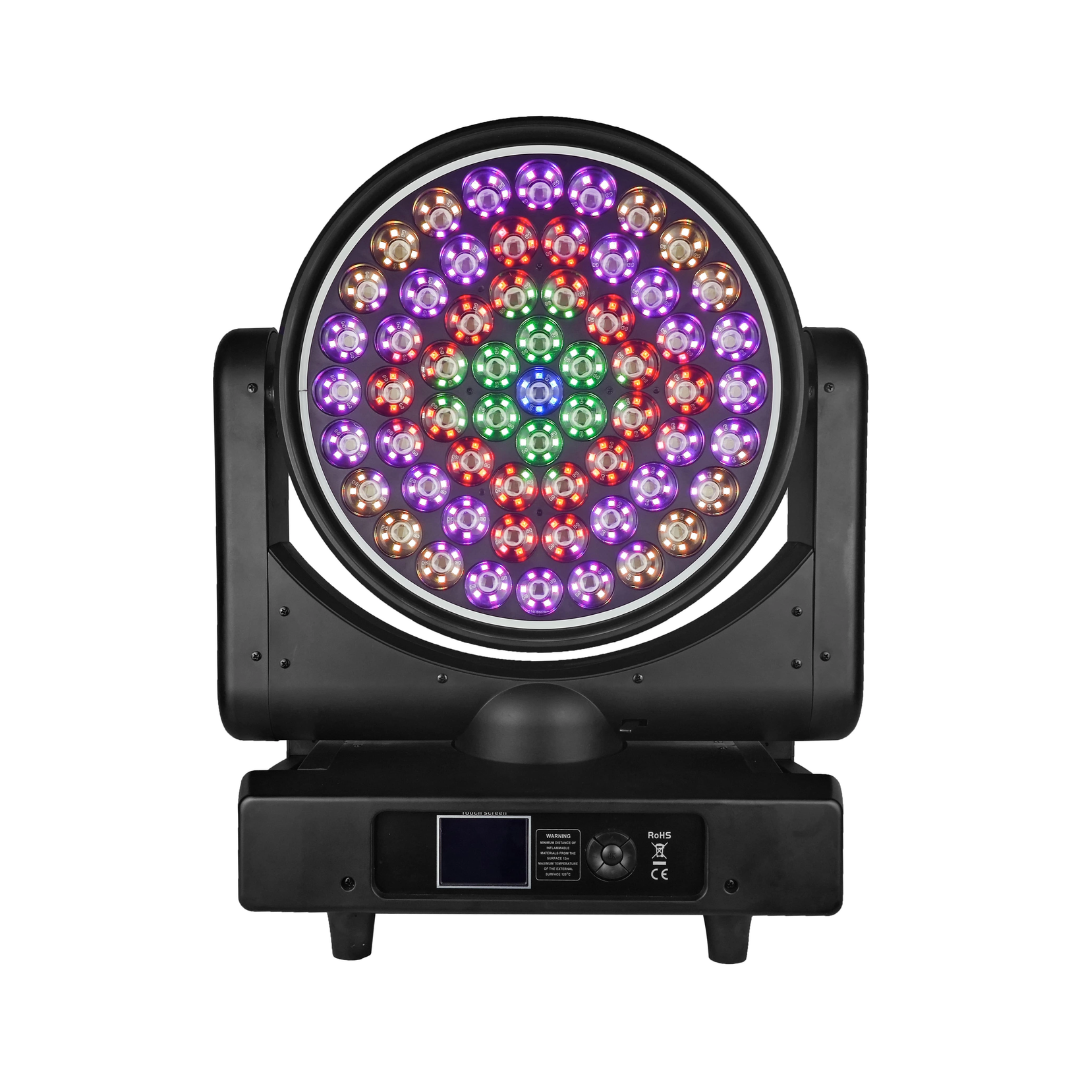

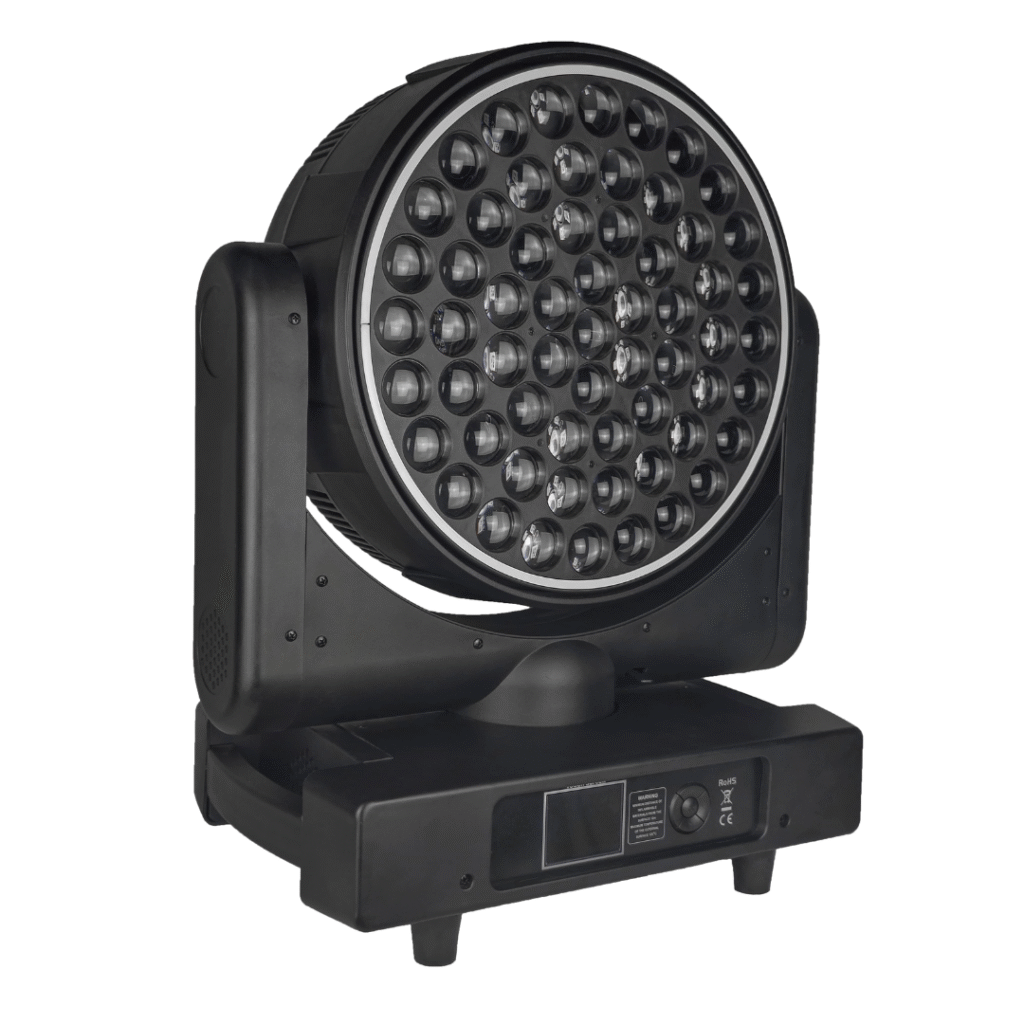

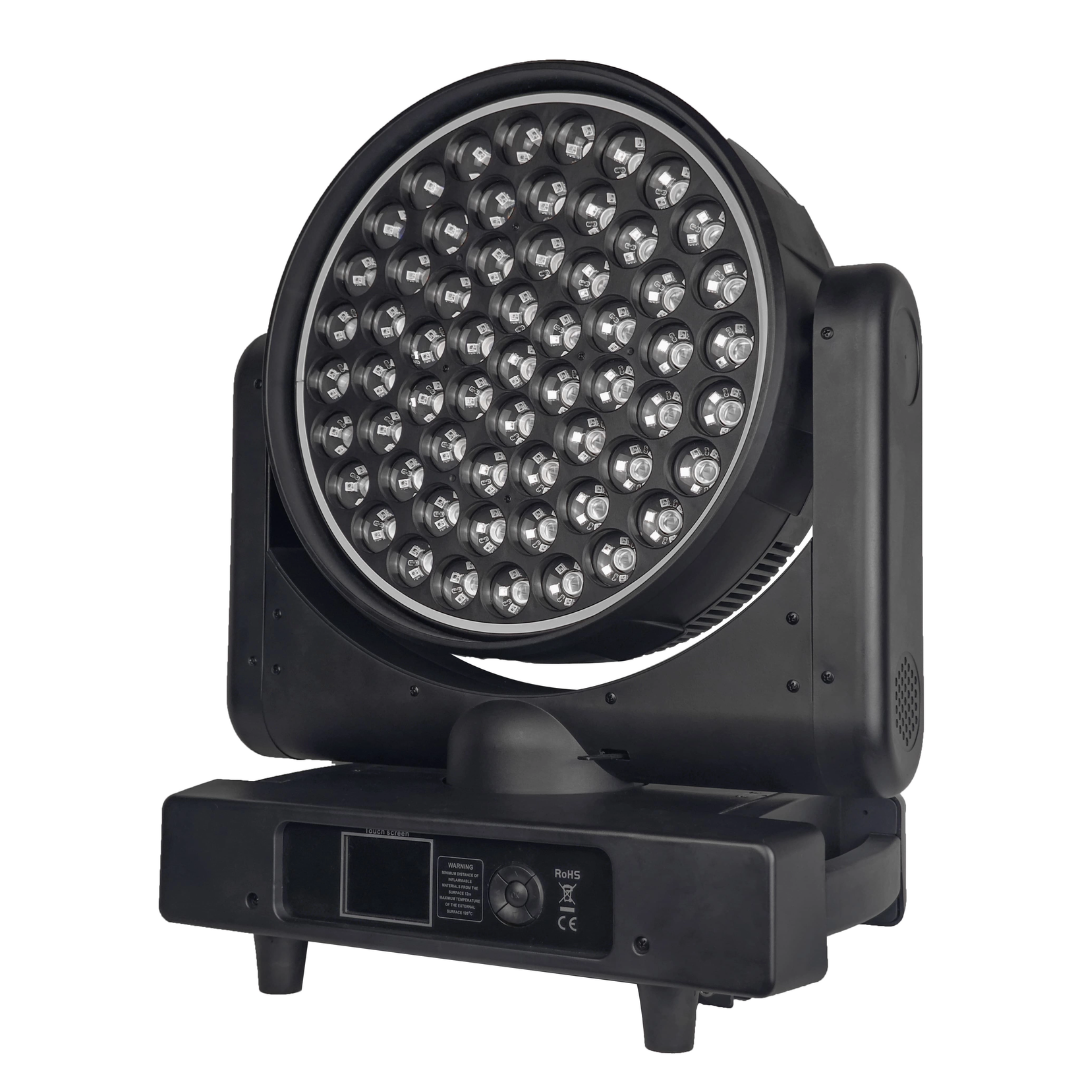

PRO LUX LED 6130 MISTERY
The WASH moving head features a unique pixel effect. In addition to 61 30W RGBW LEDs, the headlight also features 244 0.2W 3-in-1 LEDs, allowing you to create pixel and graphic animations, turning your light show into a truly magical experience. Five DMX modes, from a simple 21 channels to a maximum of 265 channels, provide complete control over your show. This moving spotlight is ideal for any concert, even the largest, and will also become an indispensable tool for lighting directors in both theaters and nightclubs.
| Source | |
| LED Effect light | 244 pcs each 0.2W RGB 3-in-1 |
| LED | 61 pcs each 30W RGBW 4-in-1 |
| Lifespan | 50 000 hours |
| Optical system | |
| Beam angle | 13° – 52° |
| CRI | >75Ra |
| Double rotation lens | |
| Functions | |
| Color mixing | RGBW |
| Available colors | Over 16 700 000 |
| Kaleidoscopic effect | |
| Linear colorchanger | |
| Pixel shaping effects | Static and dynamic with adjustable speed |
| Pixel mapping | Indiviual control for each LED |
| CTO | |
| Strobe | Electrical 1-25 fps |
| Dimer | Electrical 0-100% |
| Control | |
| Multifunctional LCD display | |
| DMX channels | 21/49/204/232/265 |
| Modes | DMX512/master-slave/auto/sound activation |
| Movement | |
| Pan | 540° |
| Tilt | 250° |
| Resolution | 8/16 bit |
| Lens rotation | Unlimided in both directions |
| Power supply | |
| Input | AC 110-240 V,50/60 Hz |
| Total power | 1850 W |
| Connections | |
| DMX512 | XLR 3-pin in/out |

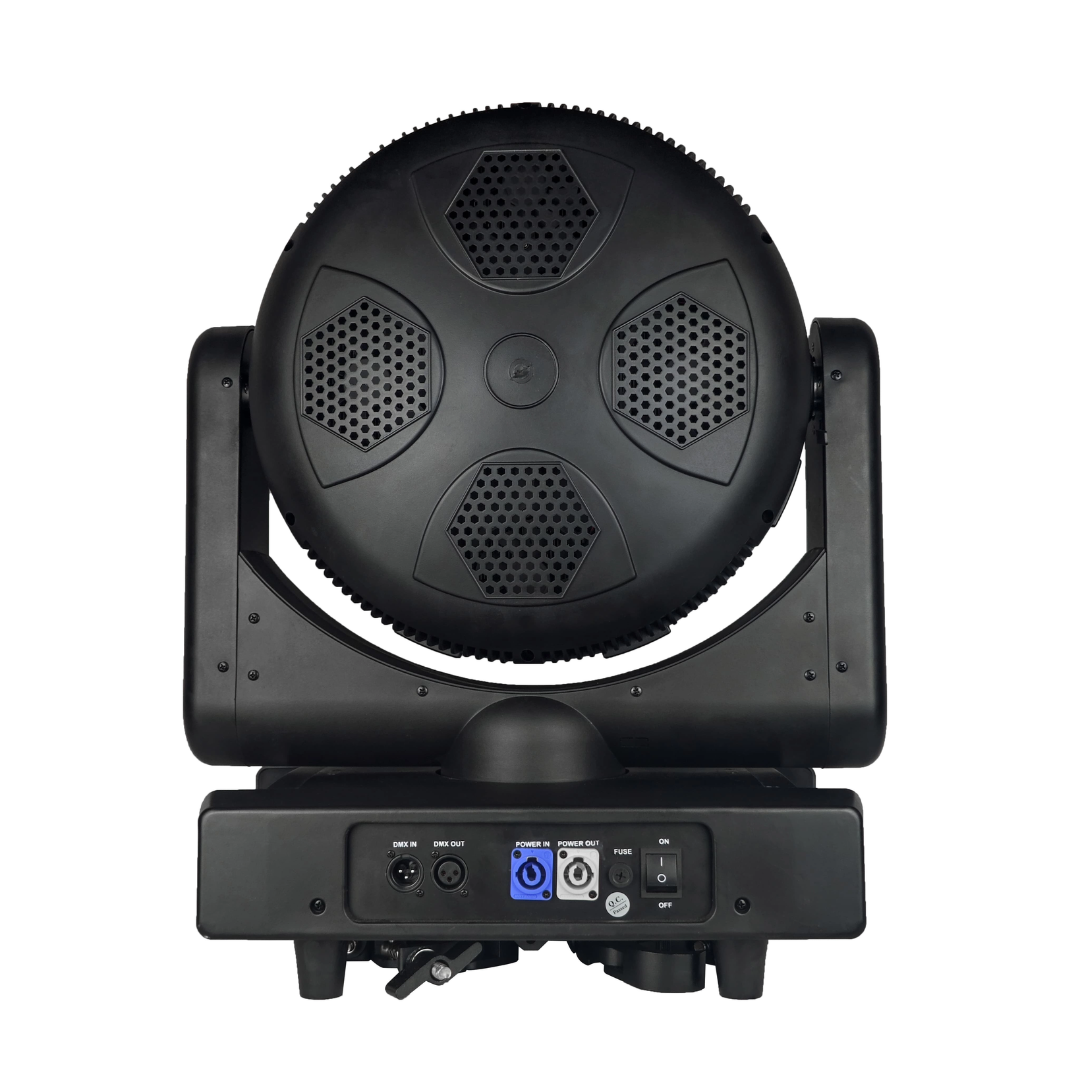

| Power | powerCON in/out |
| Package contains | |
| Product | 1 pc |
| Power cord | 1 pc |
| Signal cord | 1 pc |
| Mounting bracket with clamps | 2 pcs |
| User manual | 1 pc |
| Size | |
| Product | 496x292x599 mm |
| Carton | 615х615х540 mm |
| Weight | |
| N.W. | 23.7 kg |
| G.W. (carton) | 27.4 kg |
