Brand: Free Color
Category: Dmx controllers

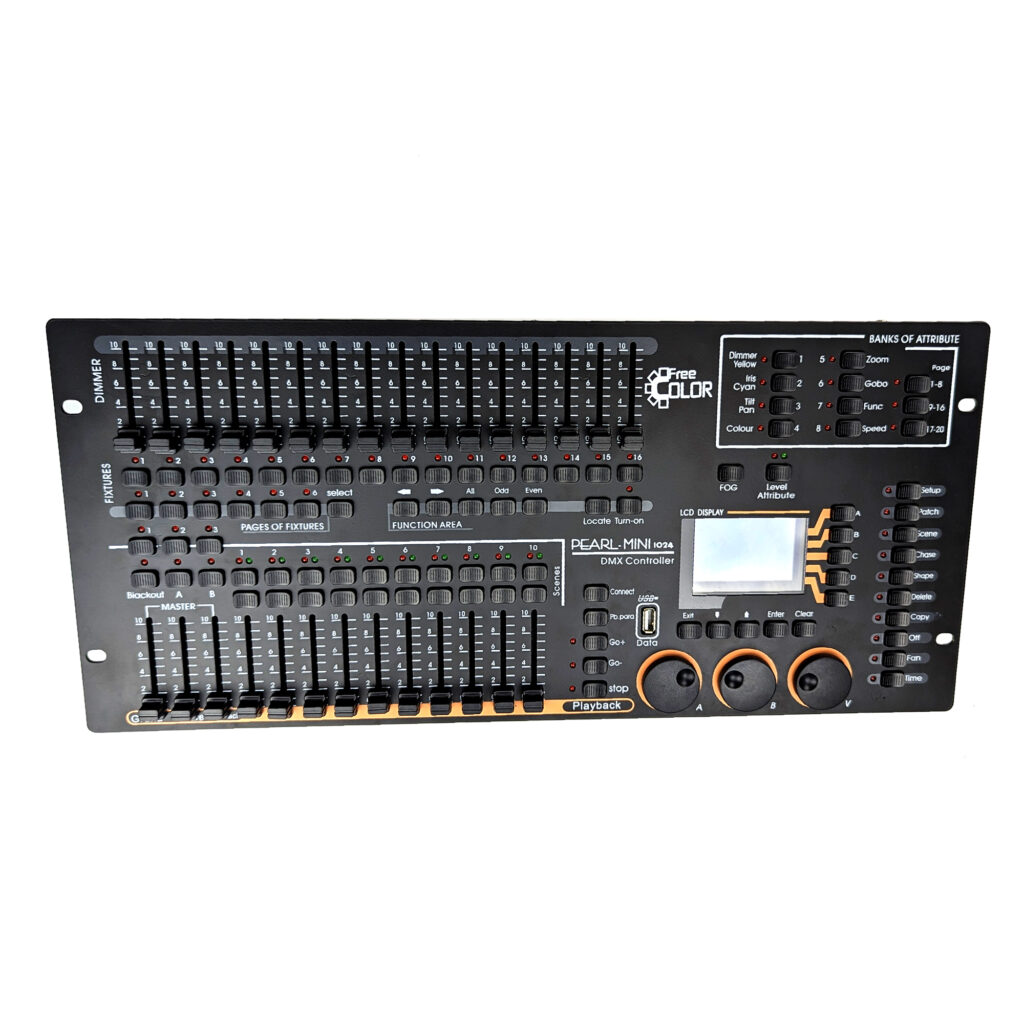

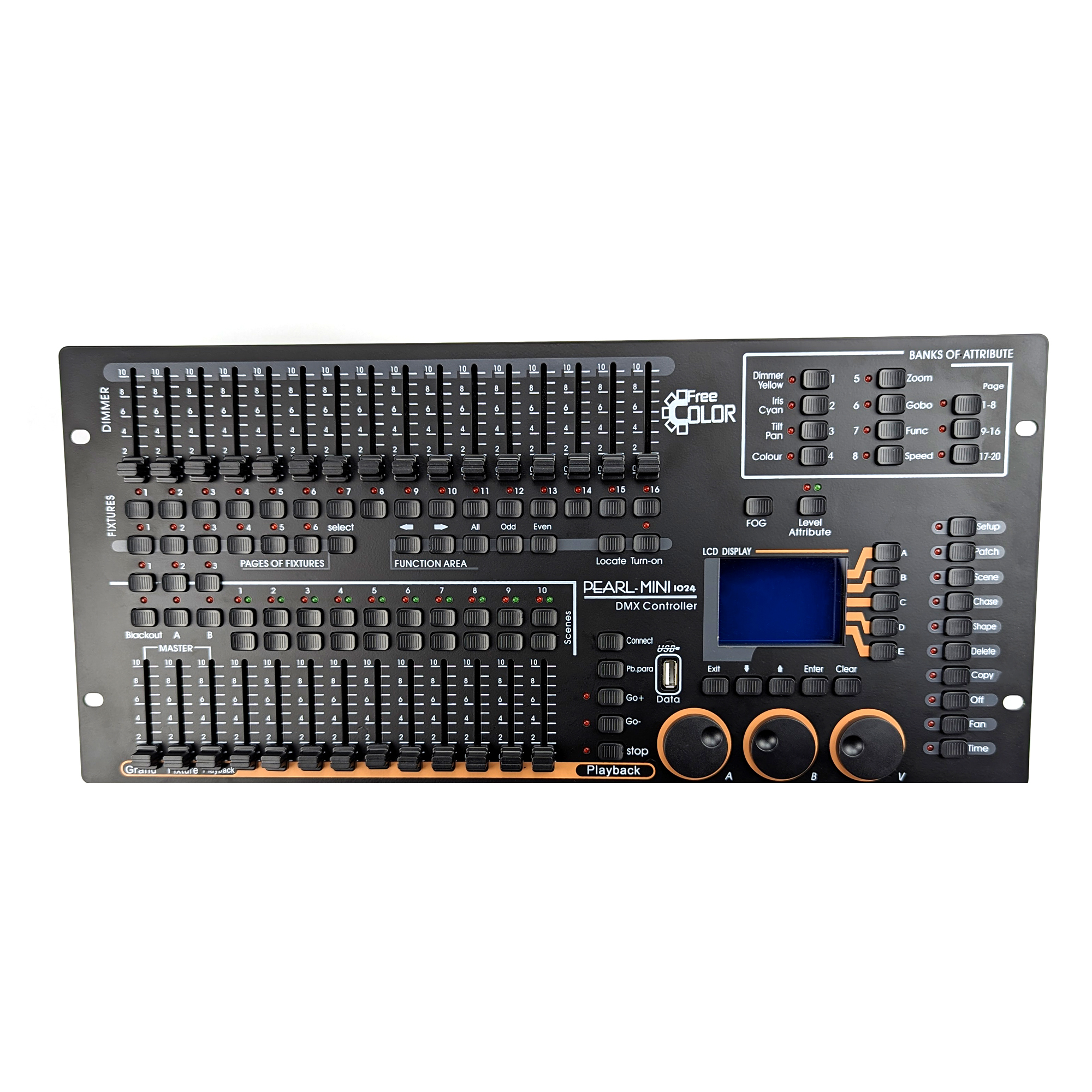

MiniPearl 1024
Mini 1024 DMX controller can control up to 96 fixtures. It is compatible with the library in Avolite Pearl R20 format and featured with built-in shape effects of pan/tilt circle,
RGB rainbow, beam dimming wave, etc. 10 scenes and 5 built-in shapes can be
output simultaneously. Faders can be used to output scenes and adjust the intensity
of the dimmer channels in the scene
| DMX channel | 1024 |
| Fixture | 96 |
| Channels for each fixture | 40 primary + 40 fine tune |
| Library | Avolite Pearl R20 library supported |
| Re-patched Fixture address | Yes |
| Swop Pan/Tilt | Yes |
| Reversed channel output | Yes |
| Channel slope modification | Yes |
| Scene | 60 |
| Scenes to run simultaneously | 10 |
| Scene step | 600 |
| Time control of scenes | Fade in/out, LTP slope |
| Shapes for each scene | 5 |
| Scene and dimmer by slider | Yes |
| Interlocked scene | Yes |
| Button controlled scene | Yes |
| Shape generator | Shapes of Dimmer, Pan/Tilt, RGB, CMY, Color, Gobo, Iris and Focus |
| Shapes to run simultaneously | 5 |
| Master slider | Global, playback, fixture |
| Real time blackout | Yes |
| Channel value by wheel | Yes |
| Channel value by slider | Yes |
| Dimmer by slider | Yes |
| USB Memory | FAT32 supported |
