Brand: Pro Lux
Category: Moving Heads FX

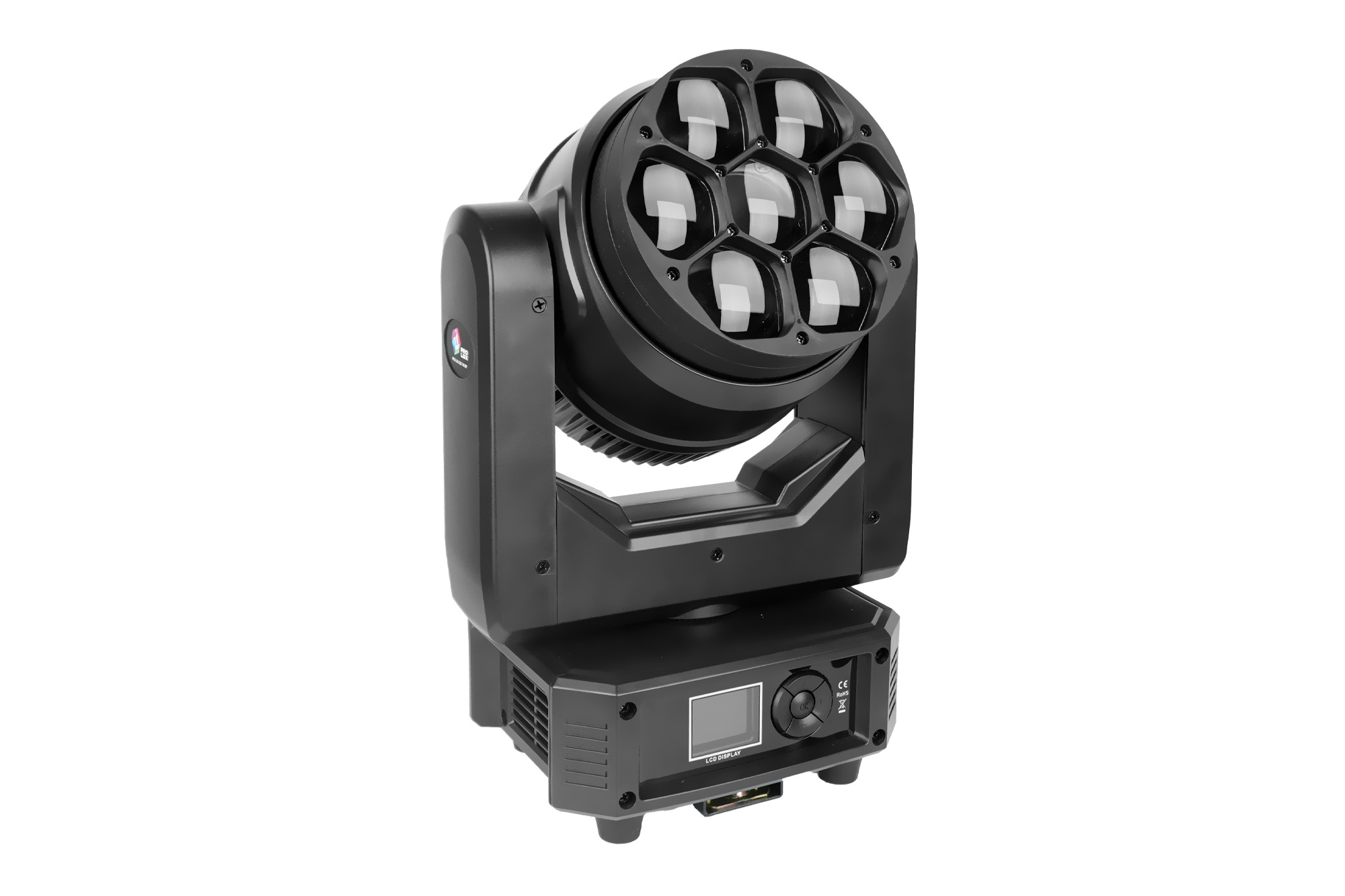

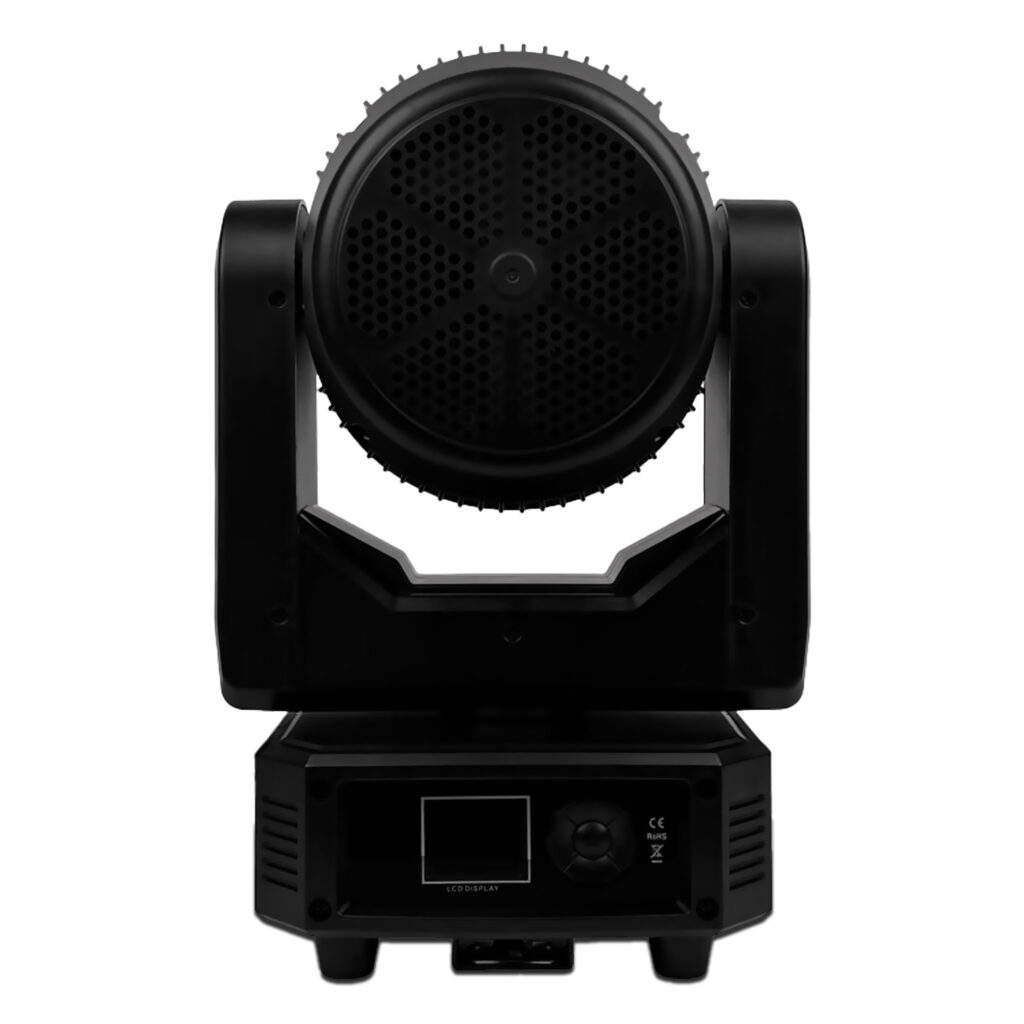

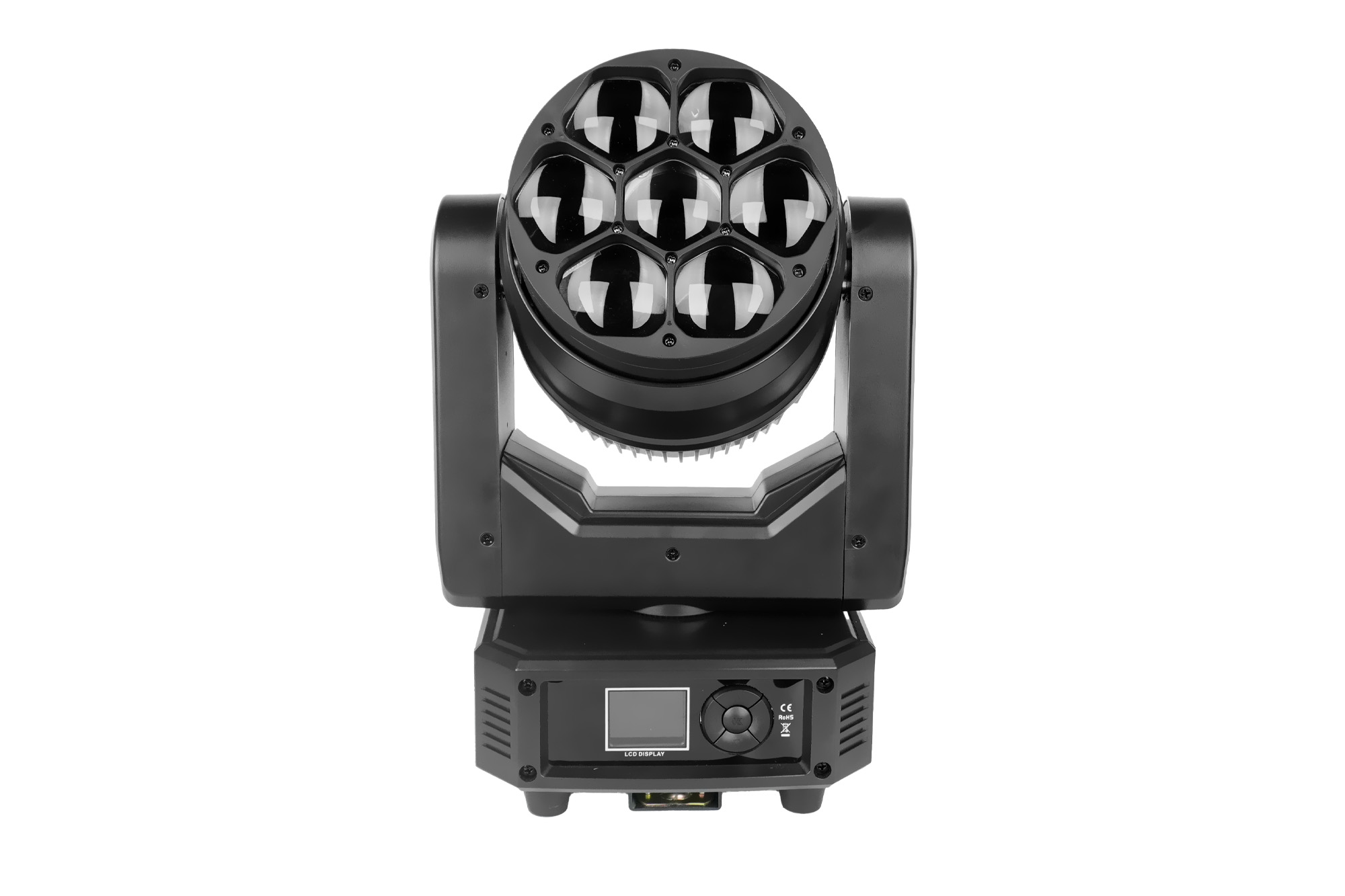

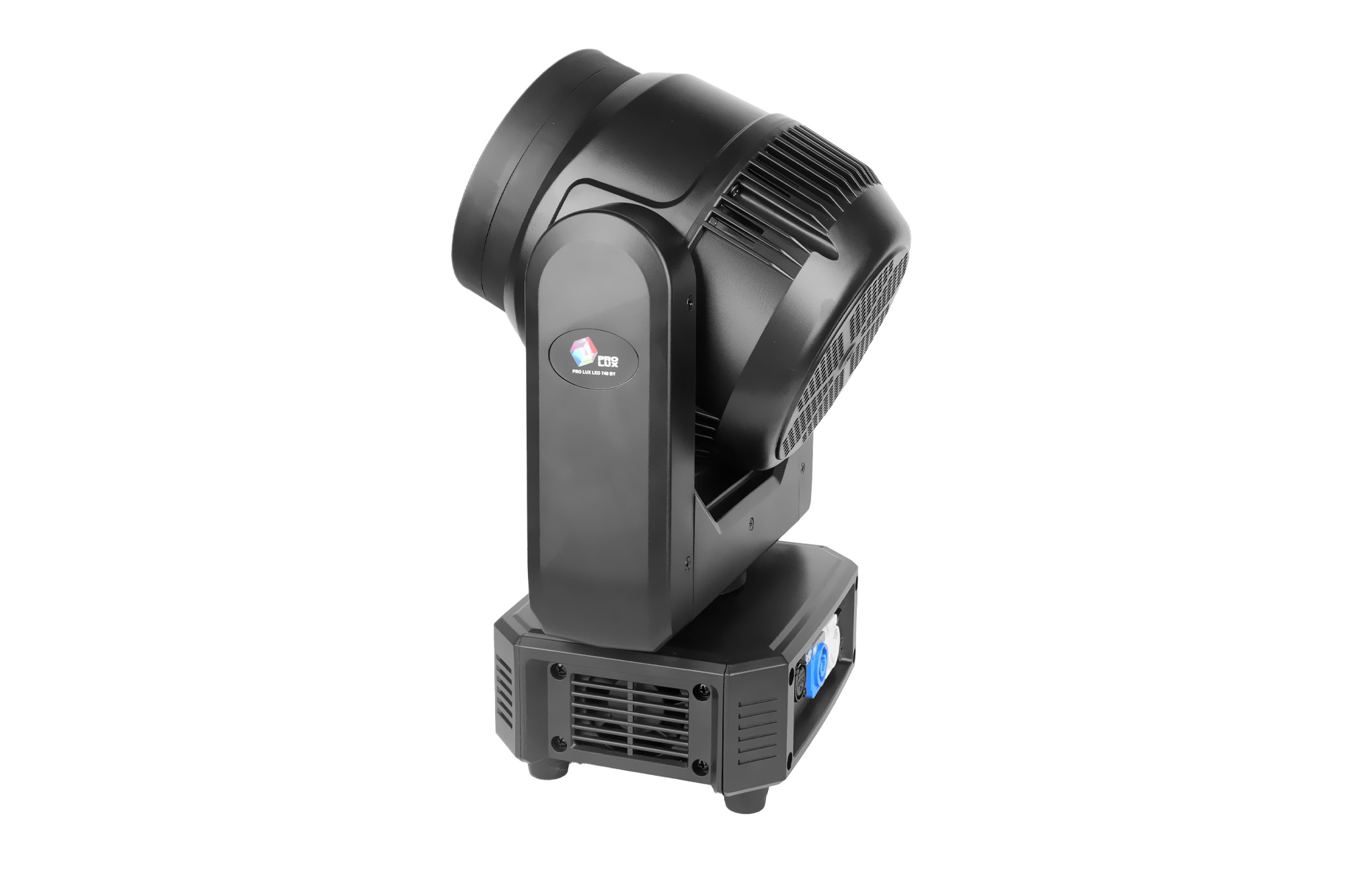

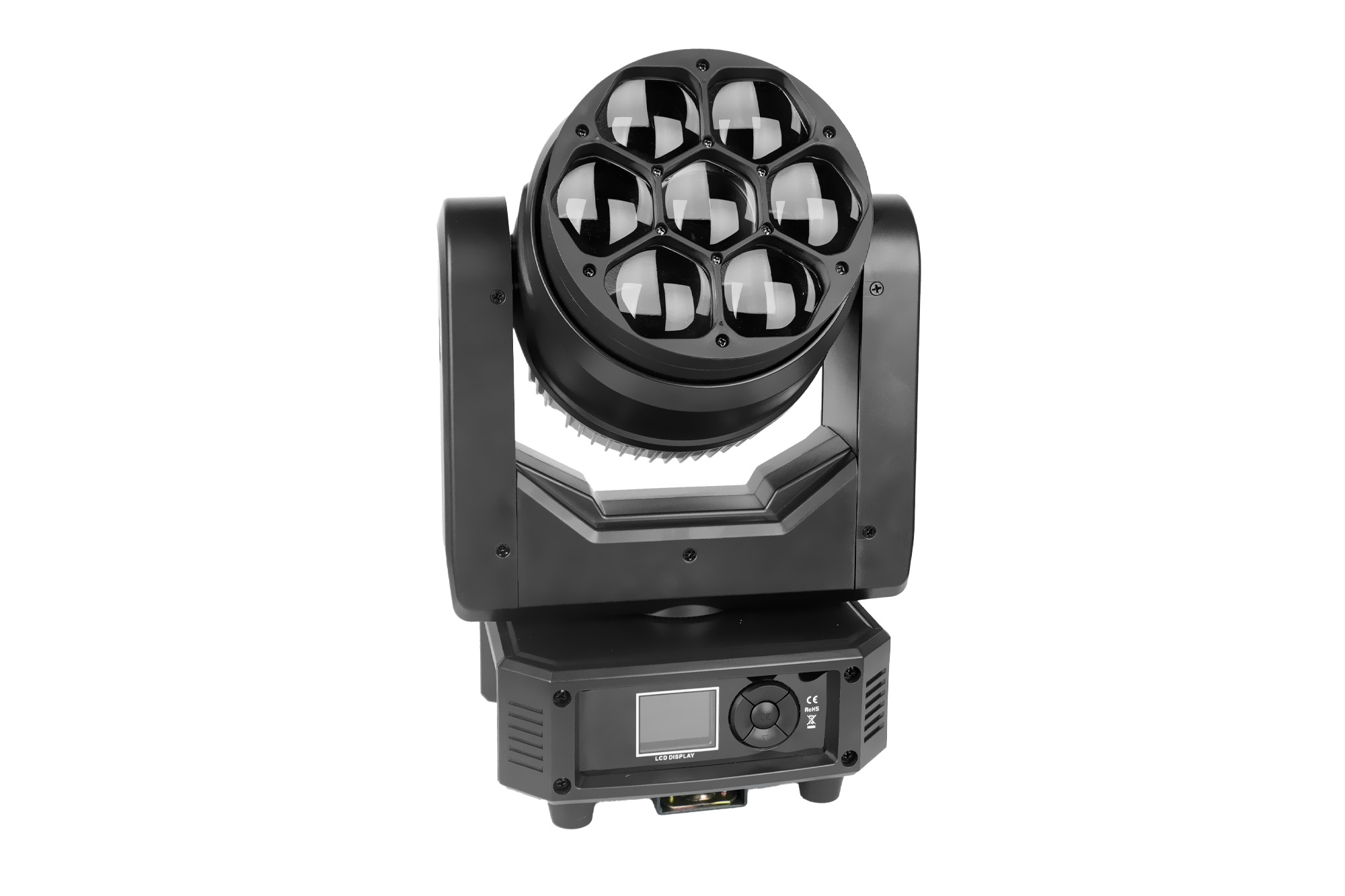

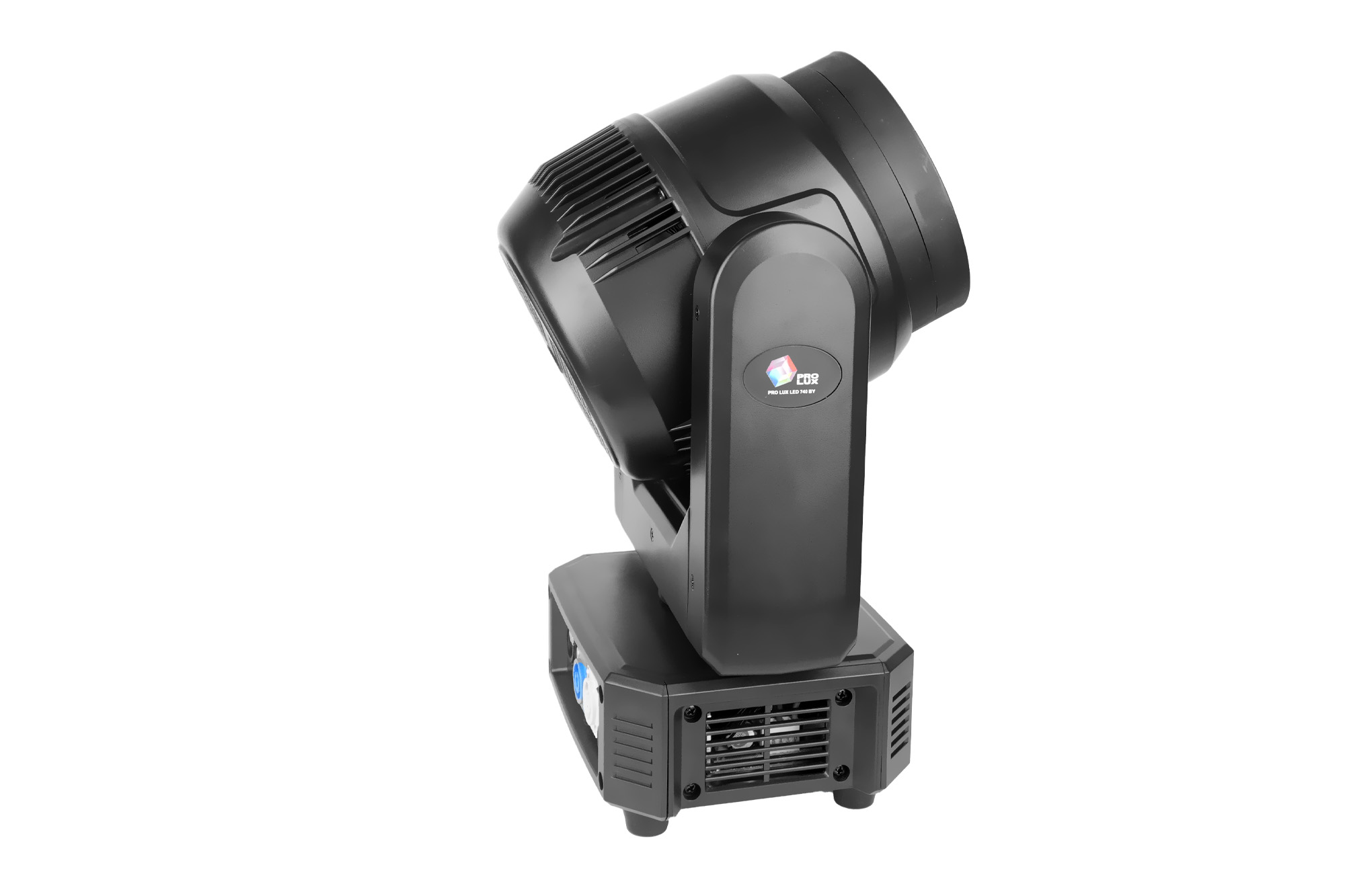

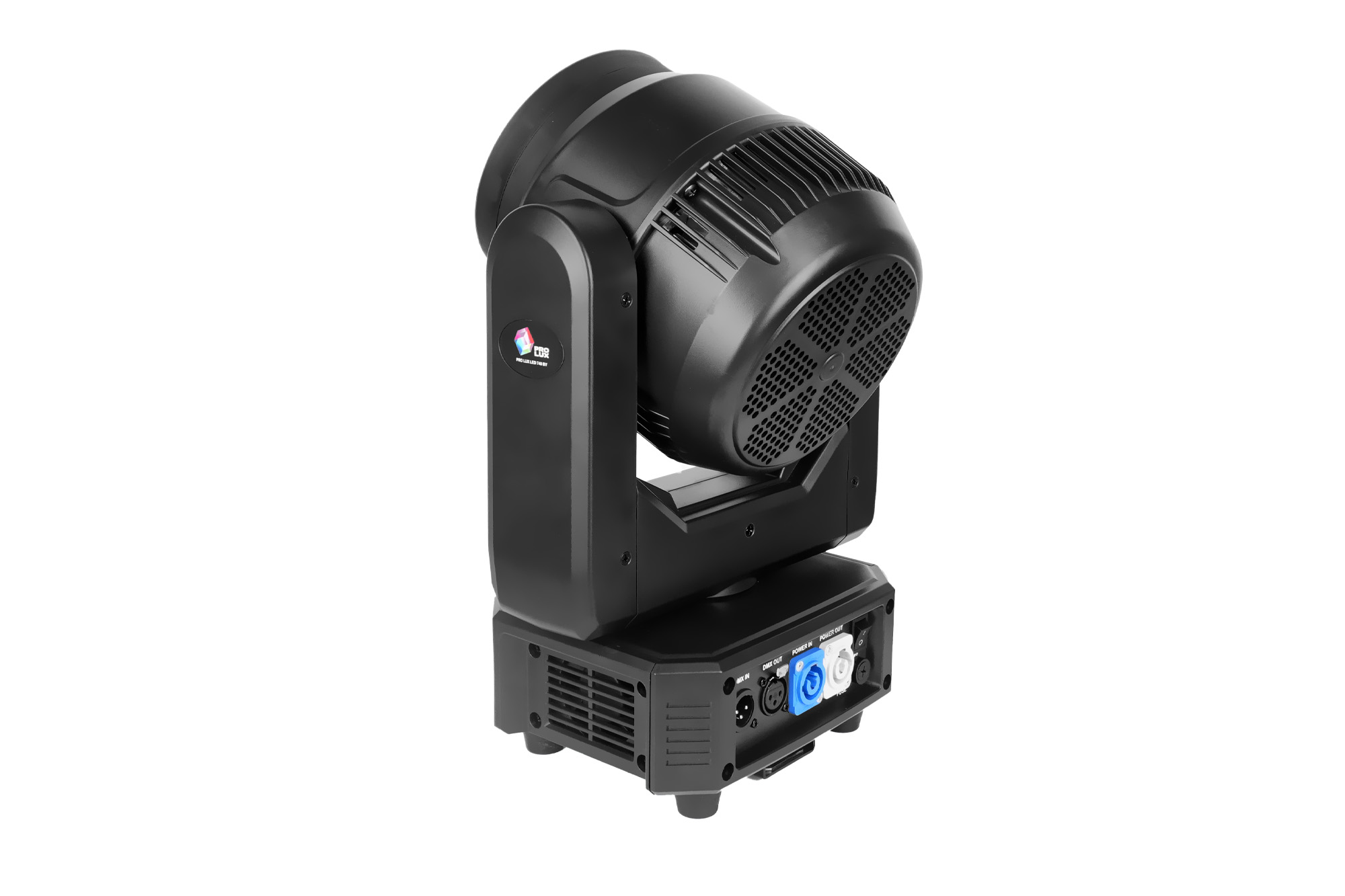

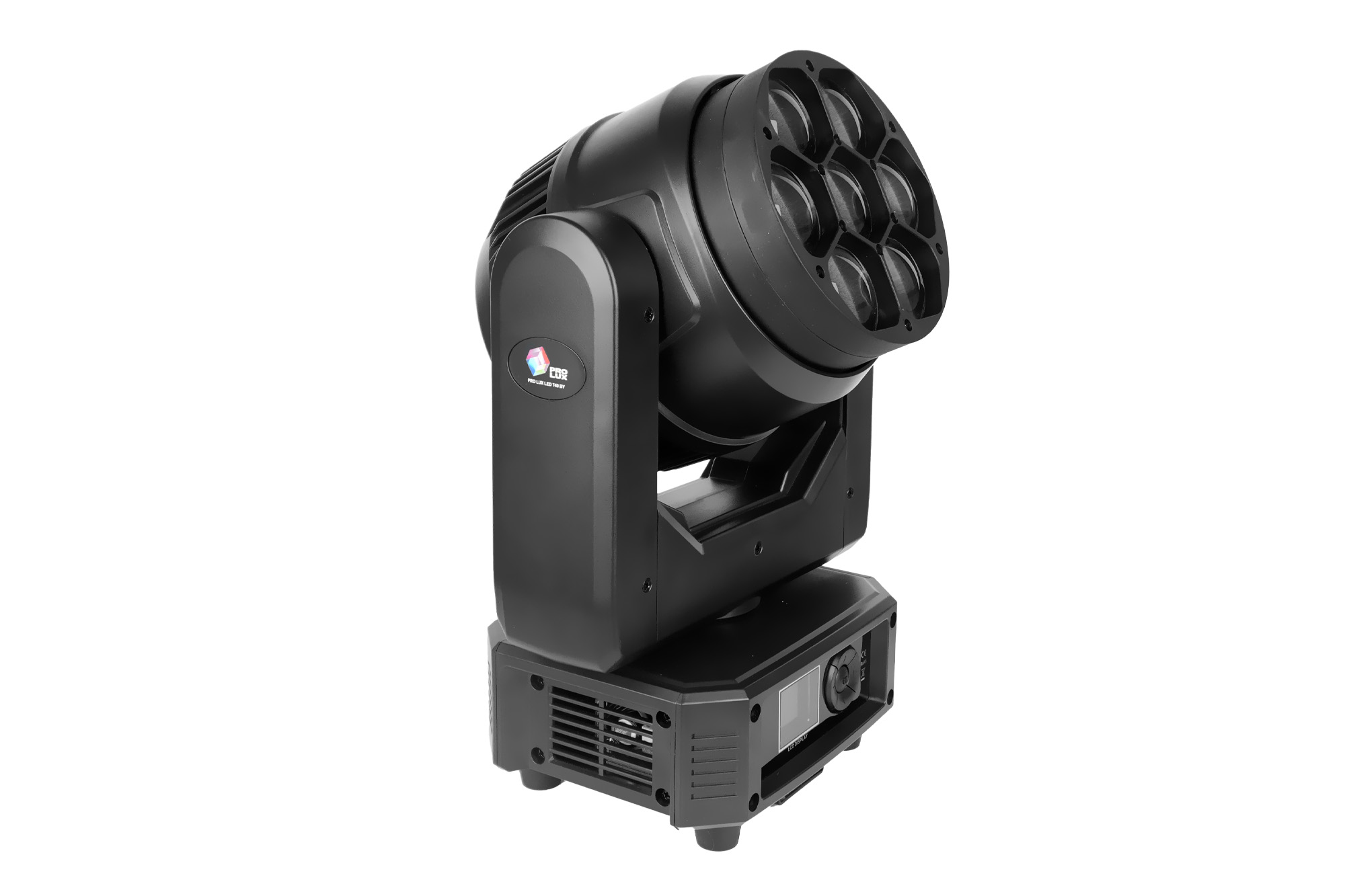

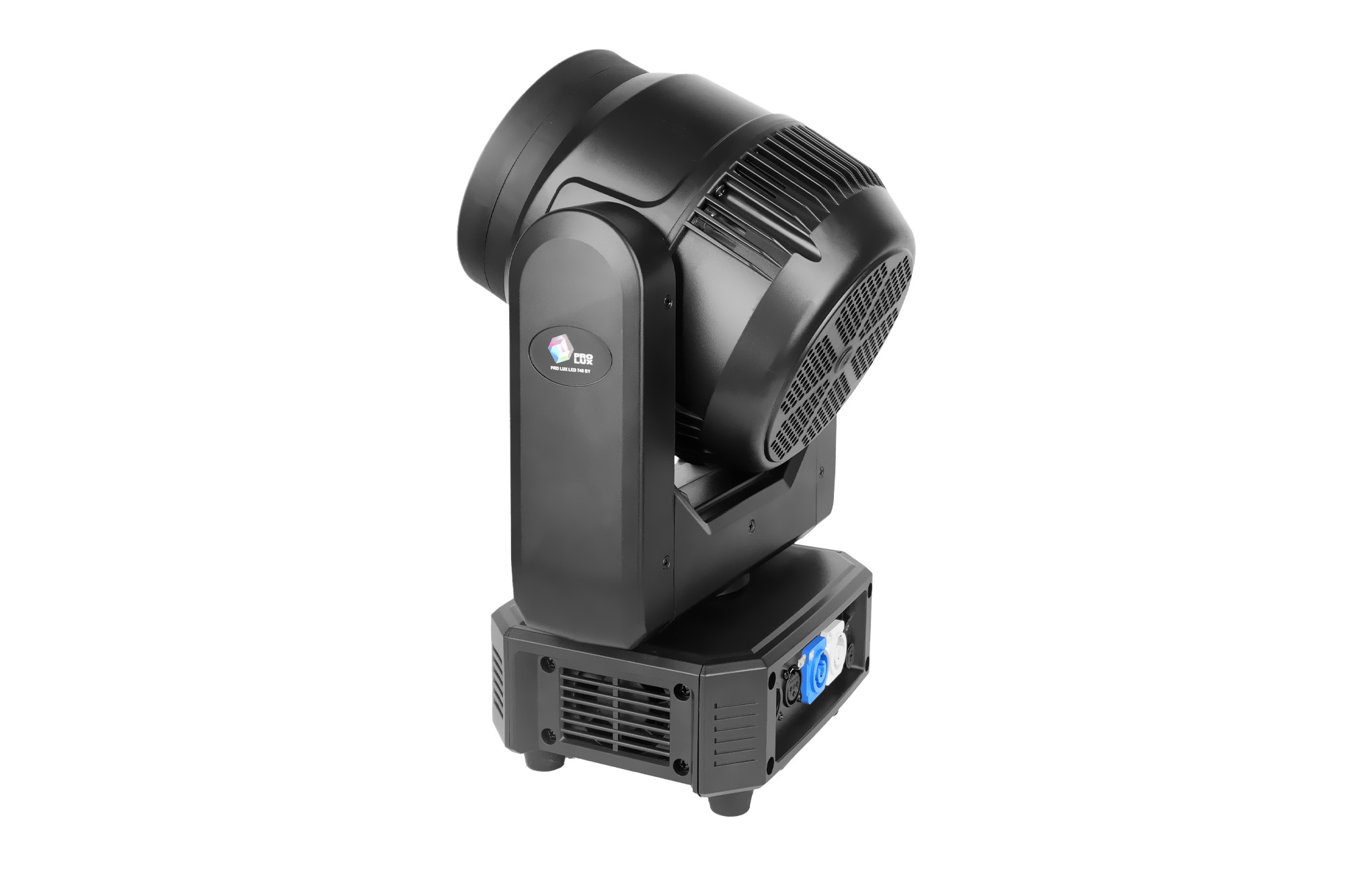

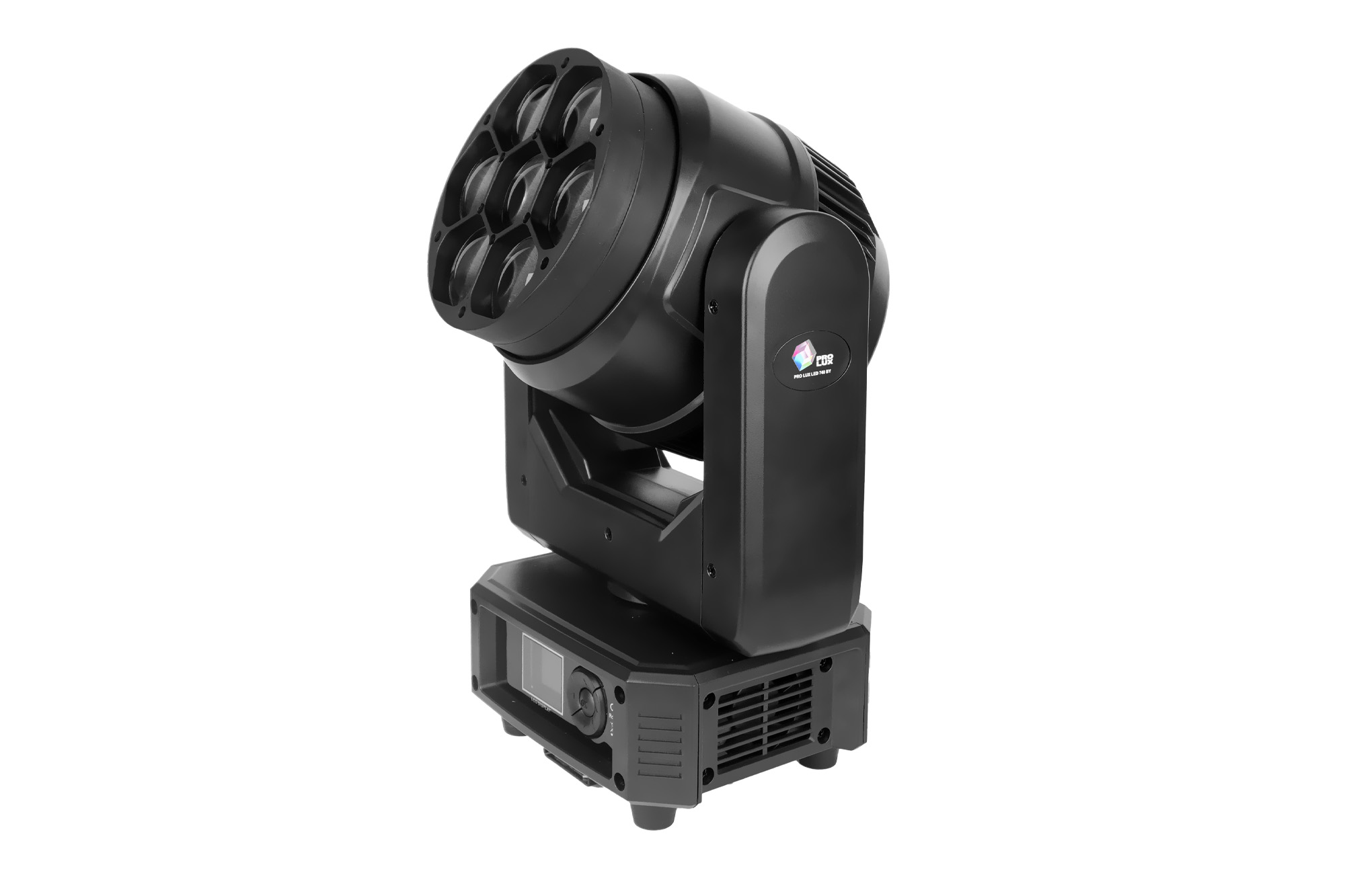

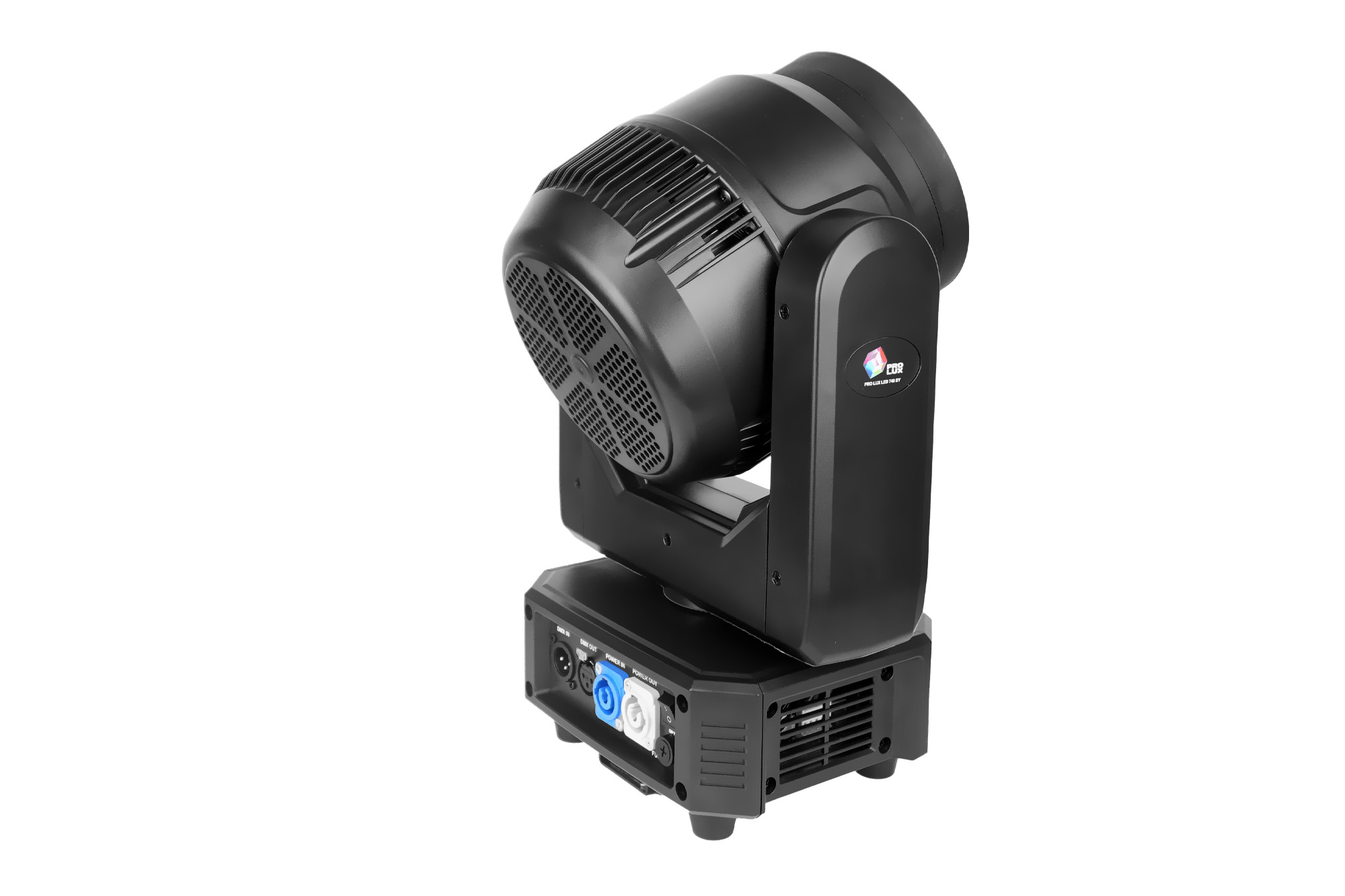

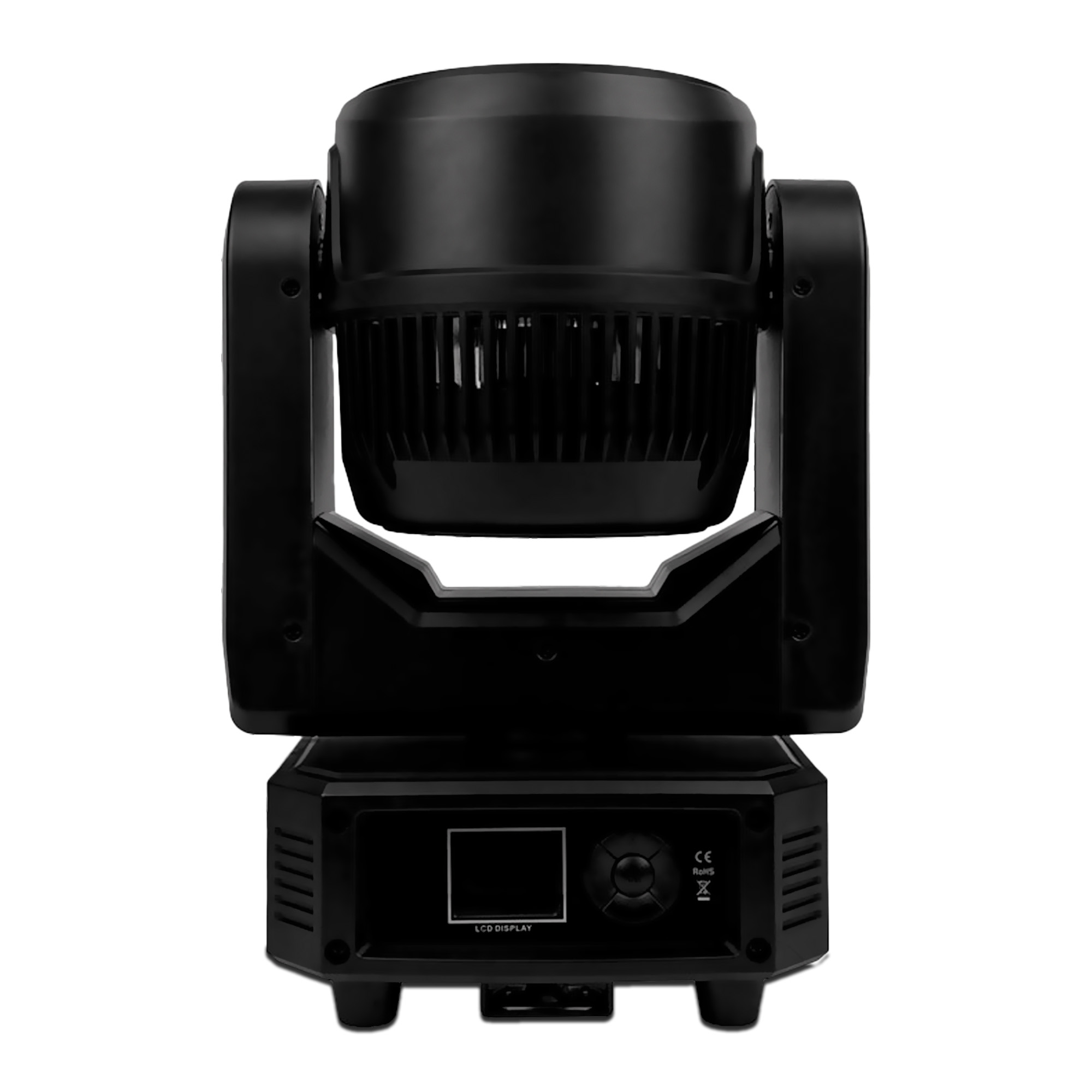

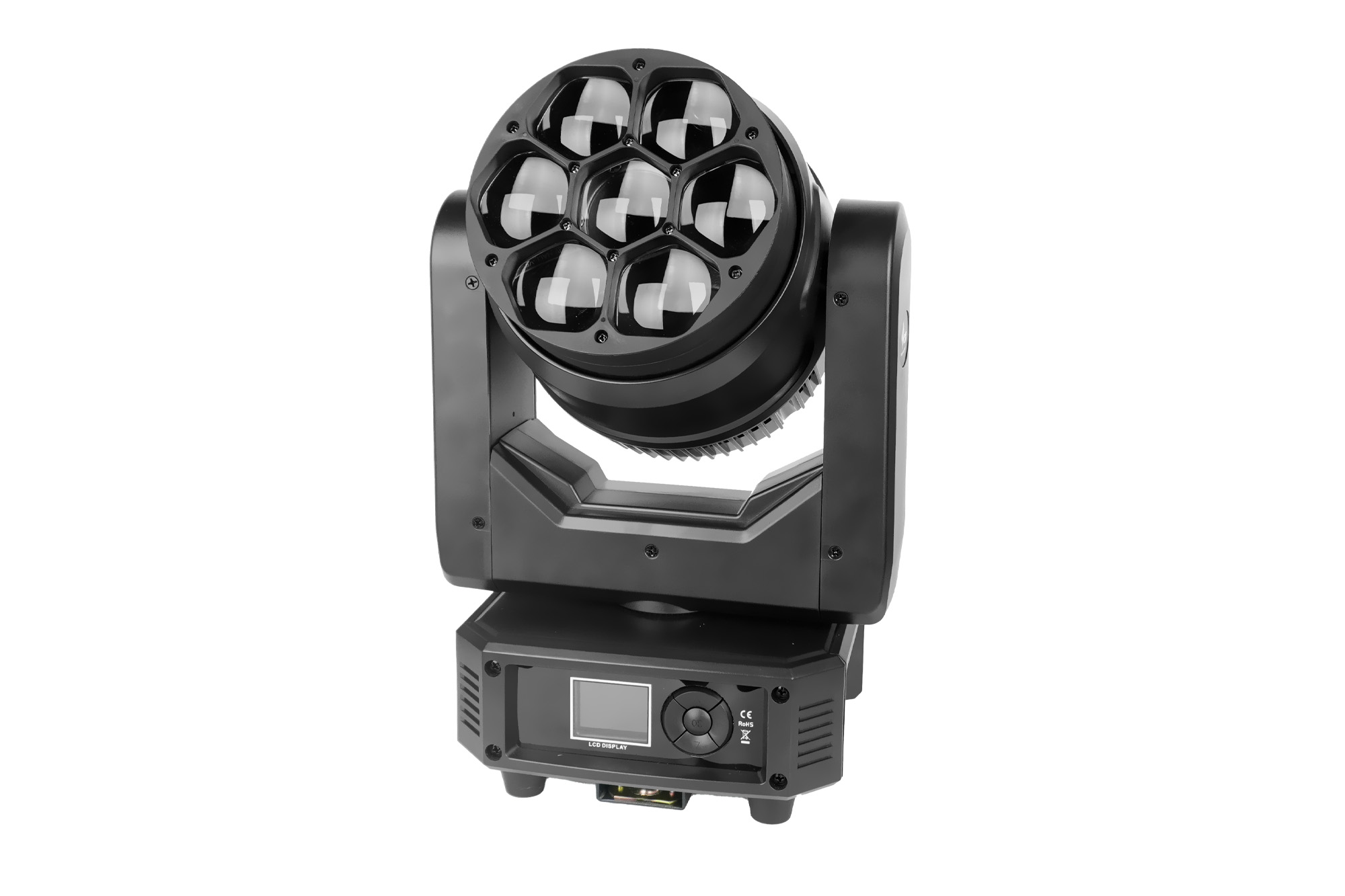

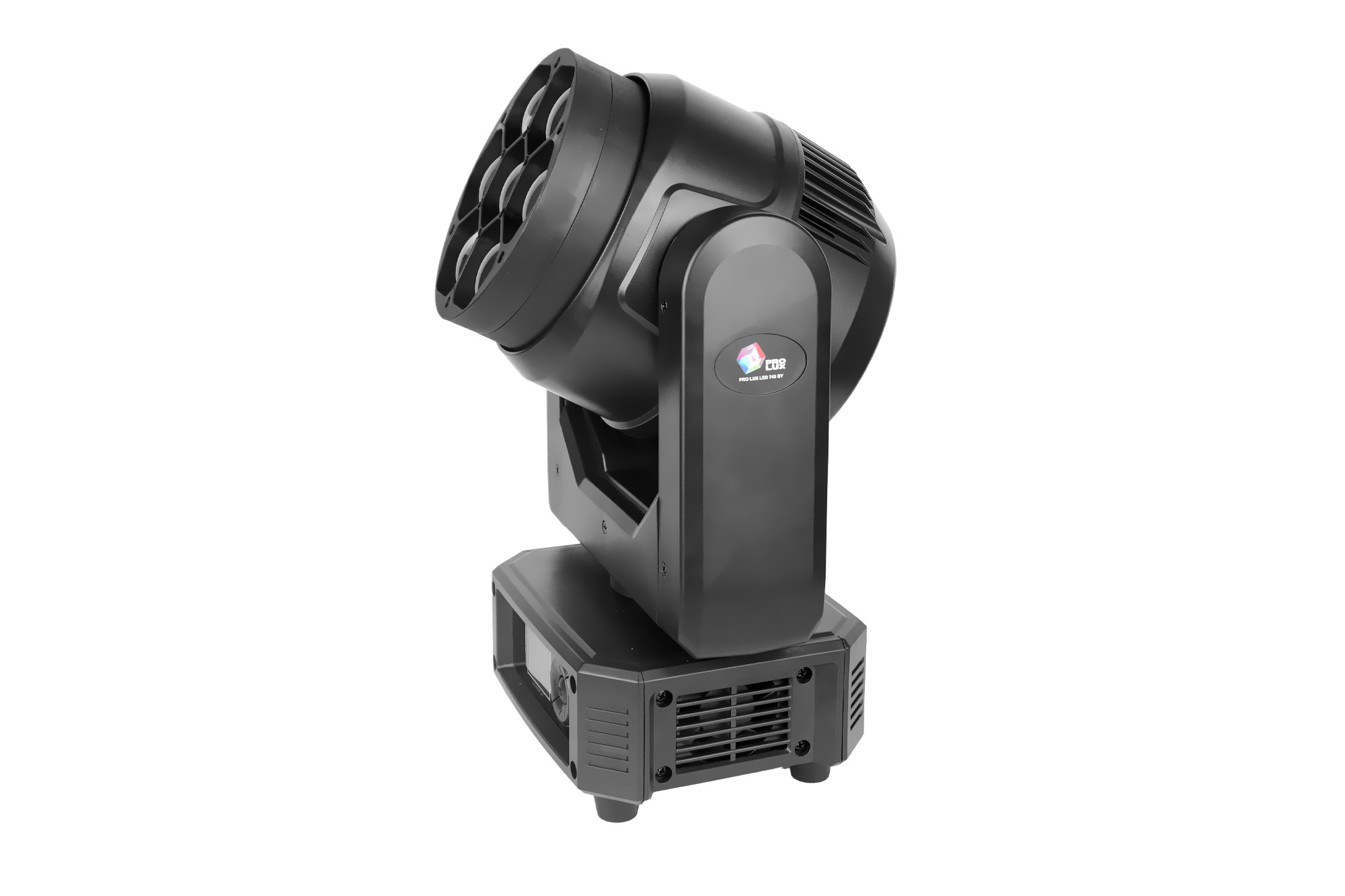

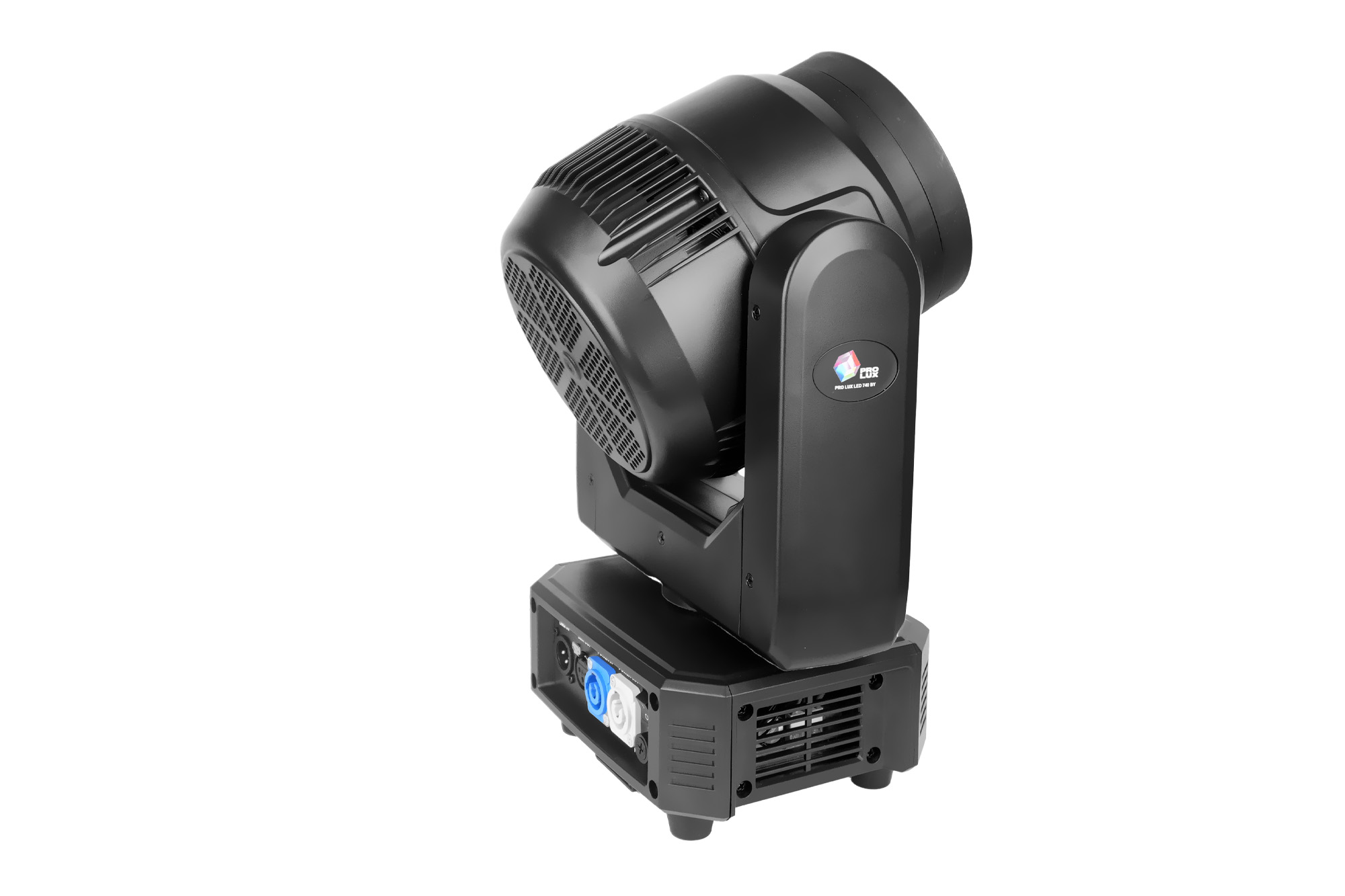

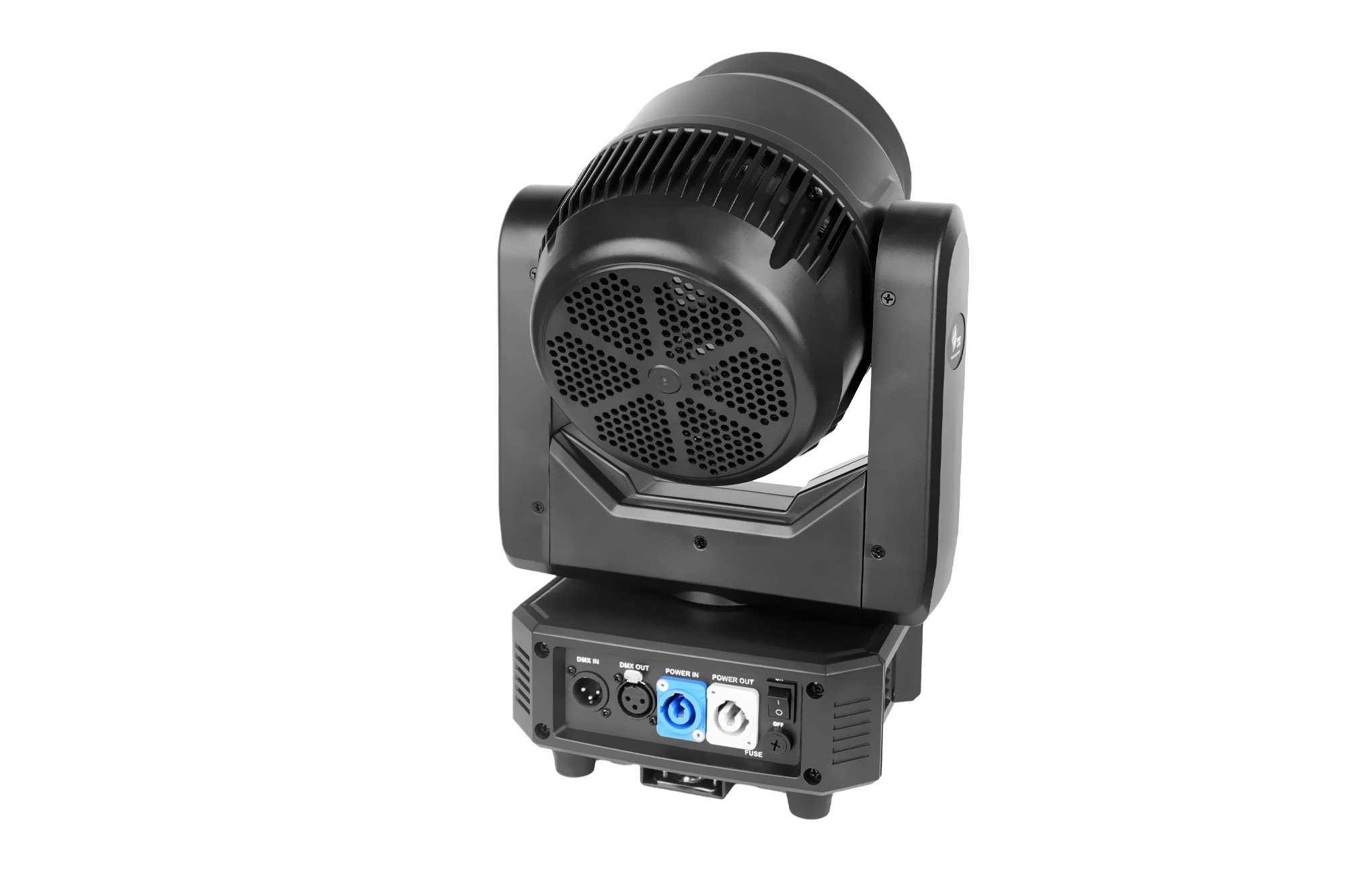

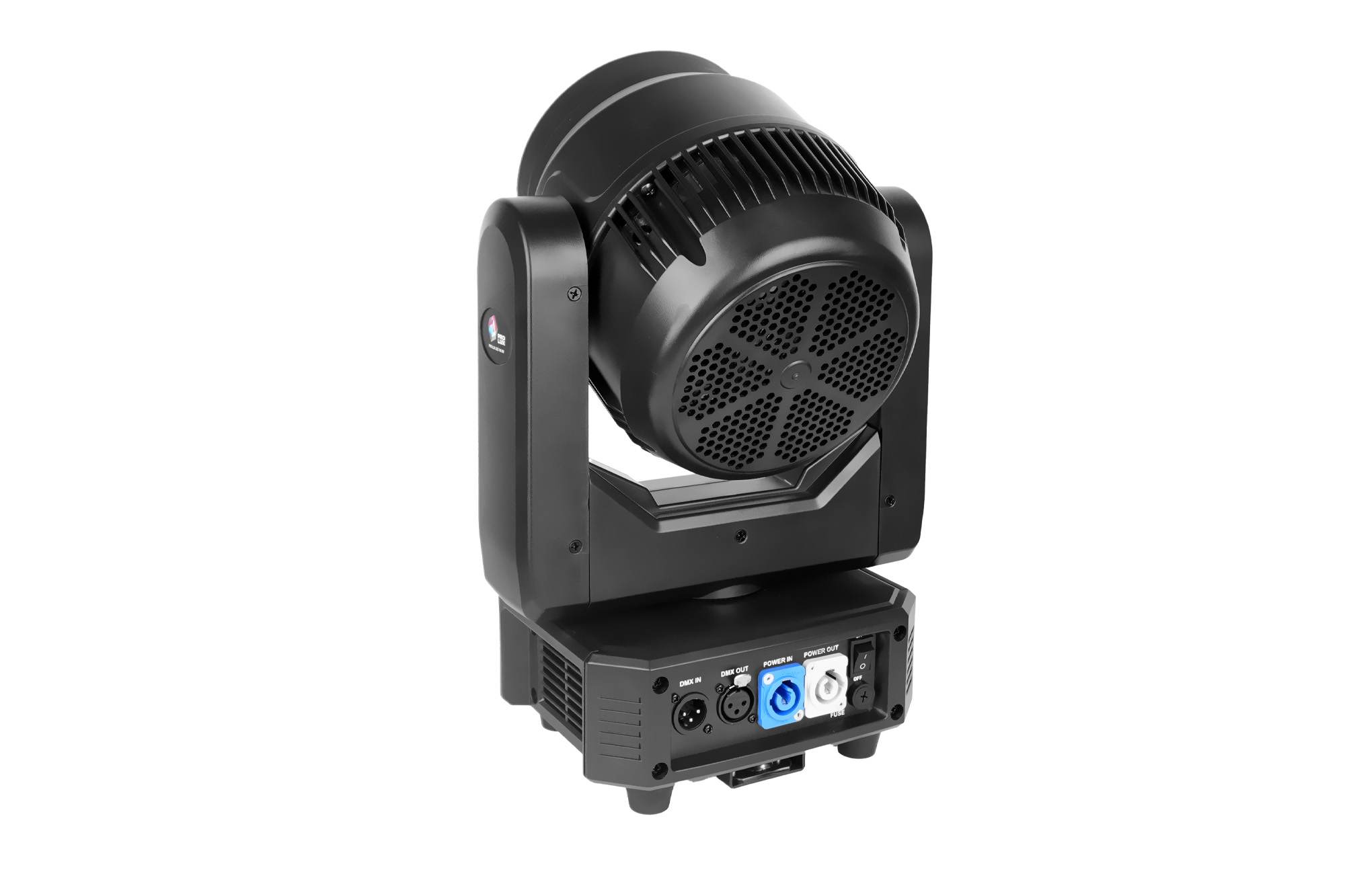

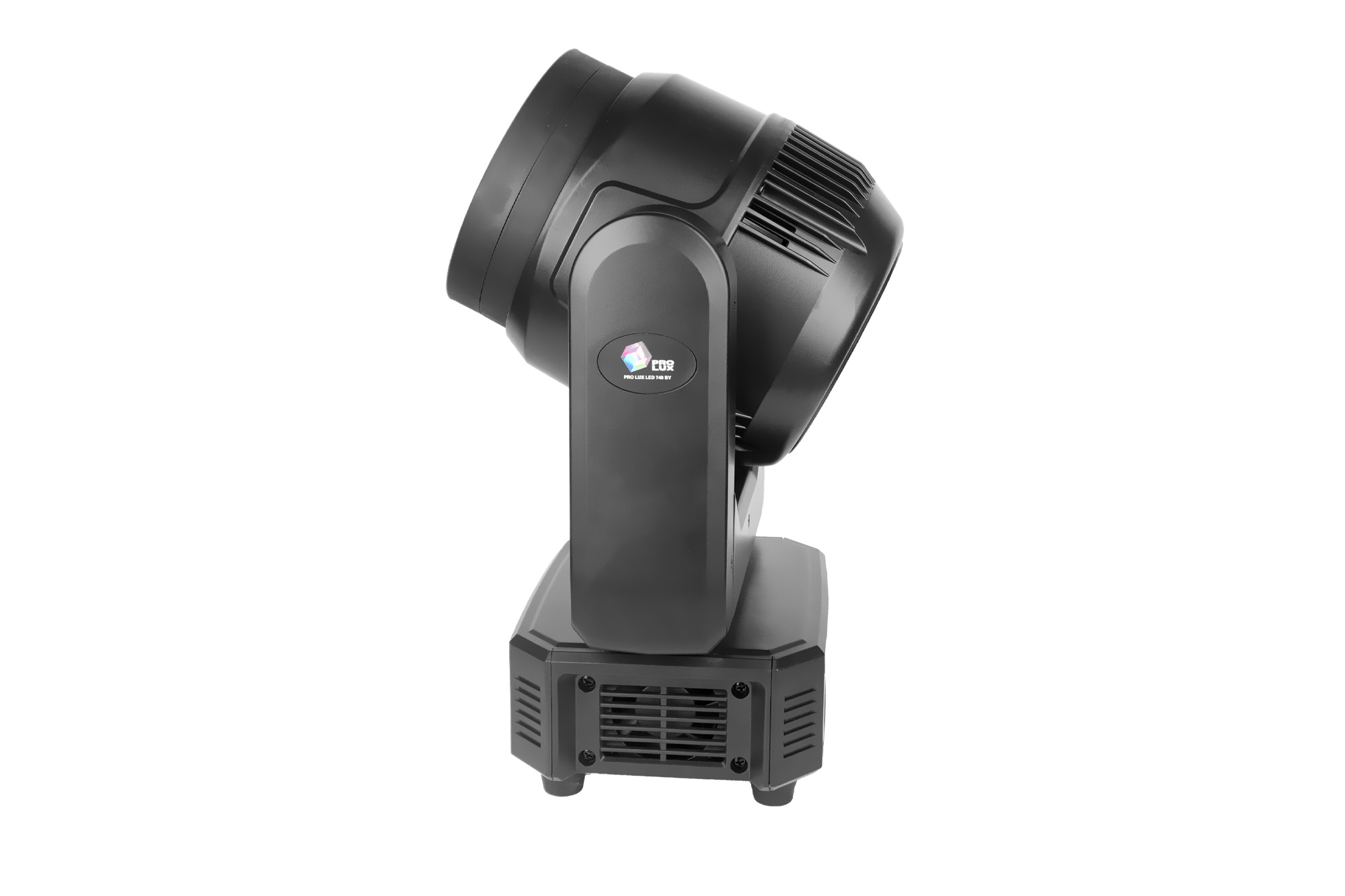

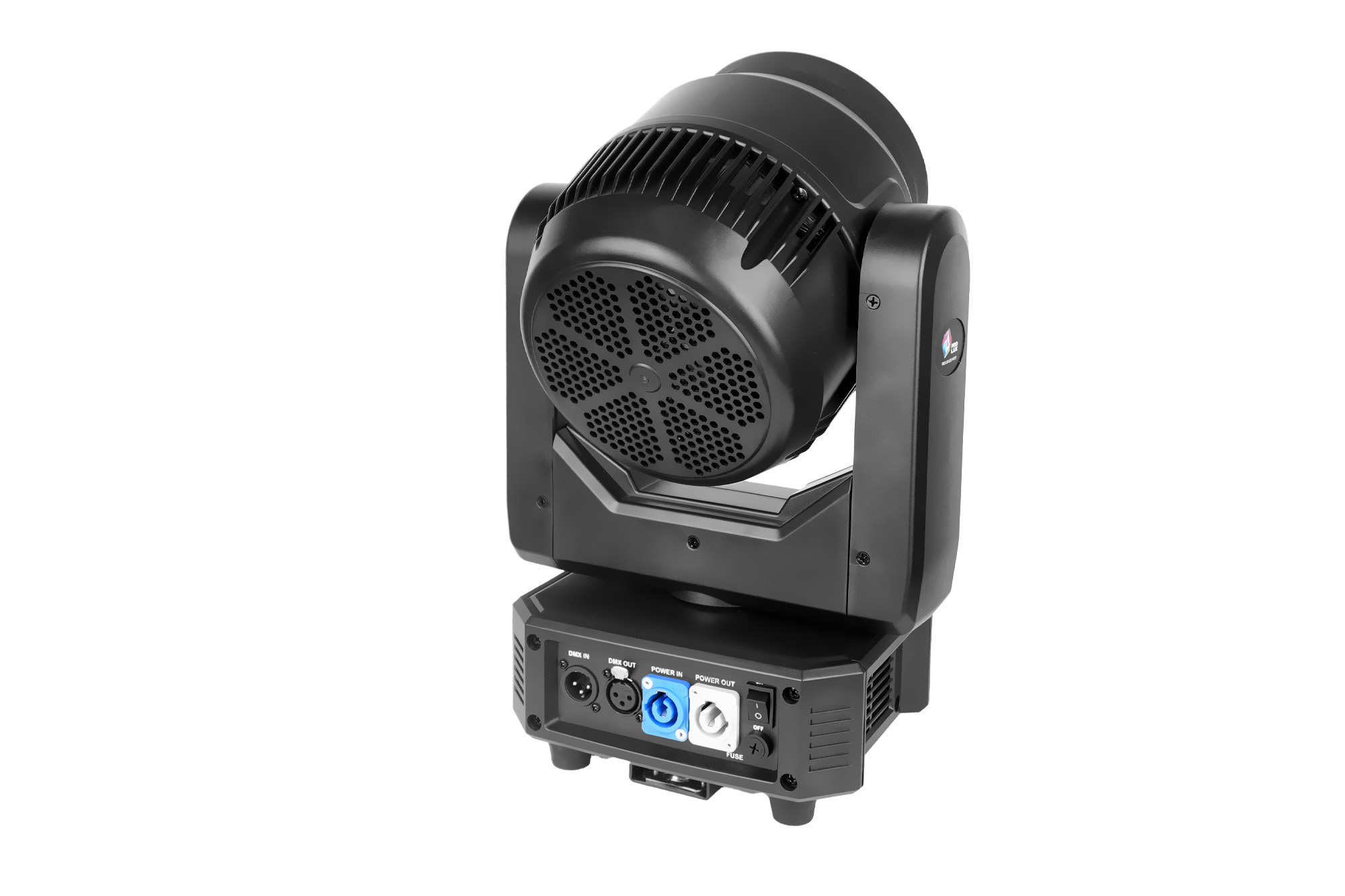

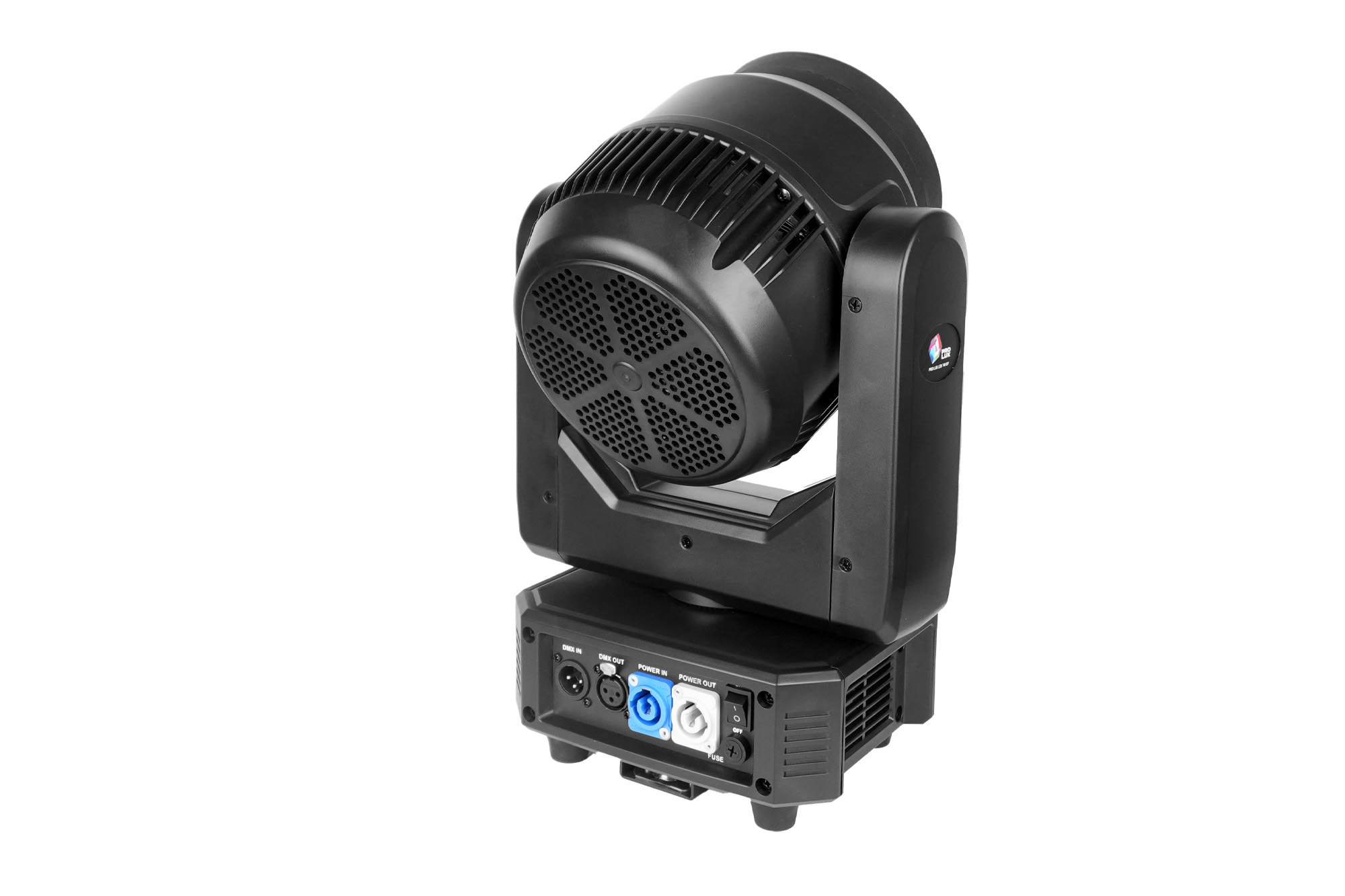

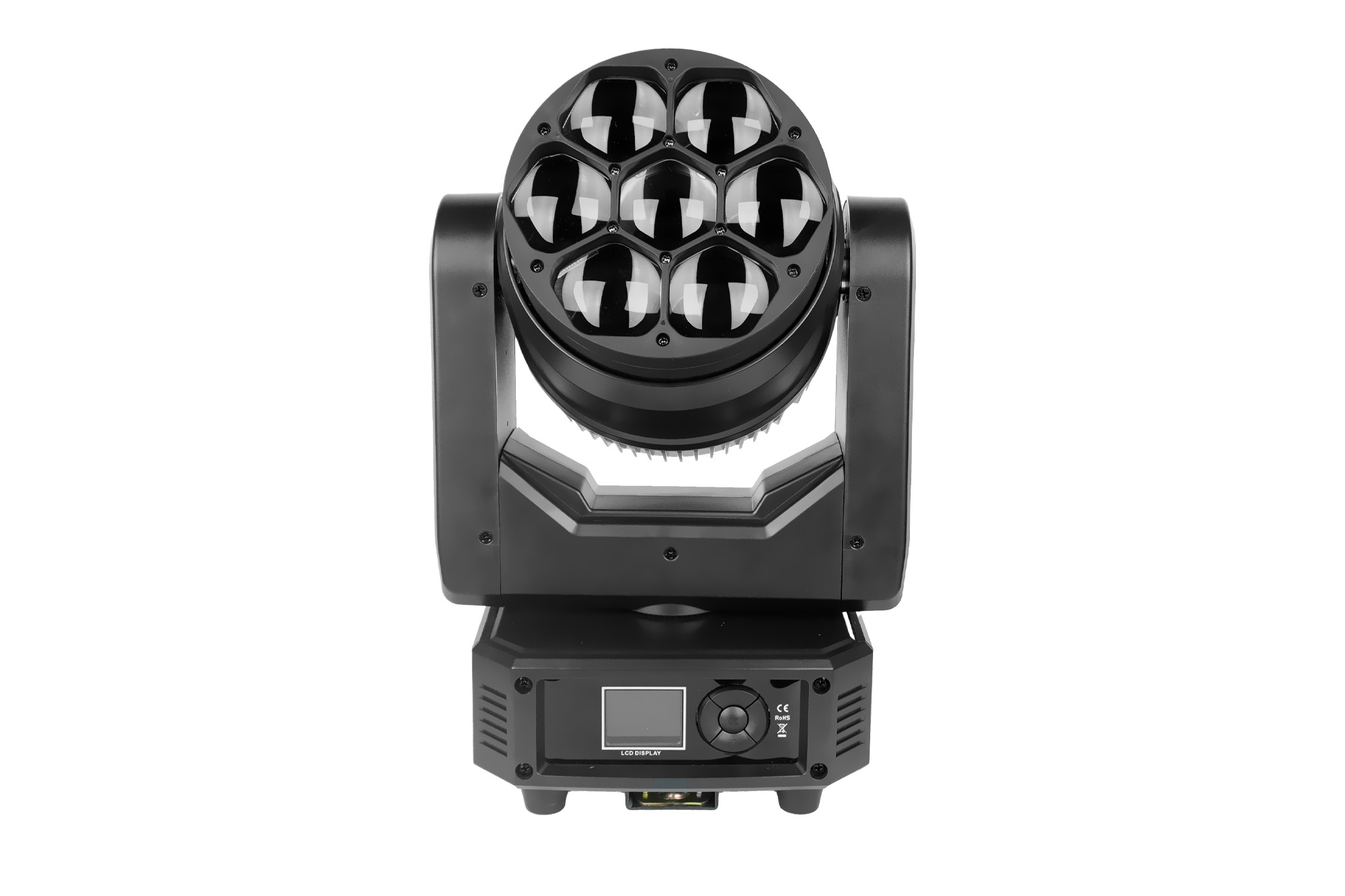

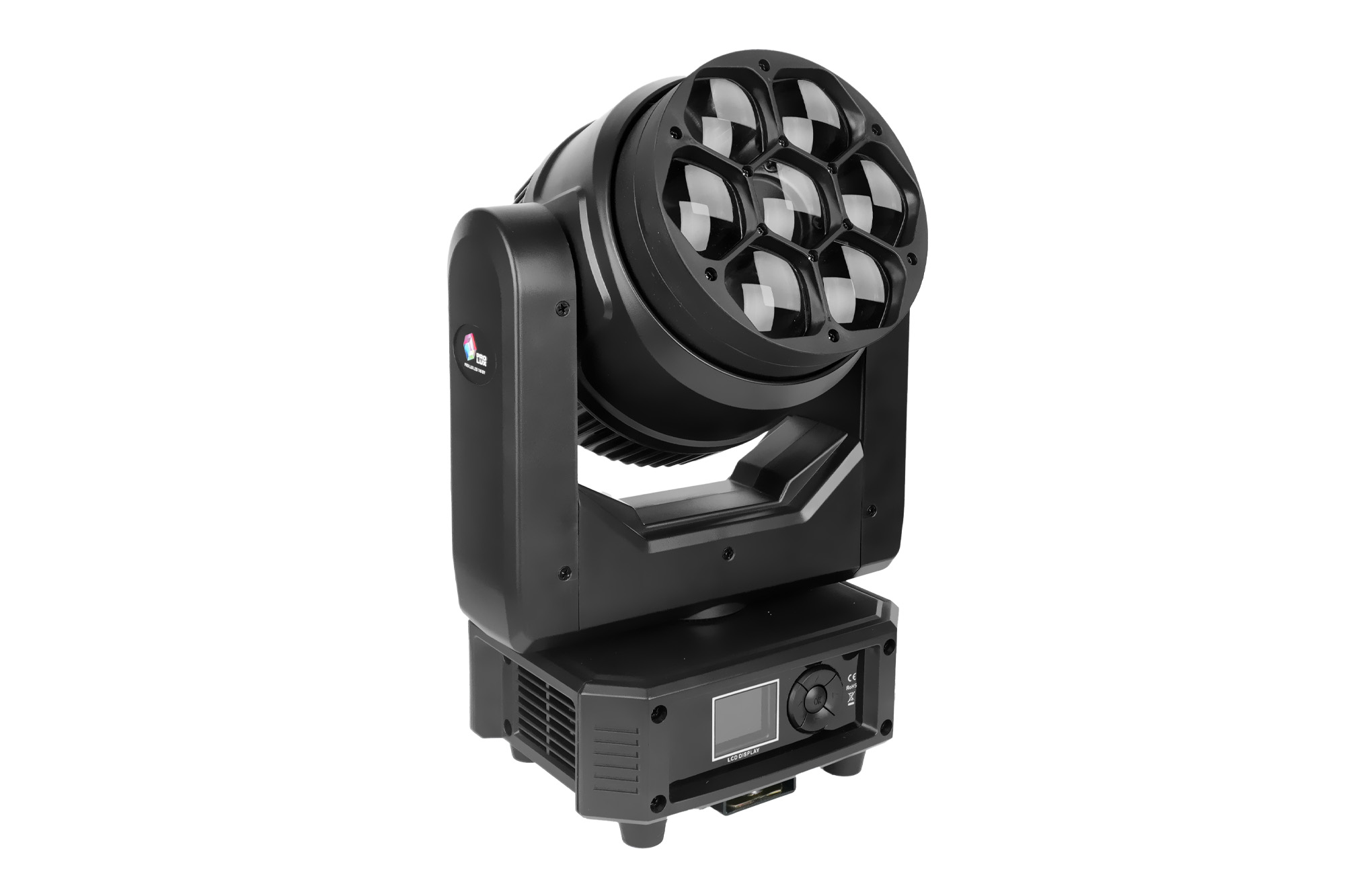

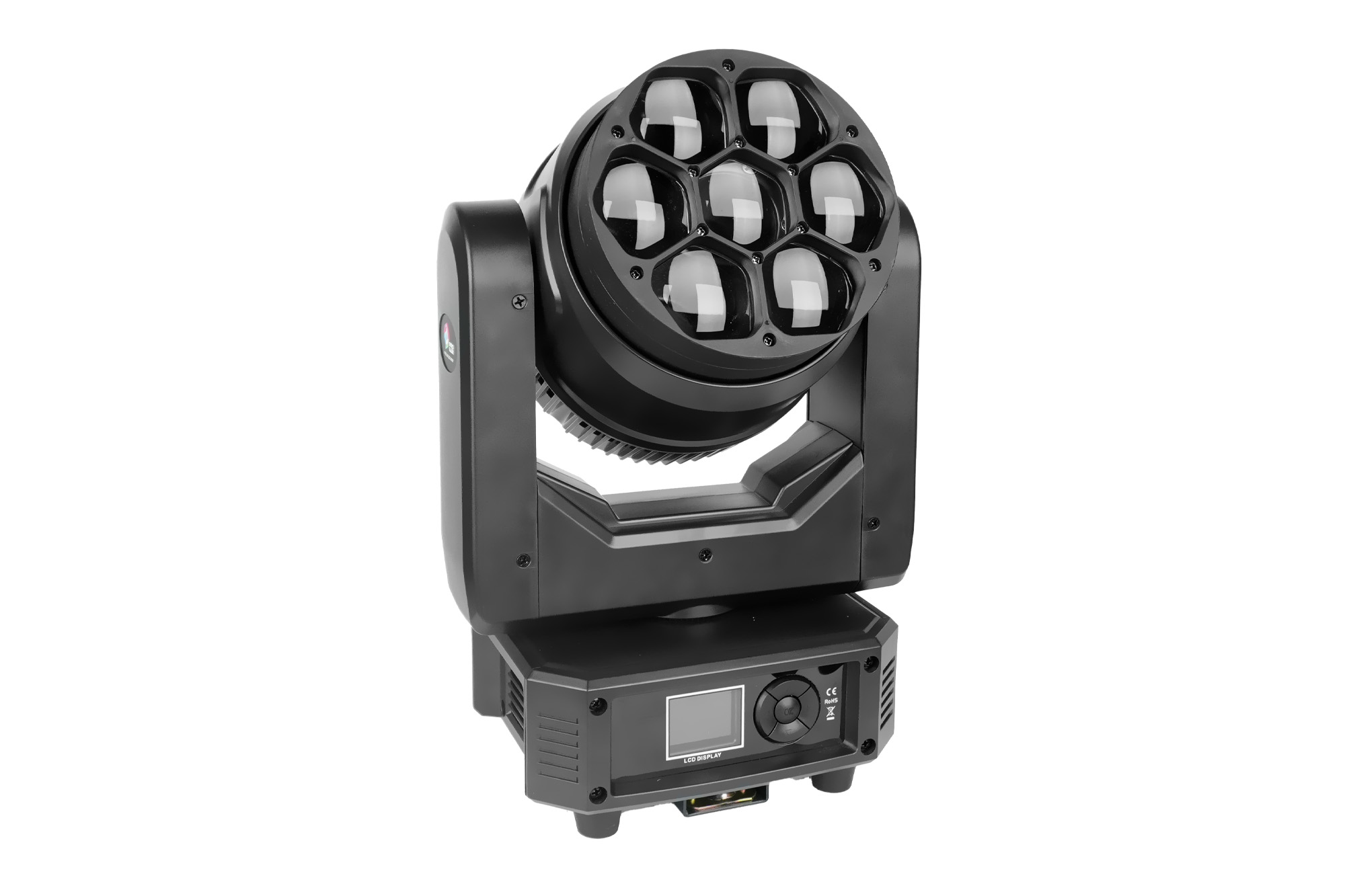

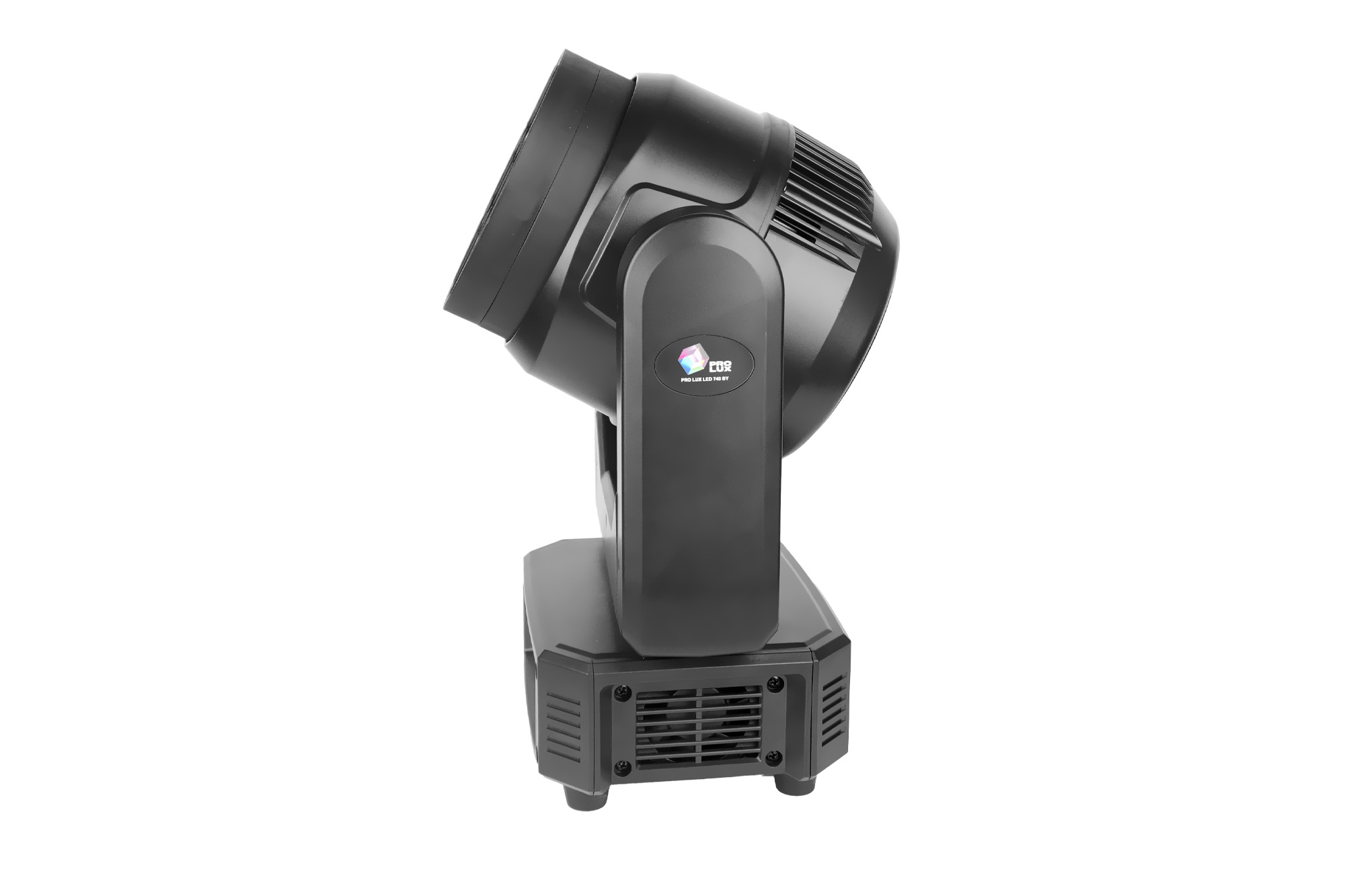

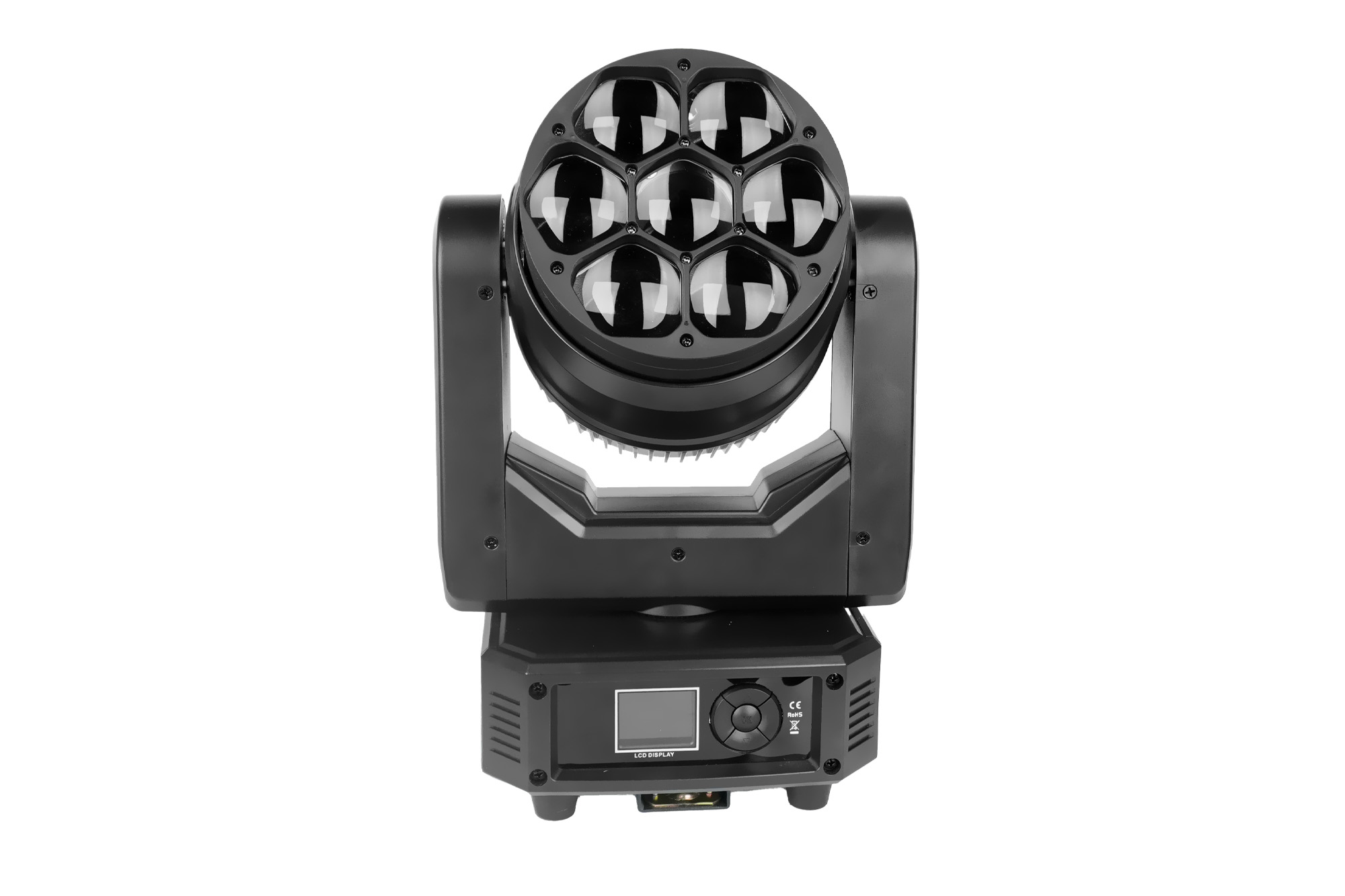

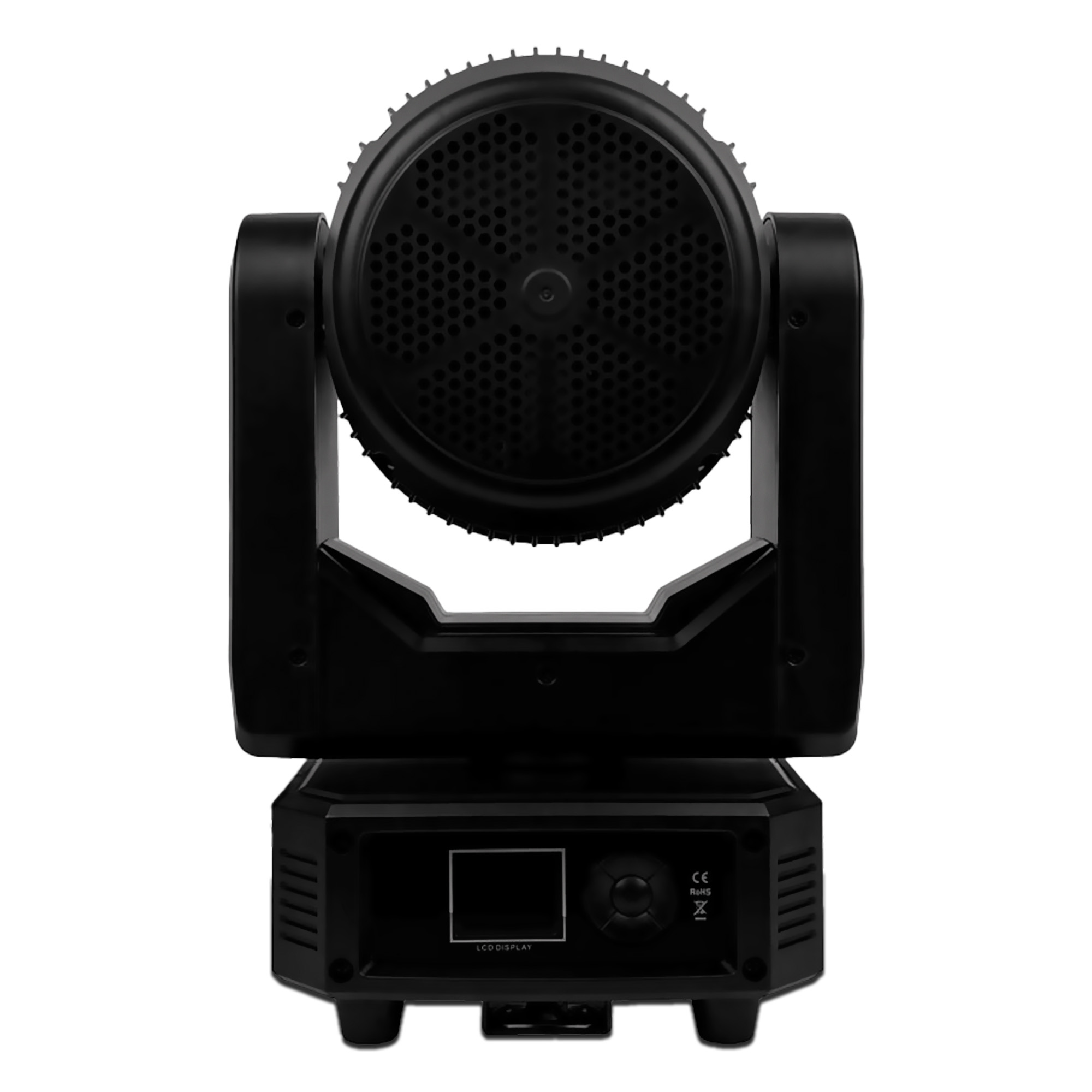

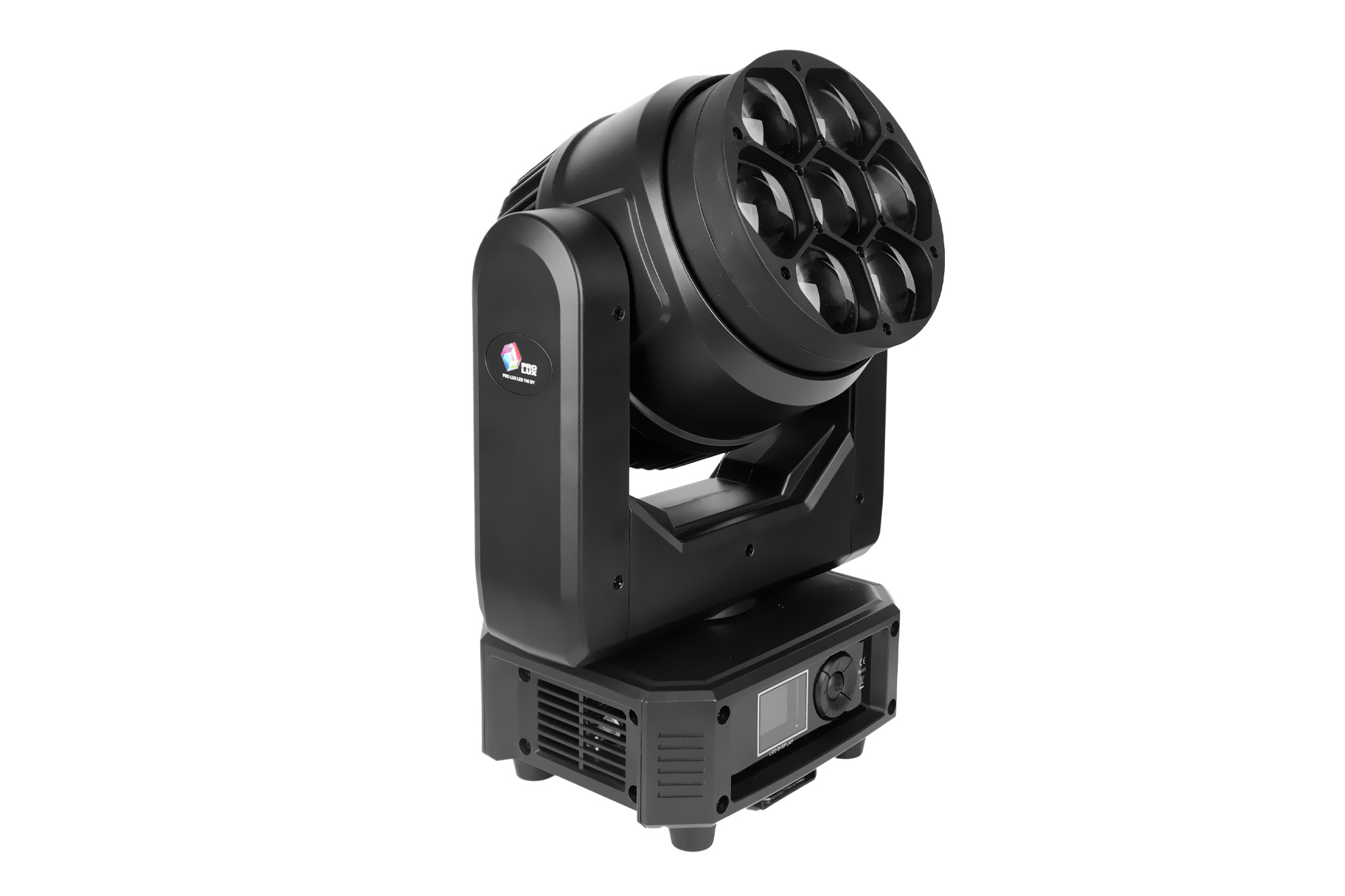

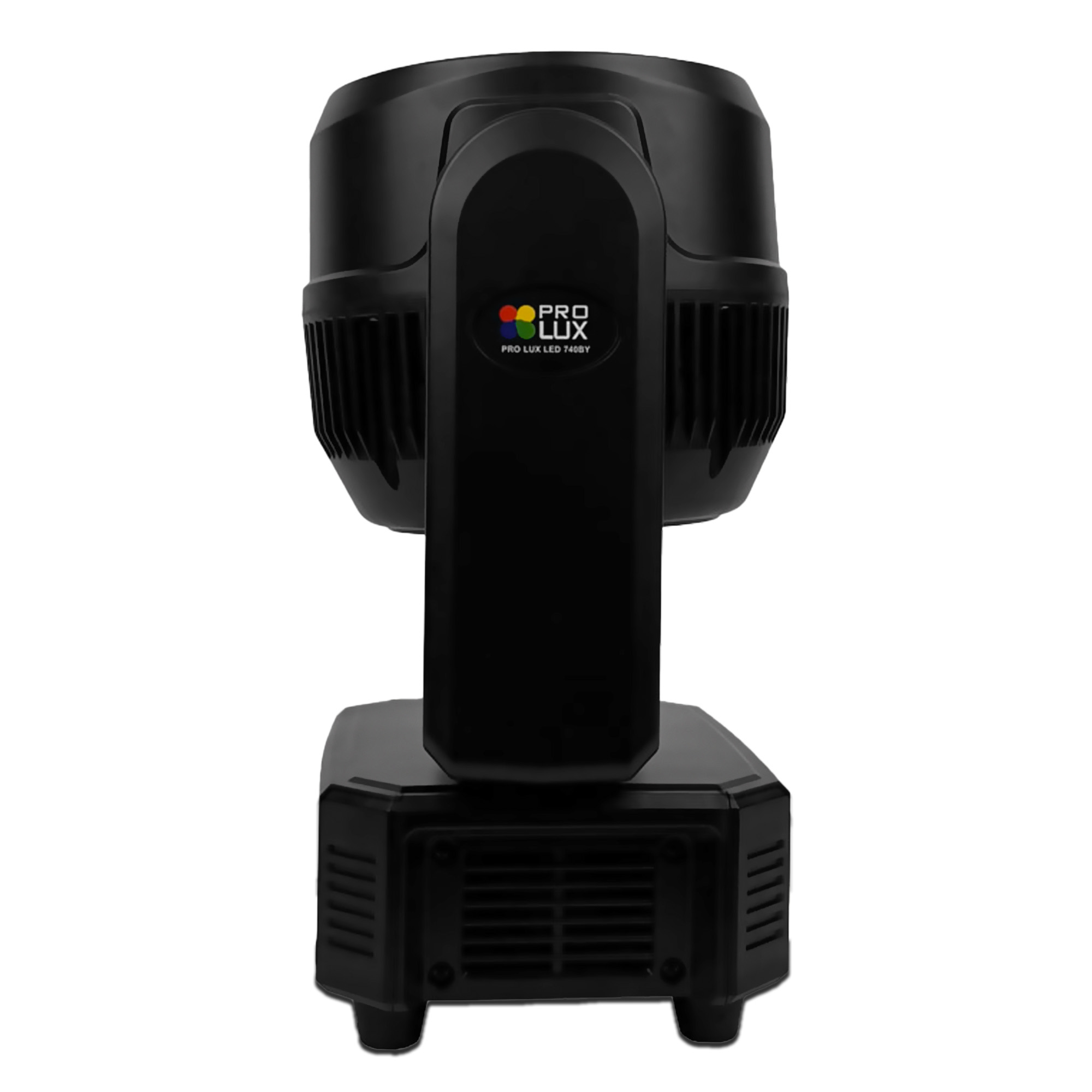

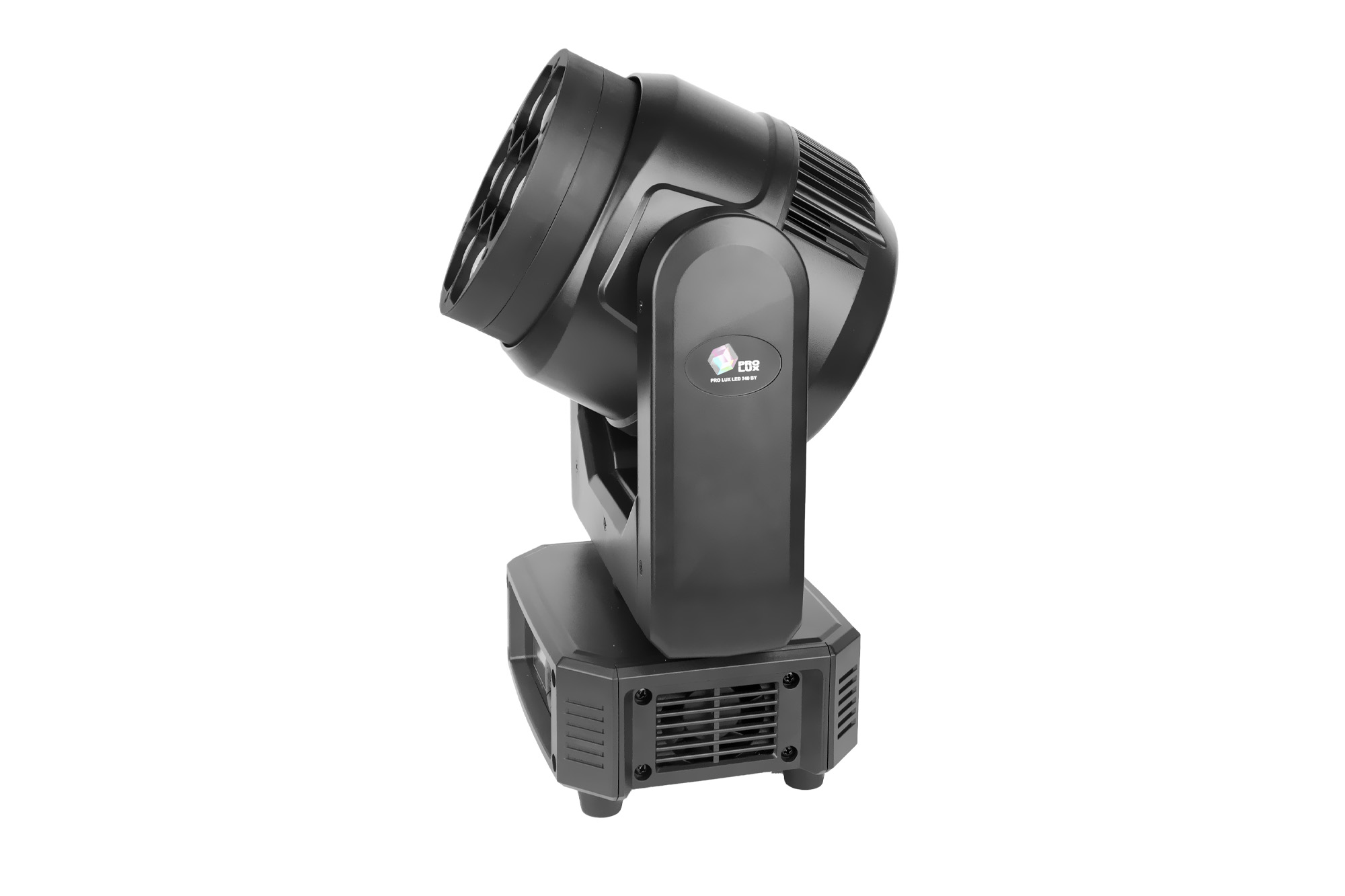

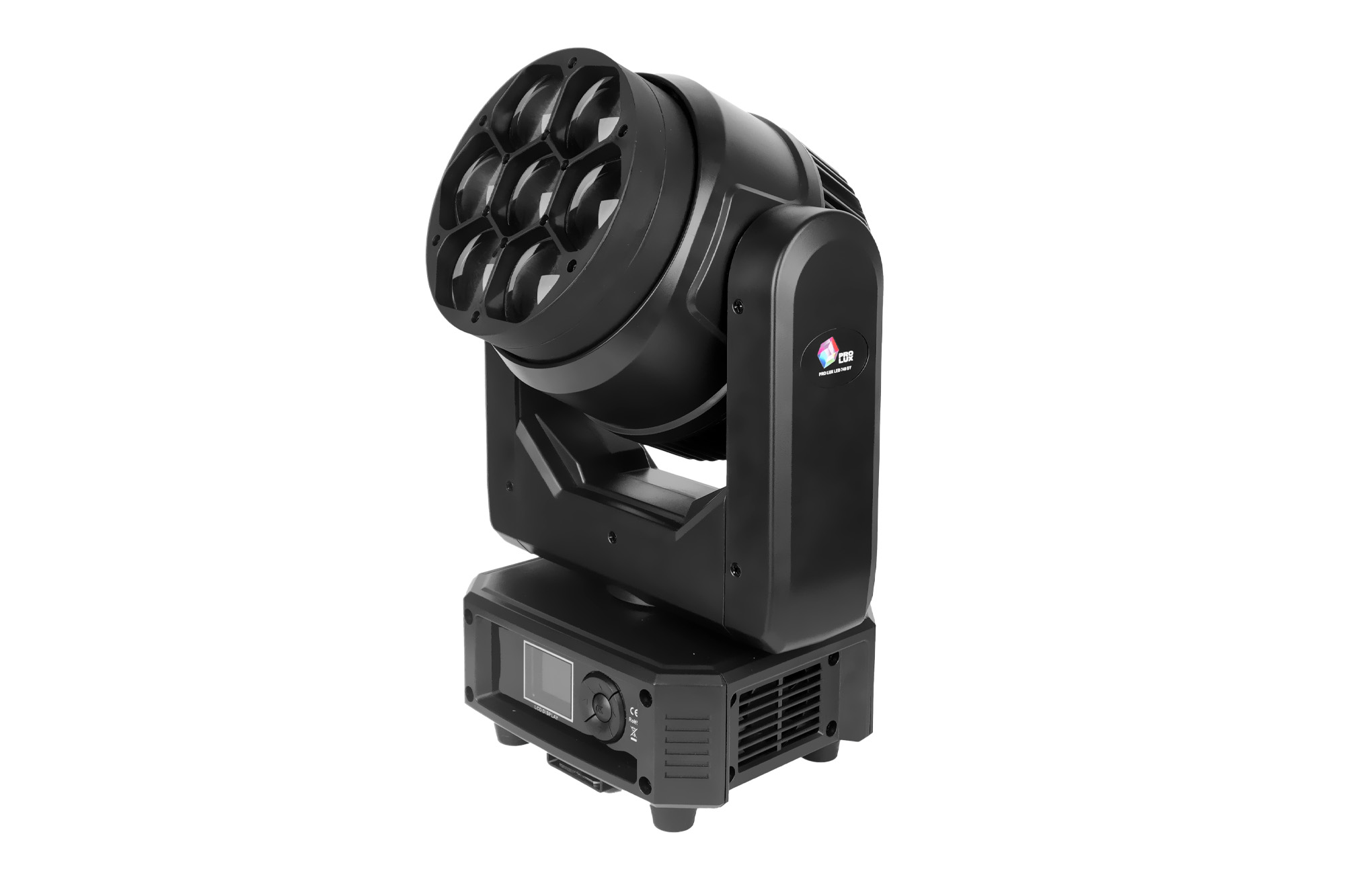

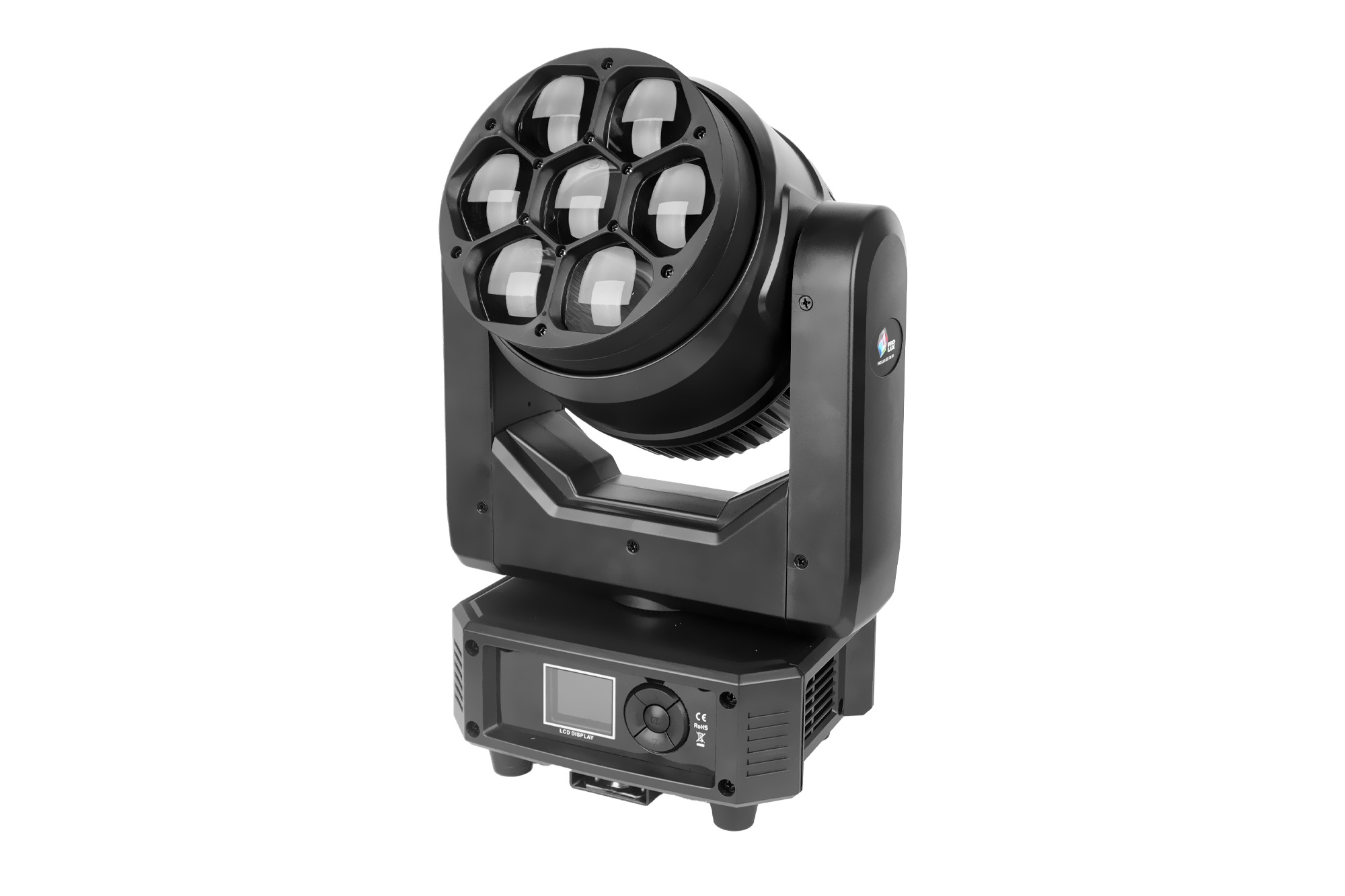

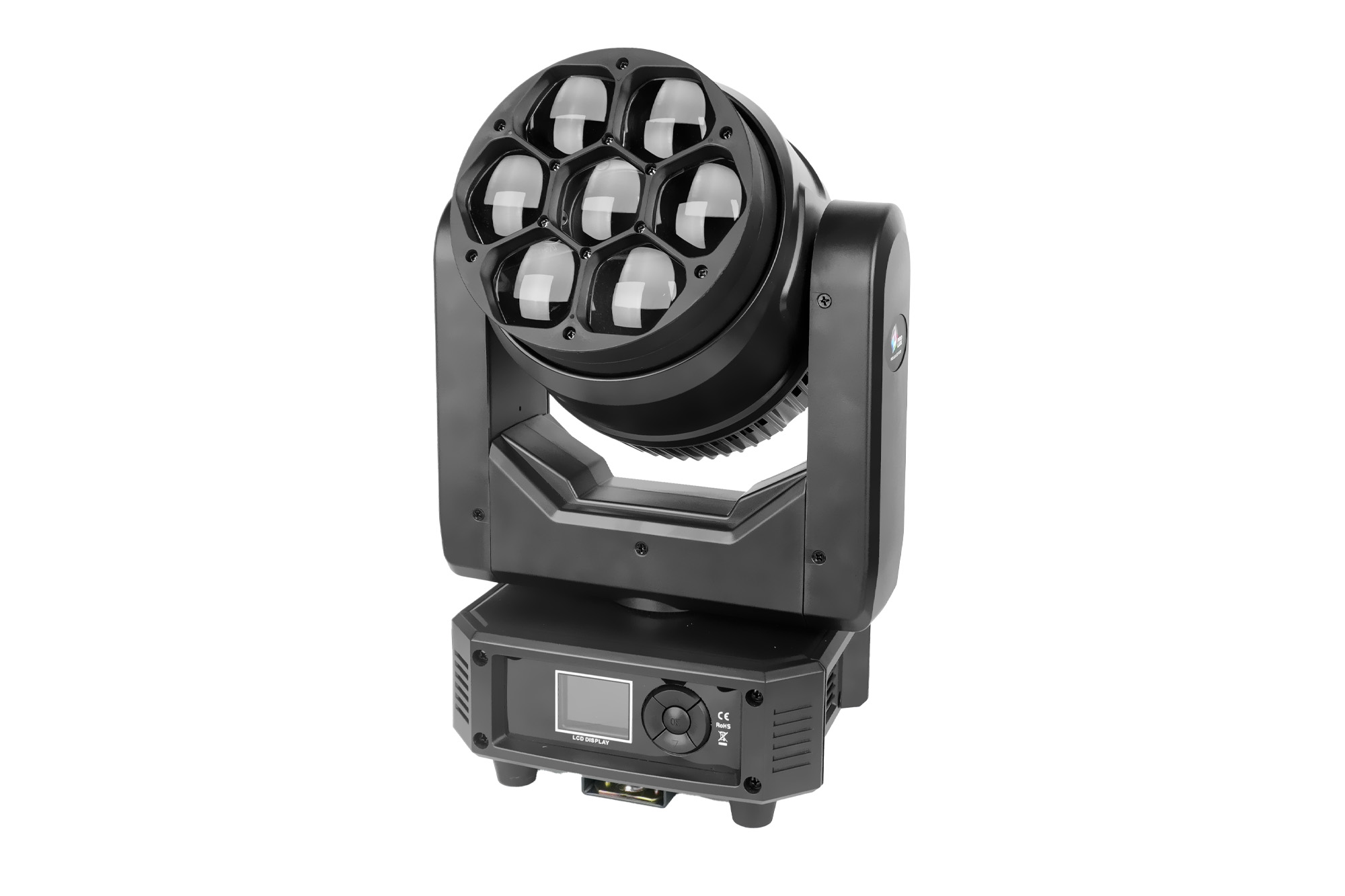

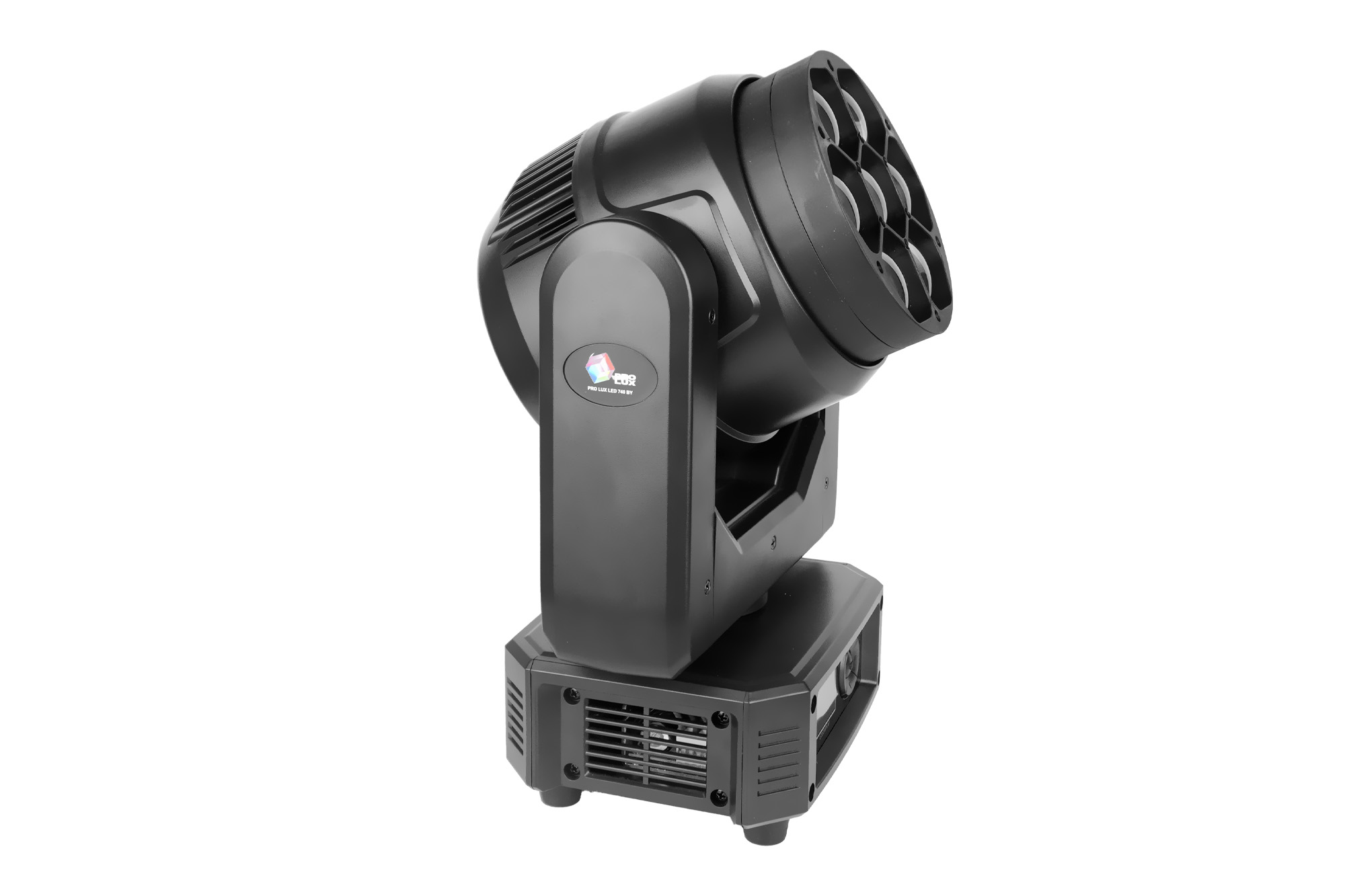

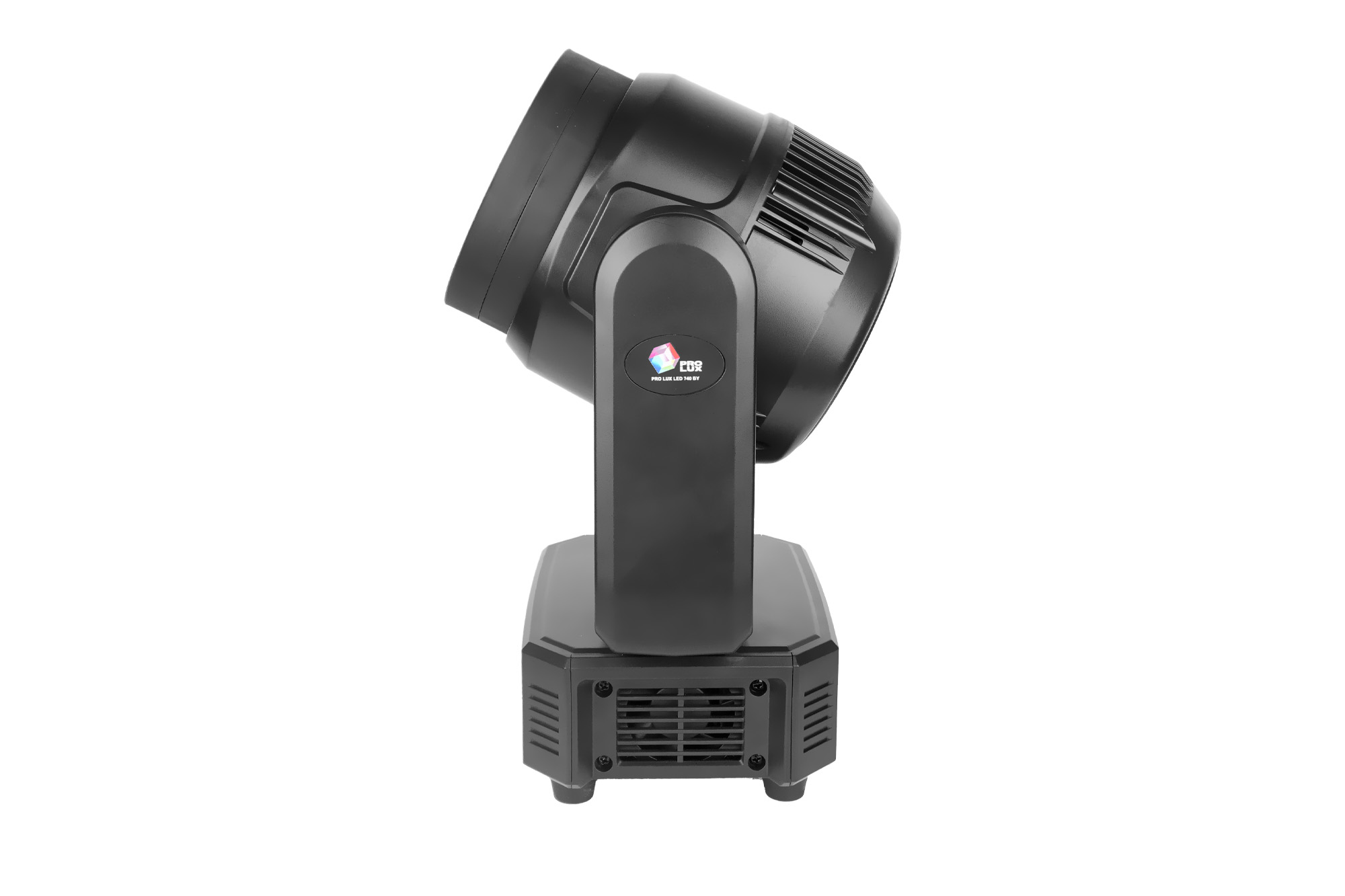

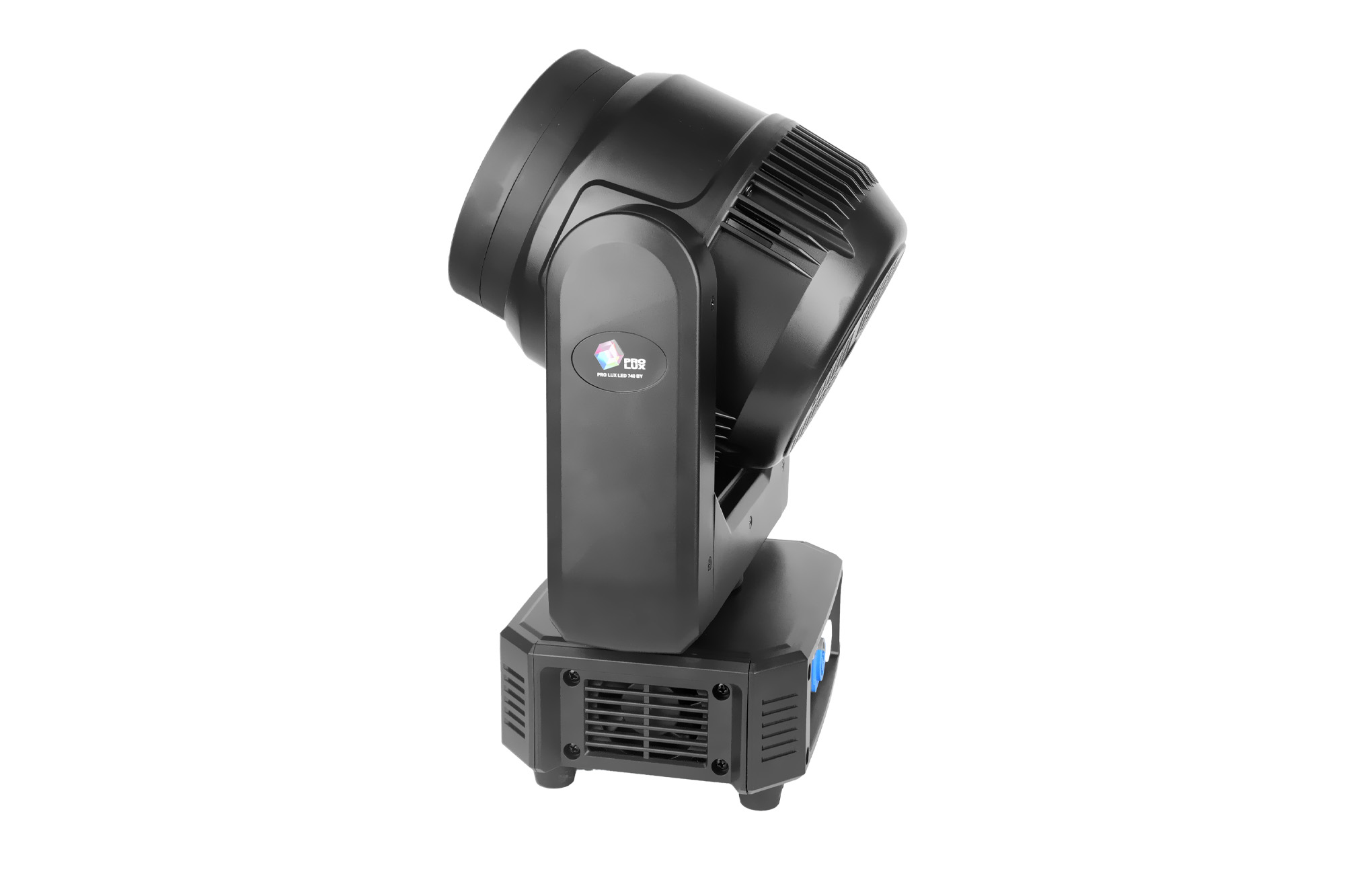

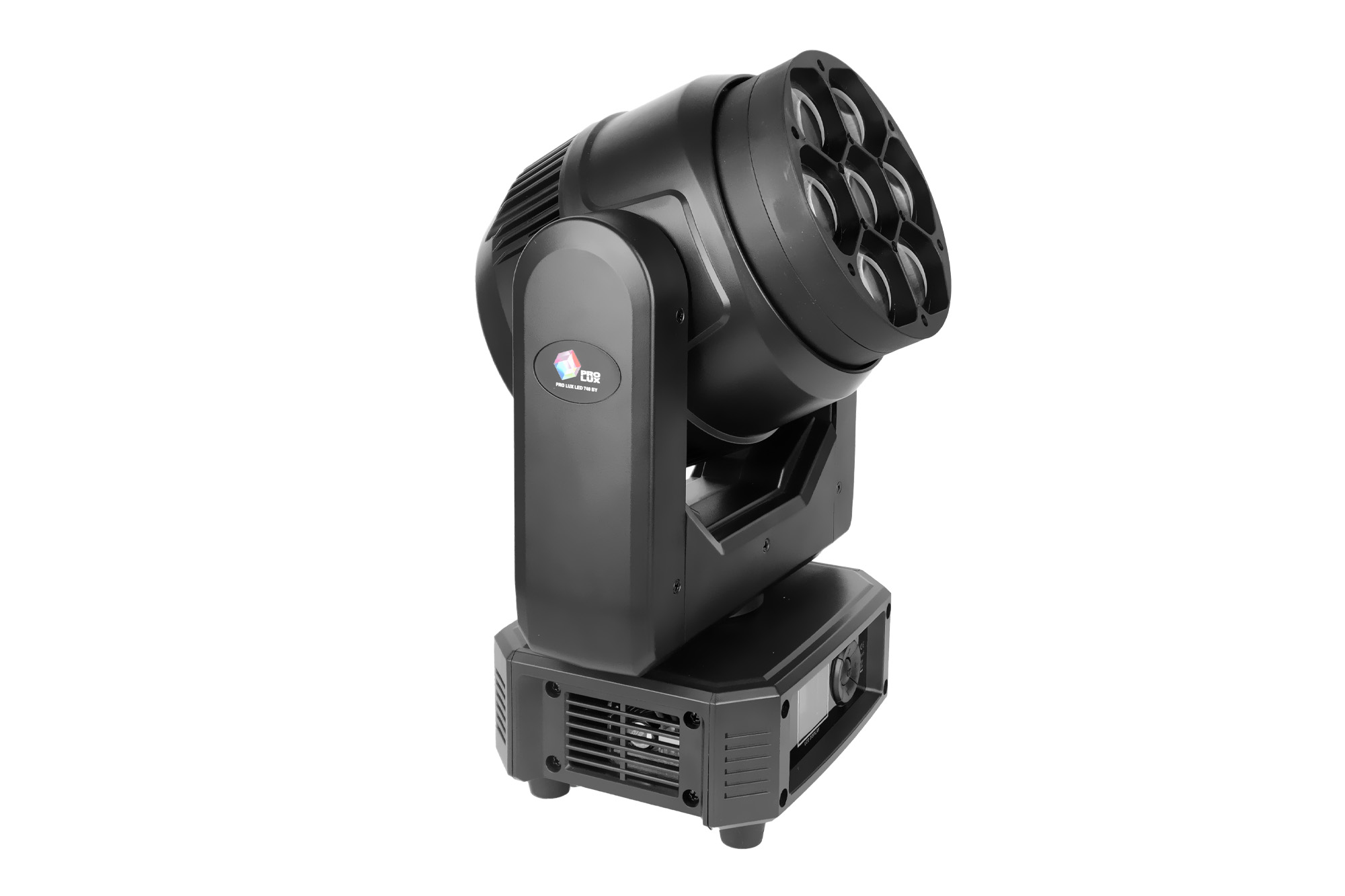

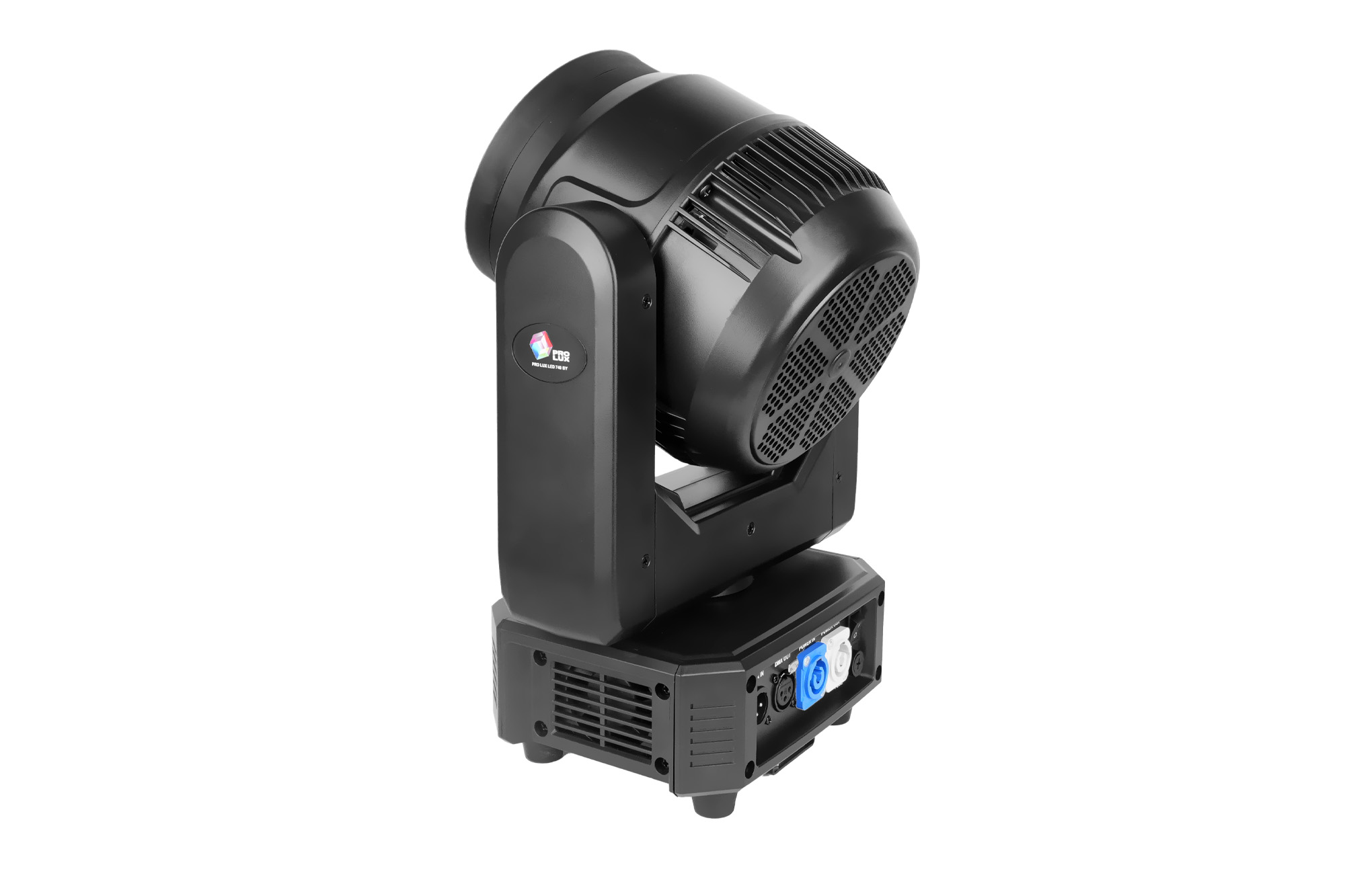

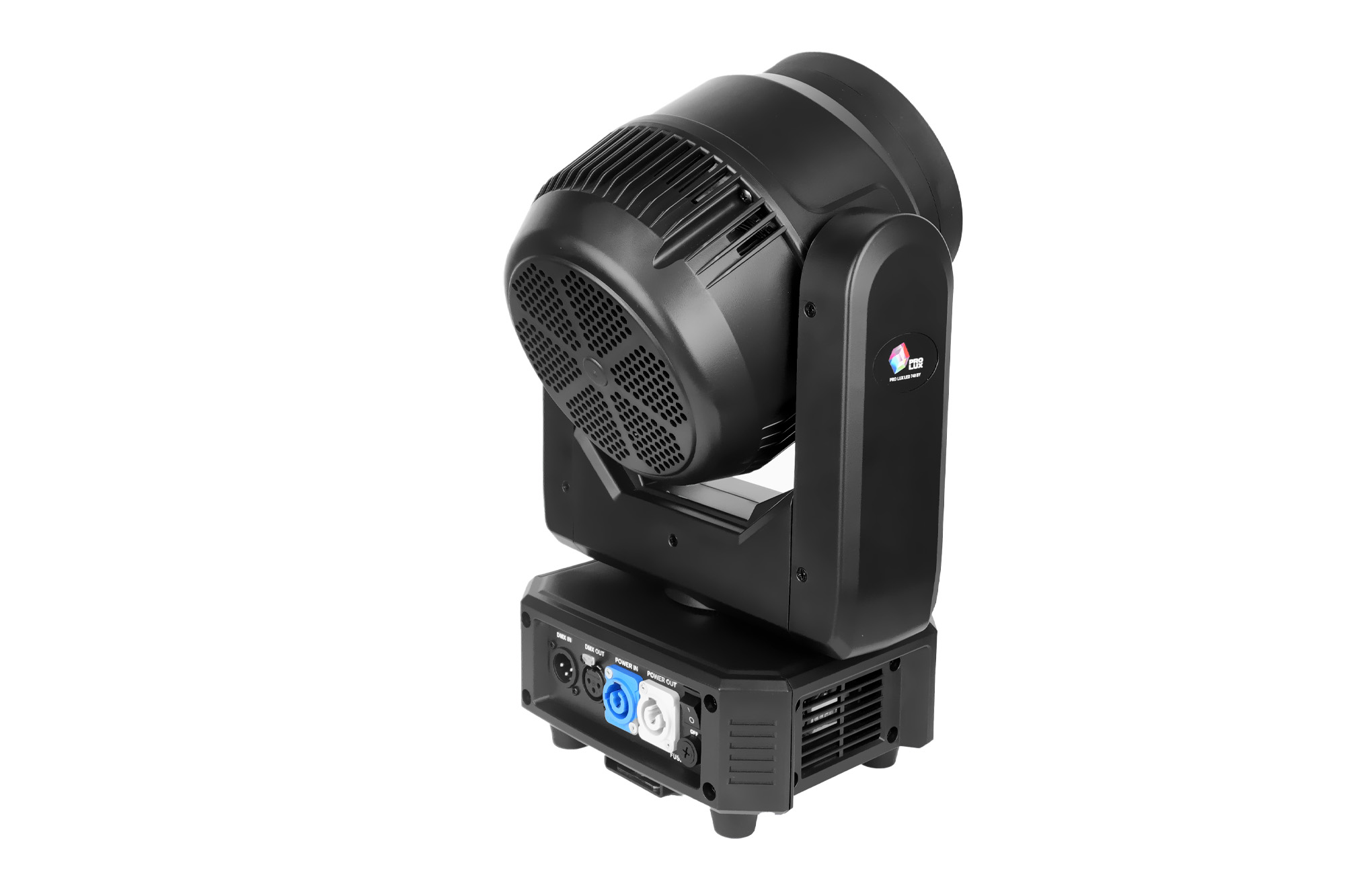

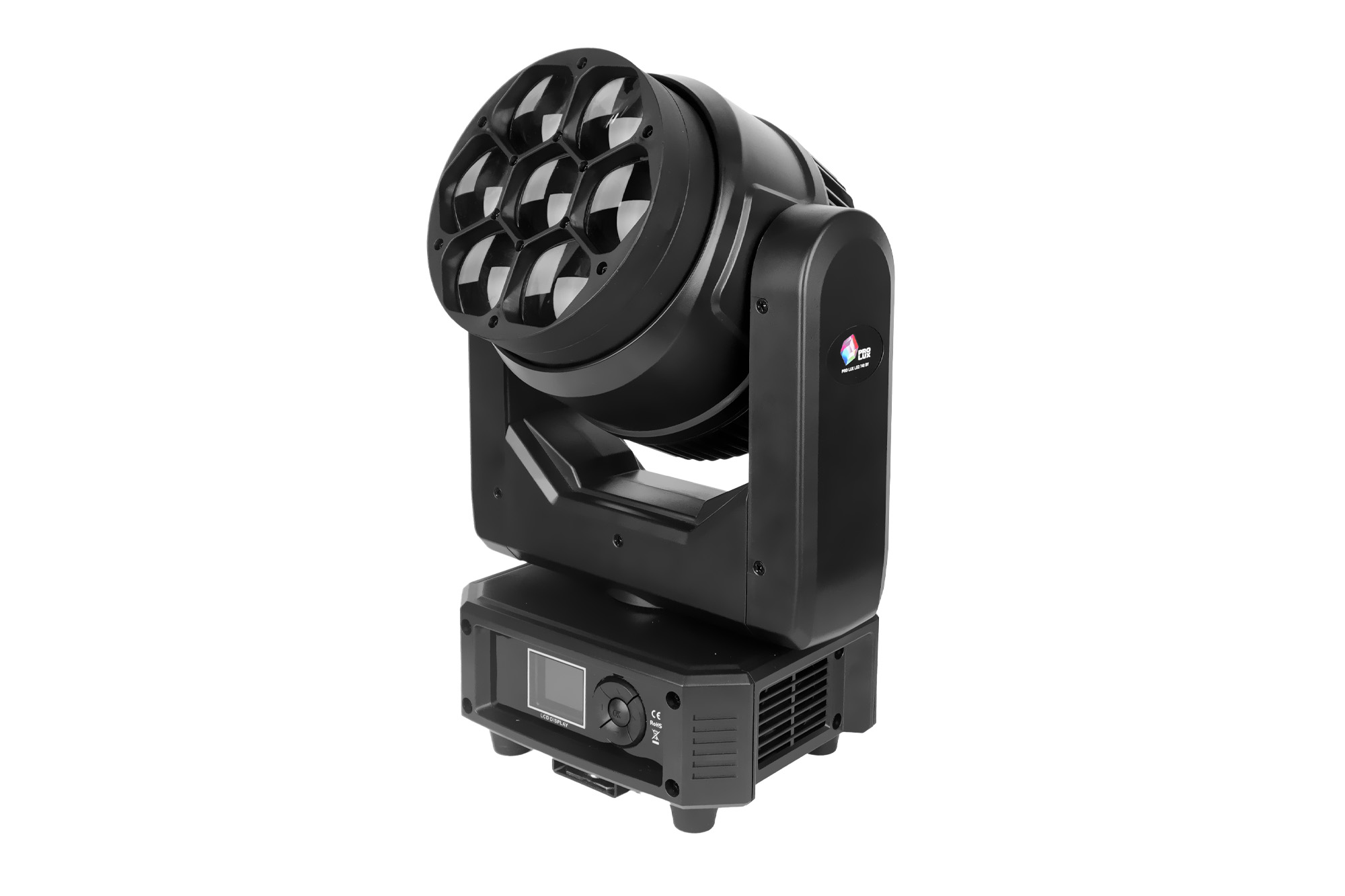

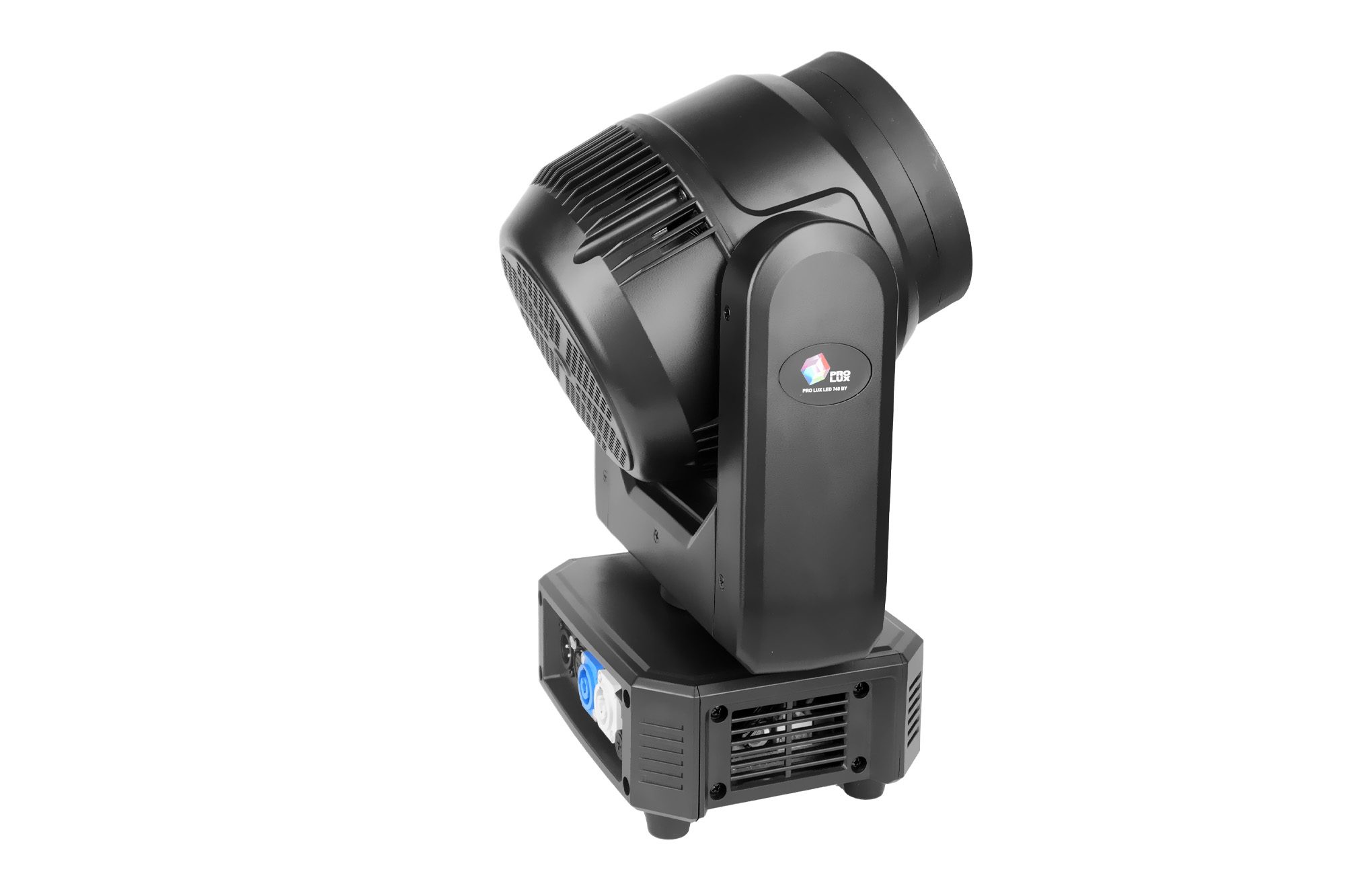

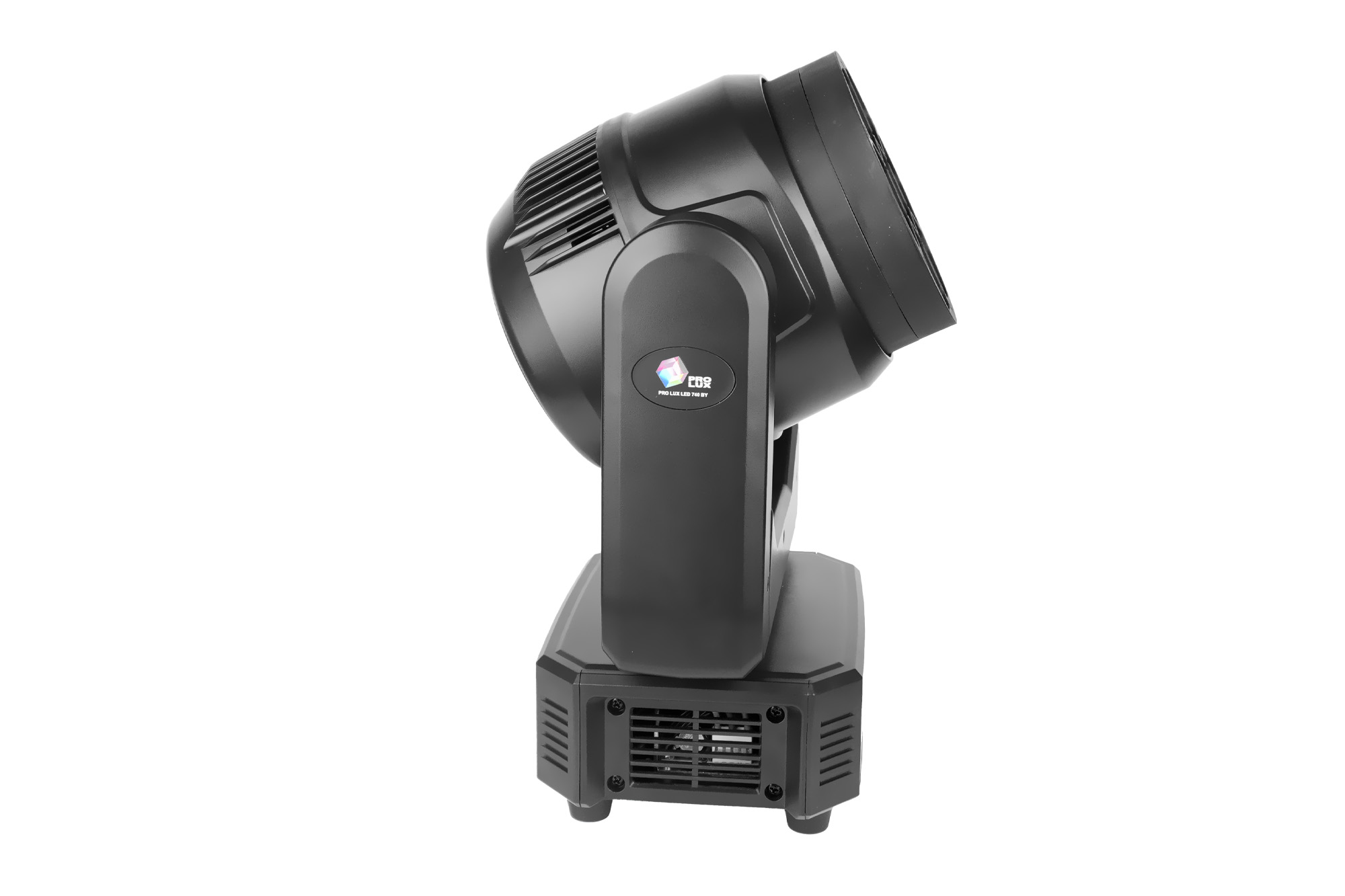

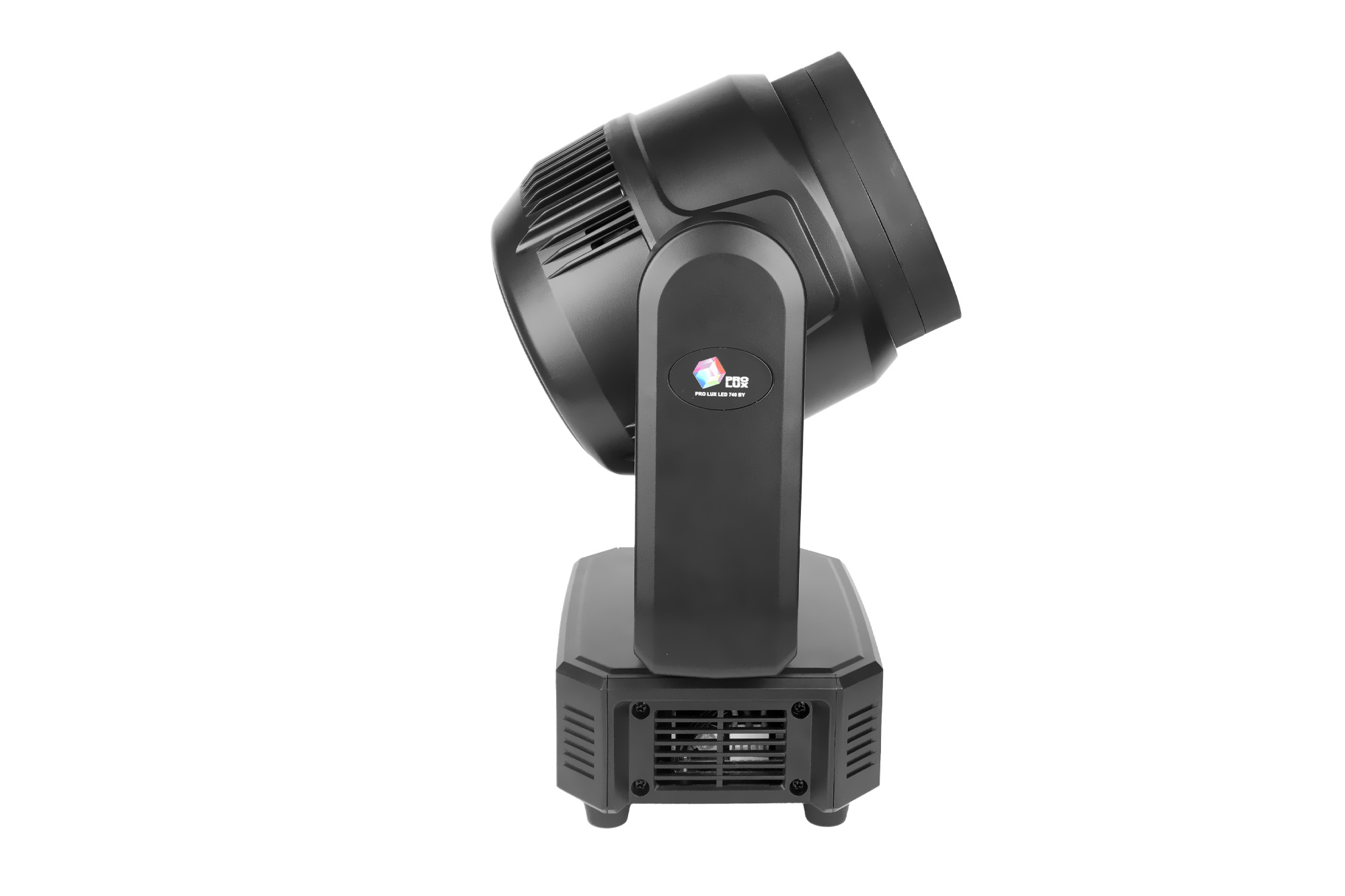

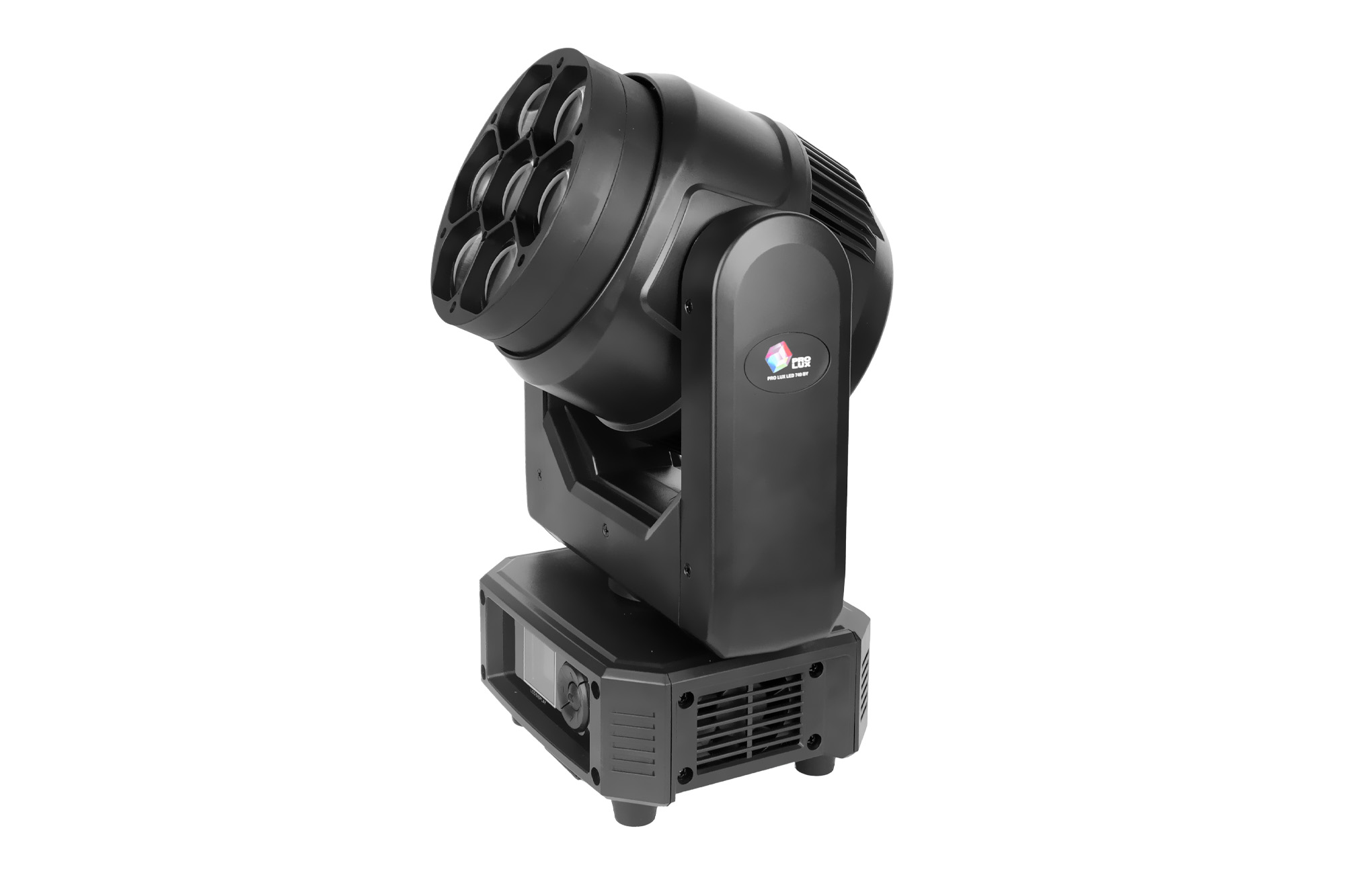

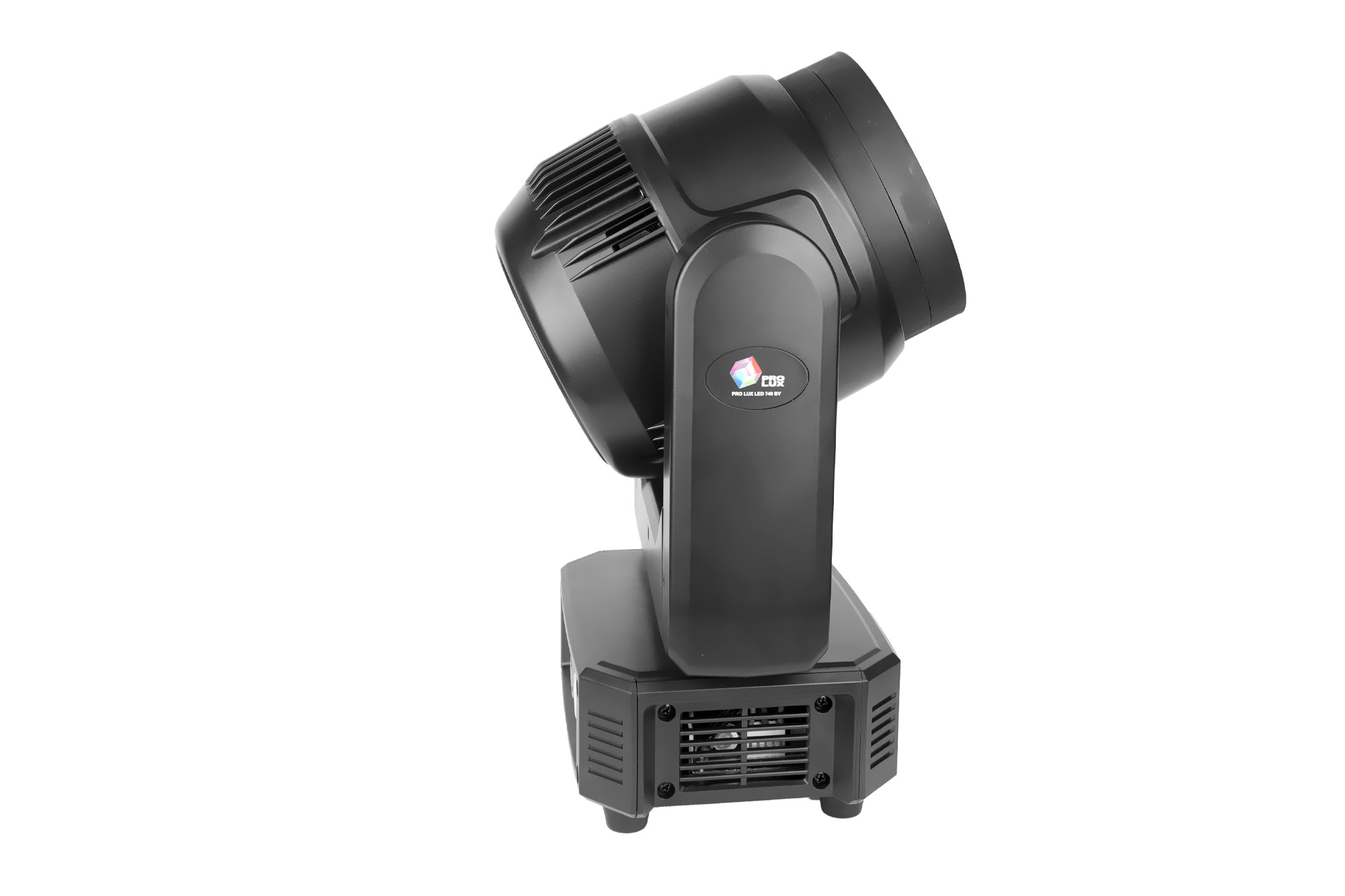

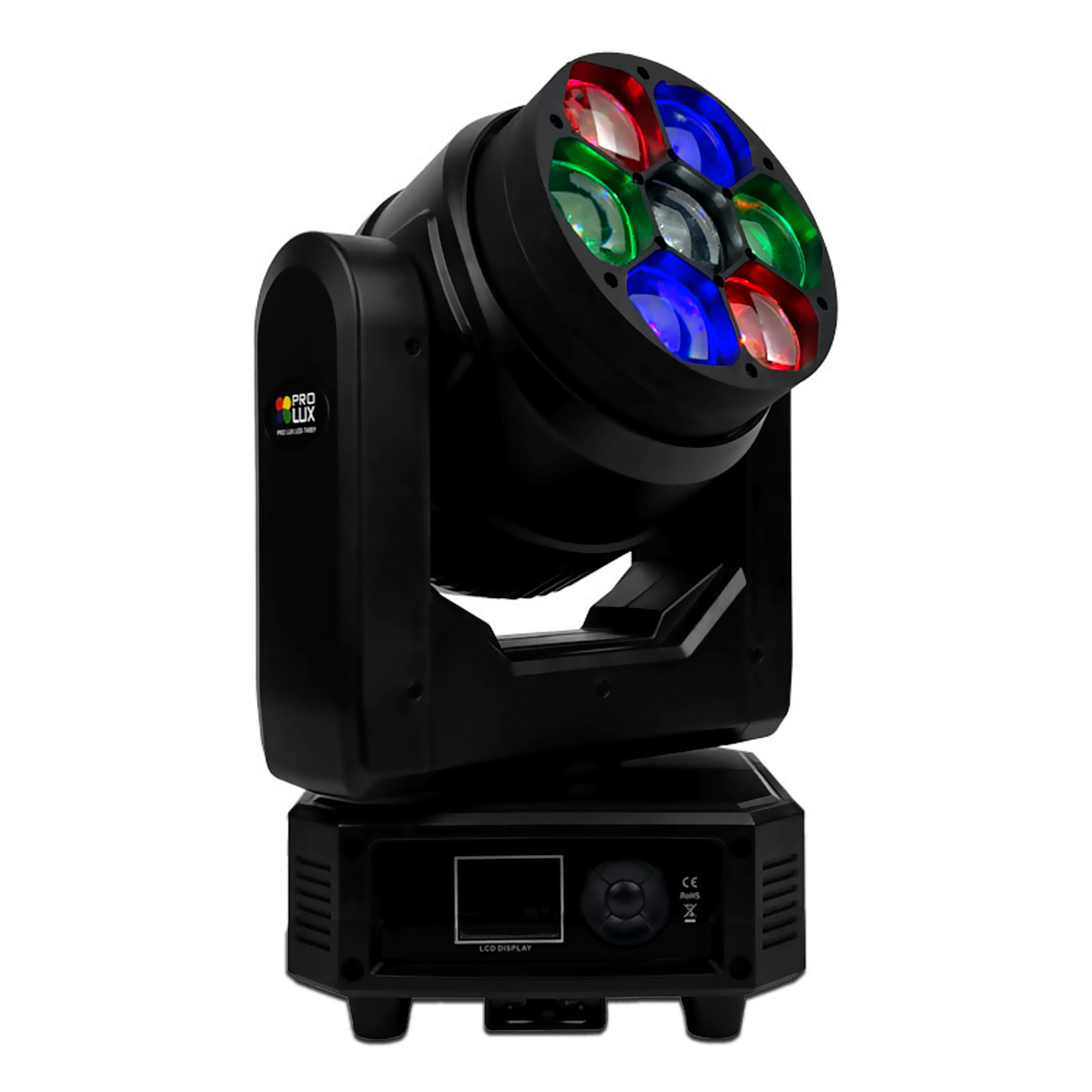

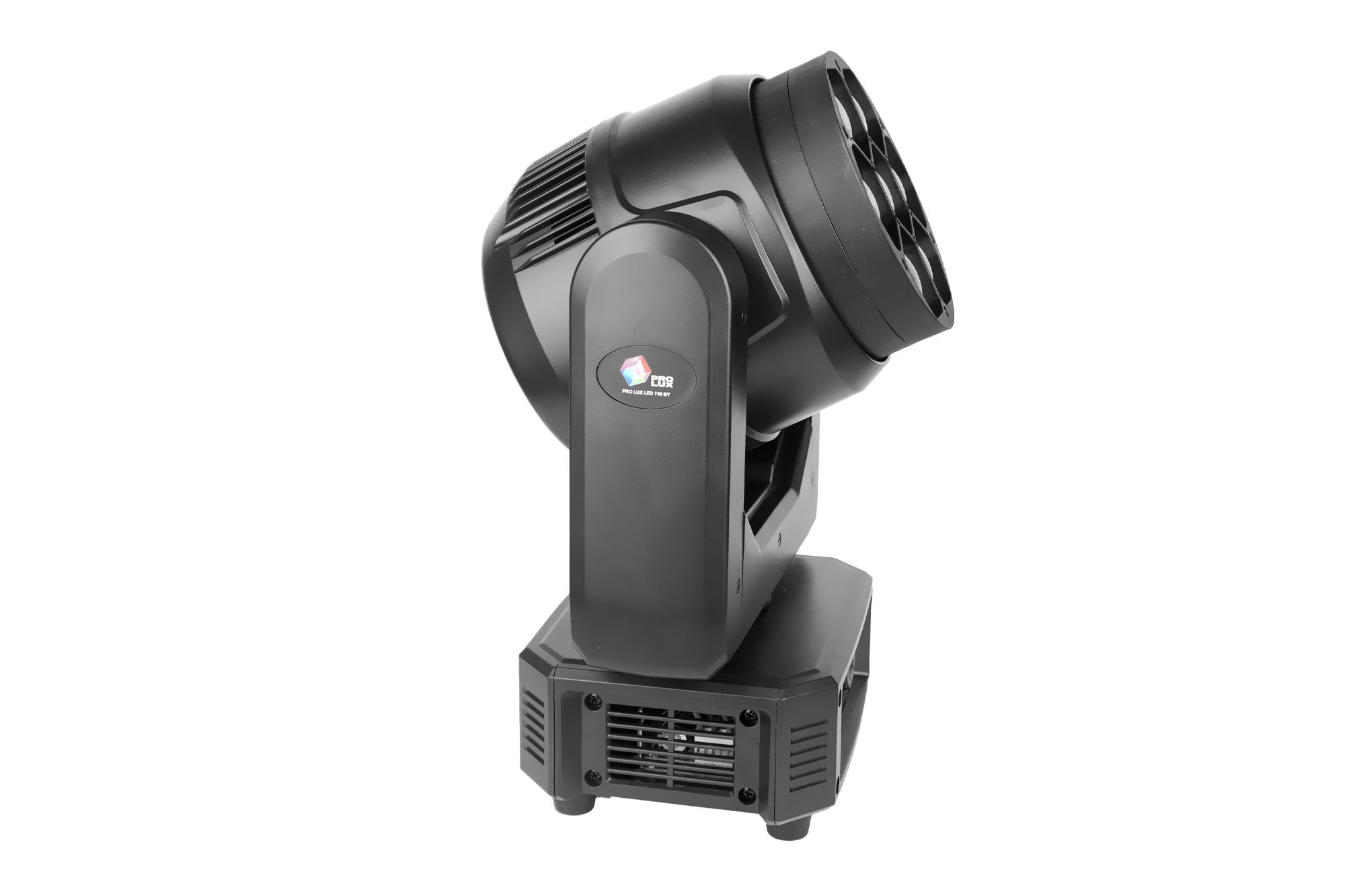

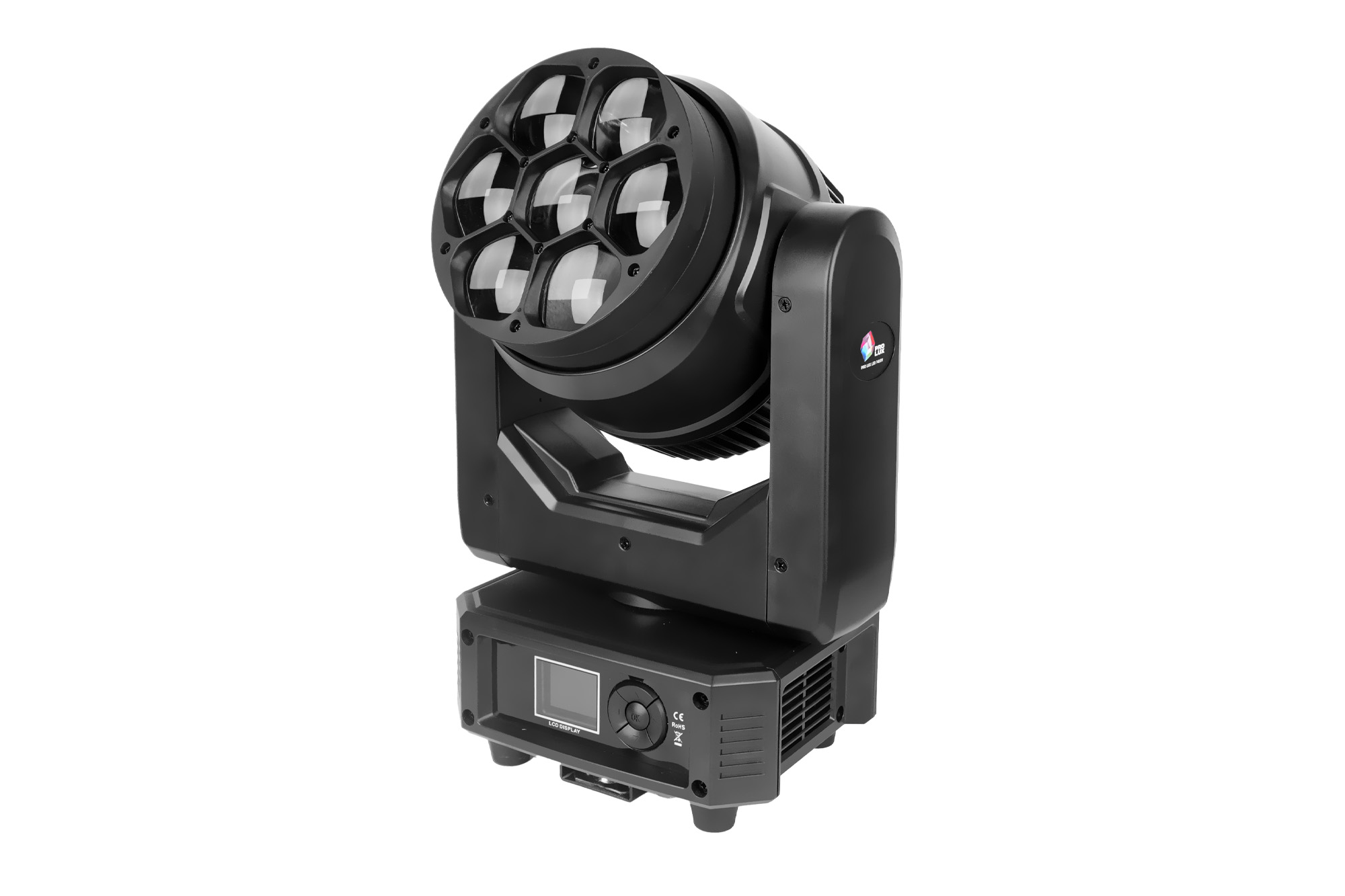

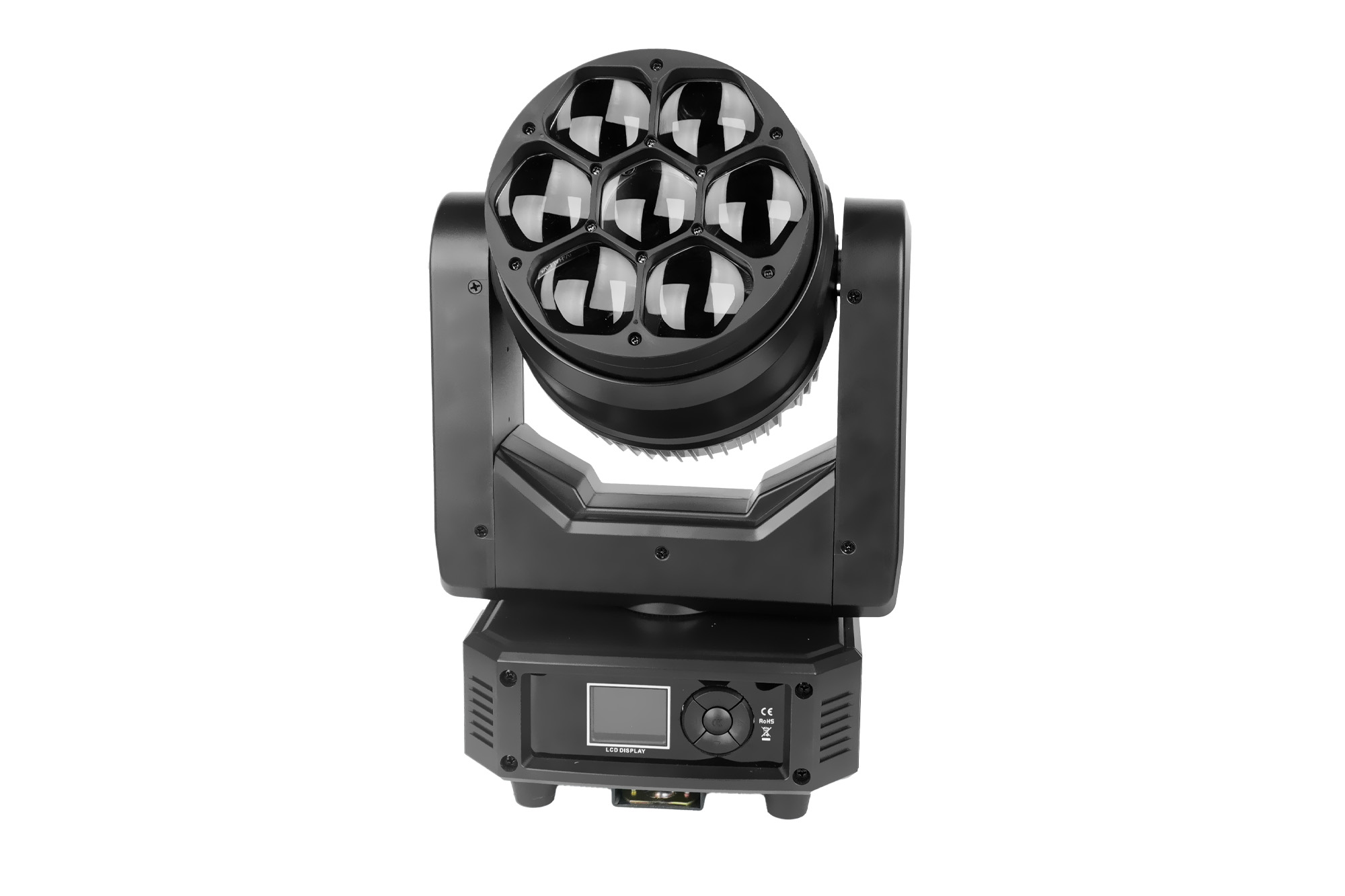

PRO LUX LED 740 BY

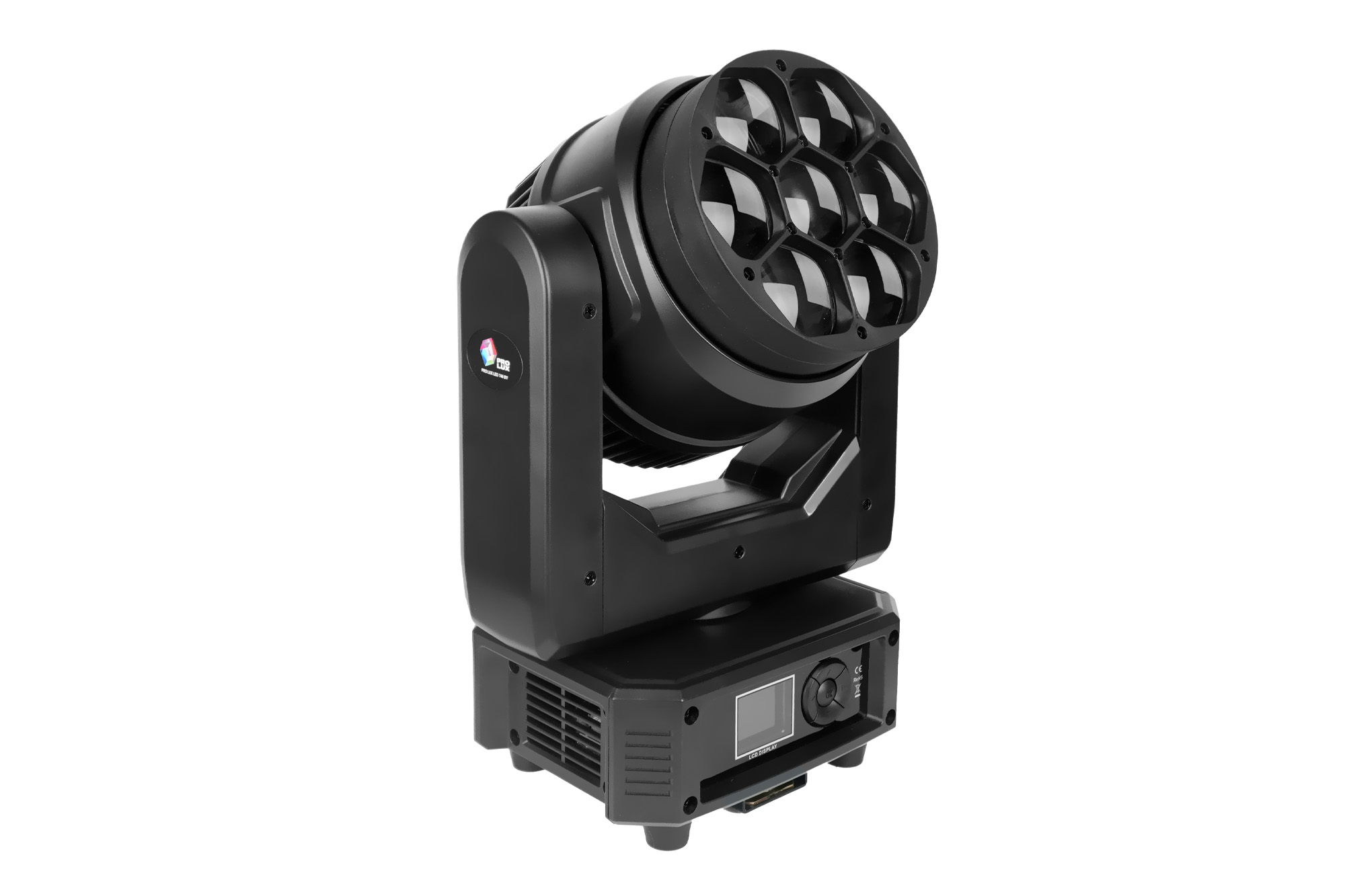

The compact moving head provides blur and kaleidoscope effects with accurate and rich colors thanks to powerful RGBW LEDs. High effective 40 Watt LEDs, wash-beam with narrow beam angle, rotating lens, pixel effects gives many possibilities for usage in different ways like clubbing, theatres, TV etc. Reliability spare parts allow to use this lights in touring.
| Source | |
| LED | 7 pcs 40W each RGBW 4-in-1 |
| Lifespan | 50 000 hours |
| Optical system | |
| Beam angle | 5° – 45° |
| Zoom | Linear motorized |
| Double rotation lens | |
| Functions | |
| Color mixing | RGBW |
| Available colors | Over 16 700 000 |
| Kaleidoscopic effect | |
| Linear colorchanger | |
| Pixel shaping effects | Static and dynamic with adjustable speed |
| Pixel mapping | Indiviual control for each LED |
| CTO | |
| Strobe | Electrical 1-20 fps |
| Dimer | Electrical 0-100% |
| Control | |

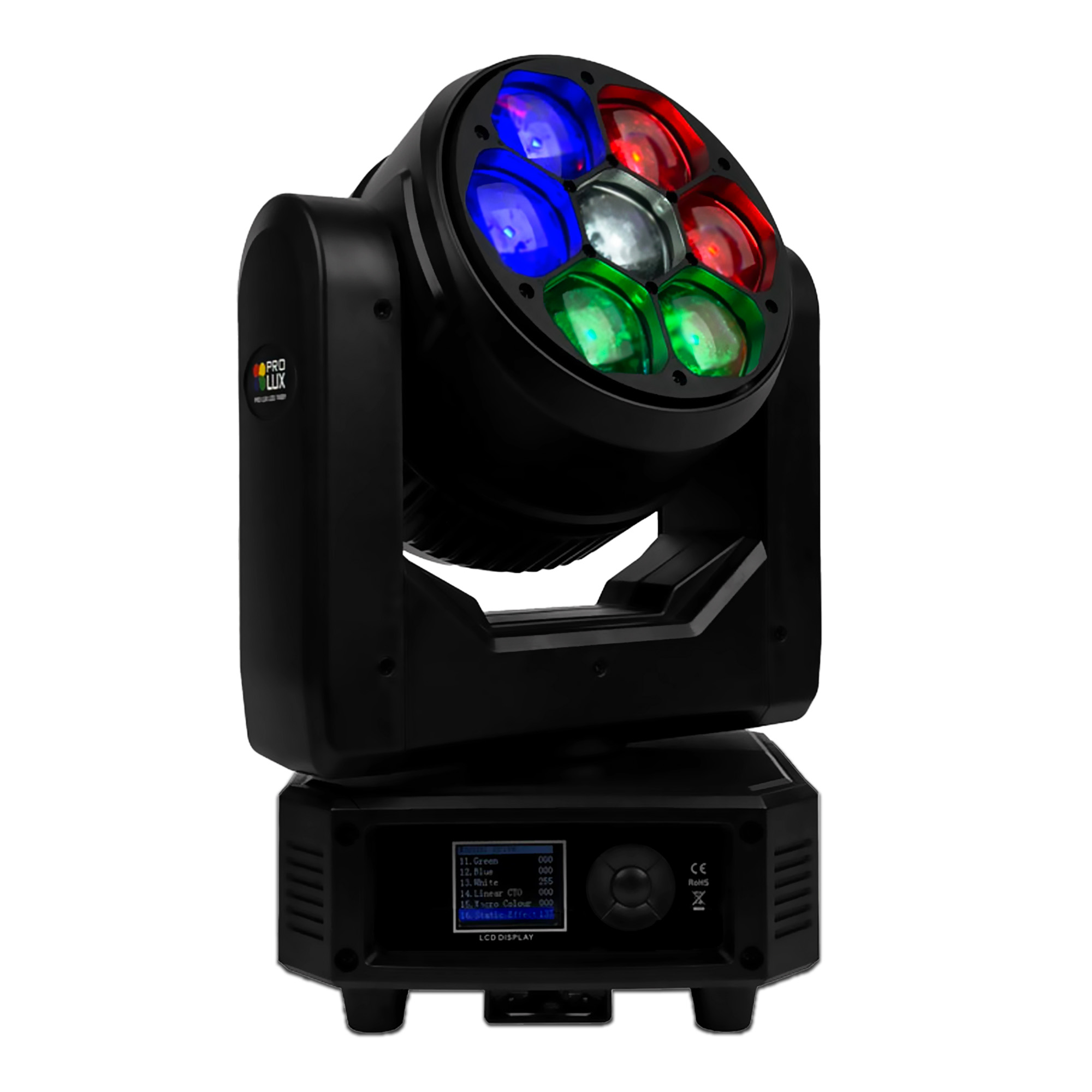

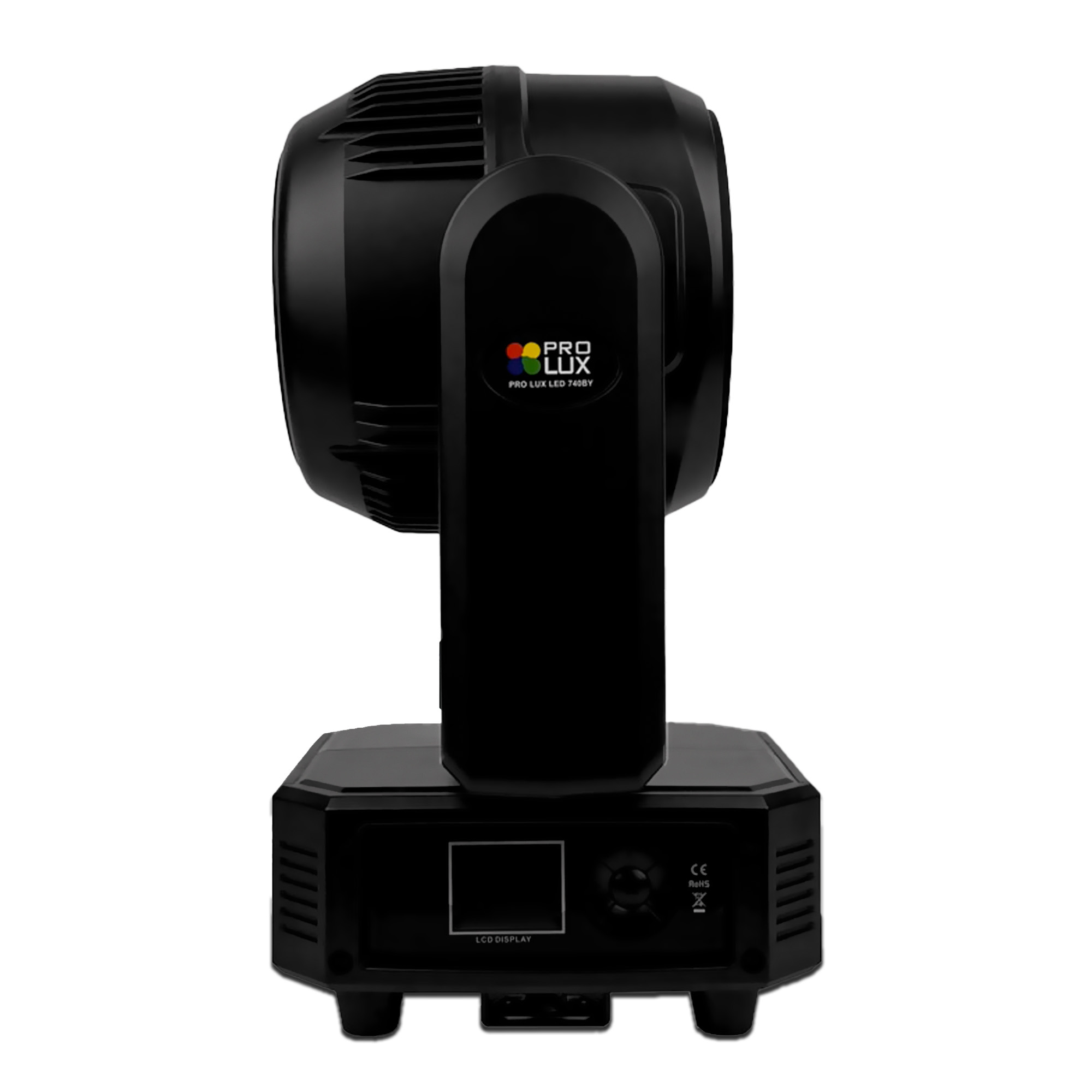

| Multifunctional LCD display | |
| DMX channels | 23/35/51 |
| Modes | DMX512/master-slave/auto/sound activation |
| Movement | |
| Pan | 540° |
| Tilt | 270° |
| Resolution | 8/16 bit |
| Lens rotation | Unlimided in both directions |
| Power supply | |
| Input | AC 110-240V, 50/60 Hz |
| Total power | |

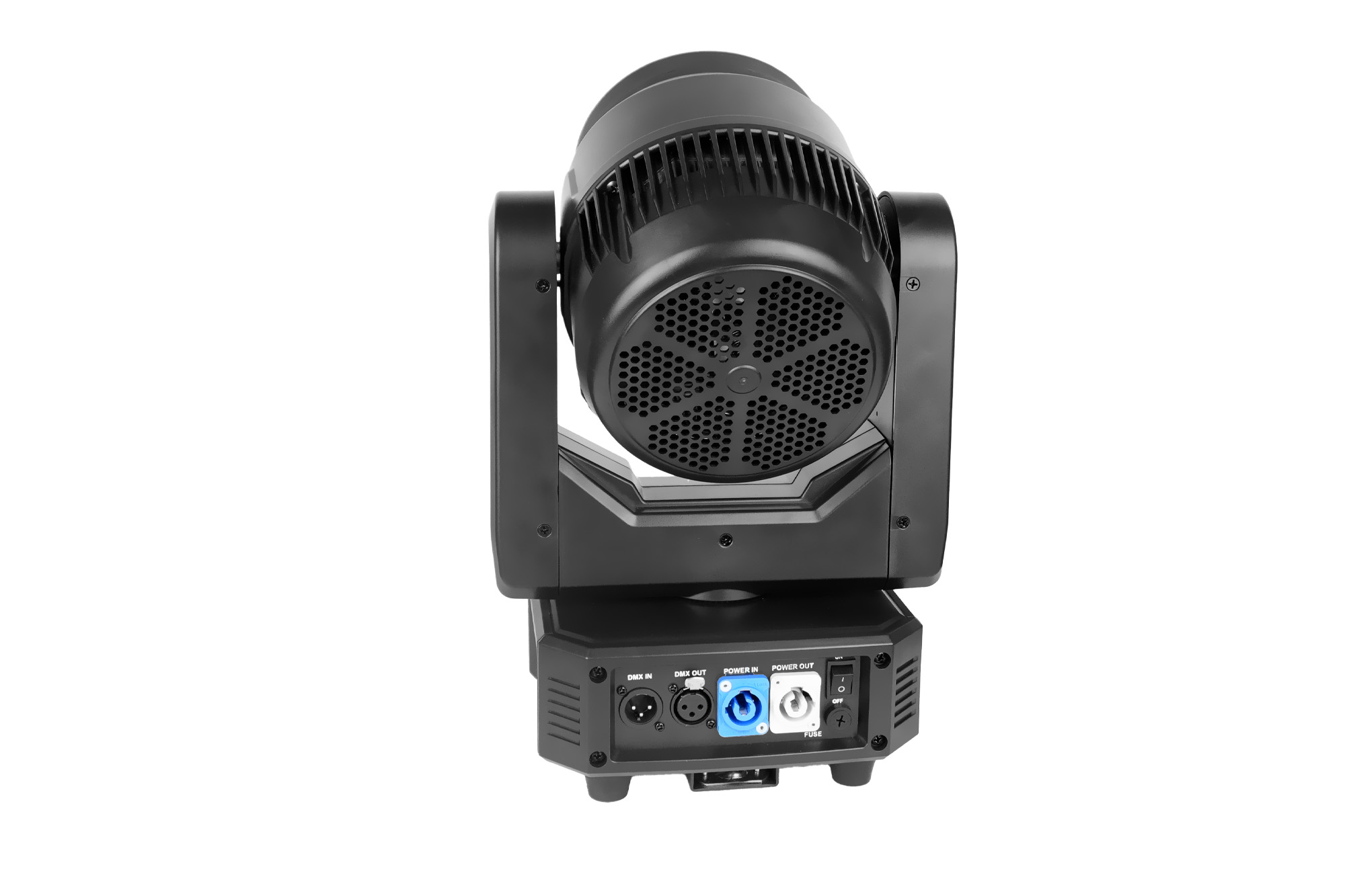

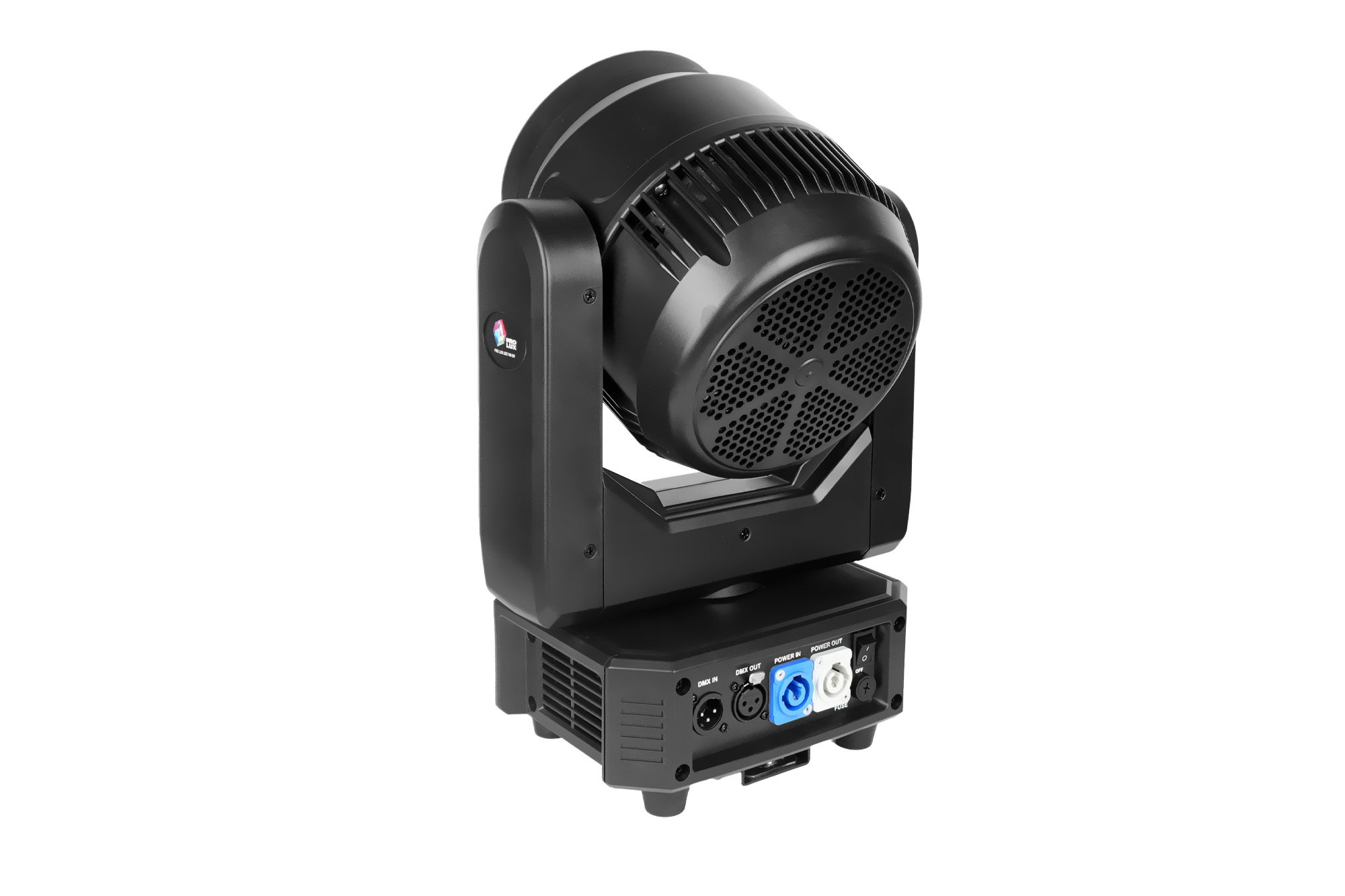

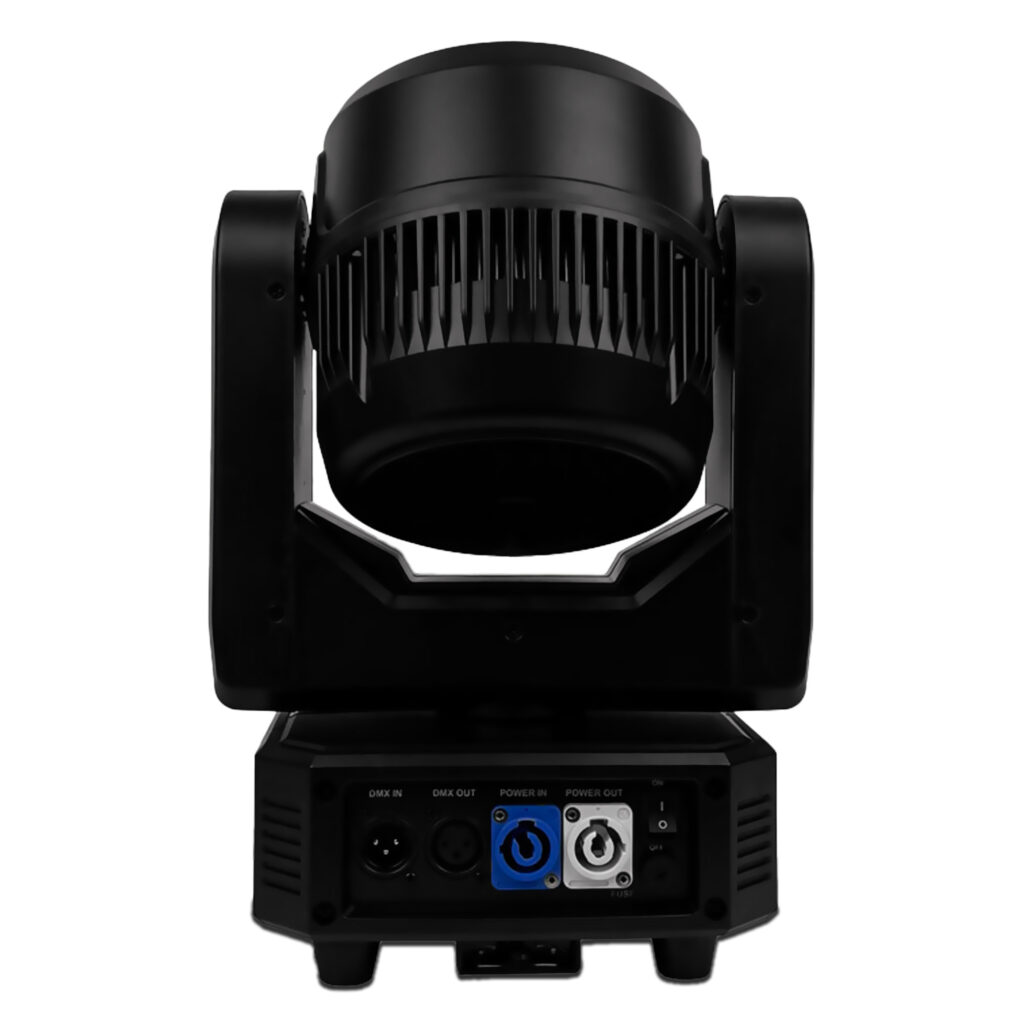

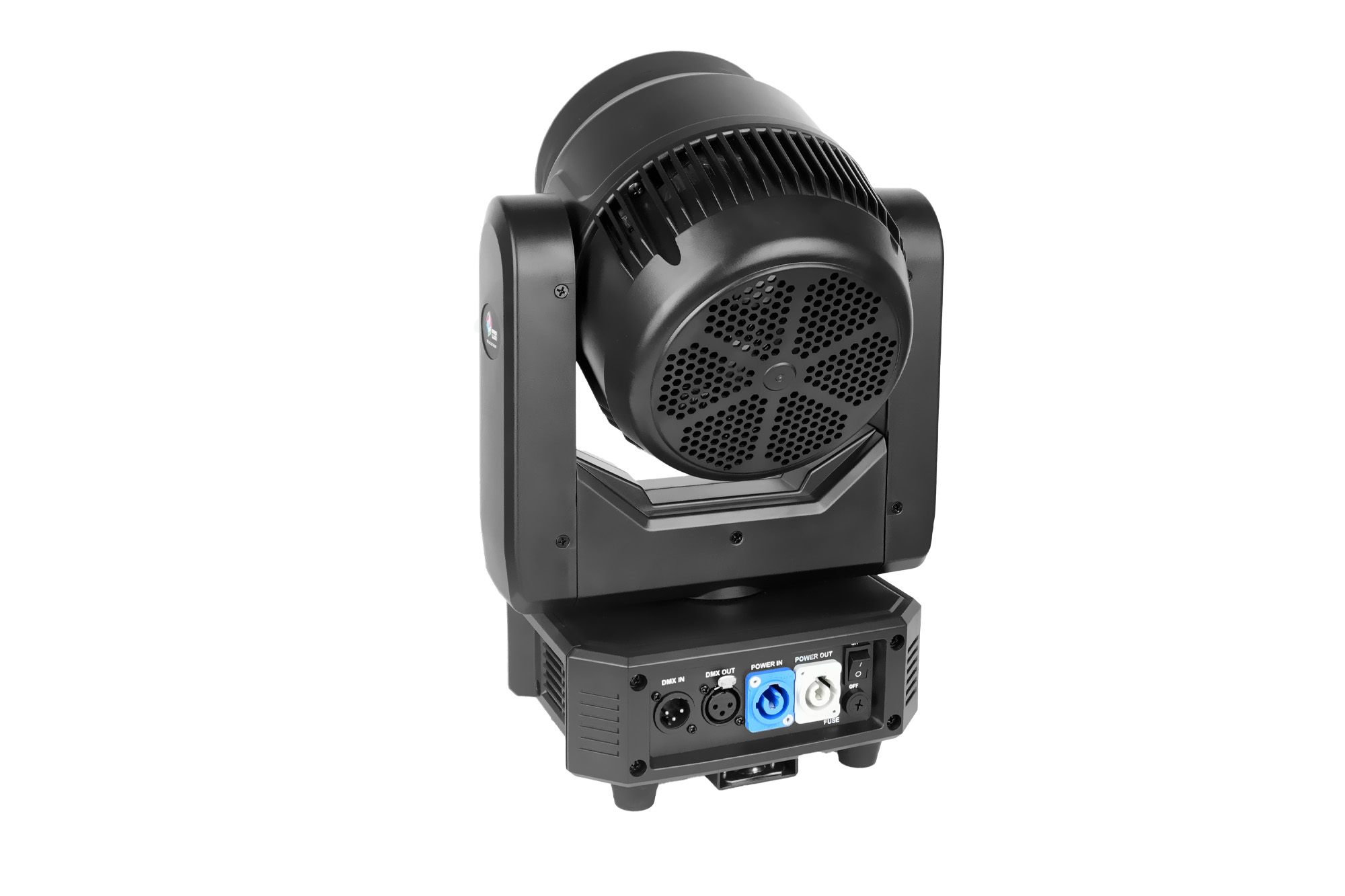

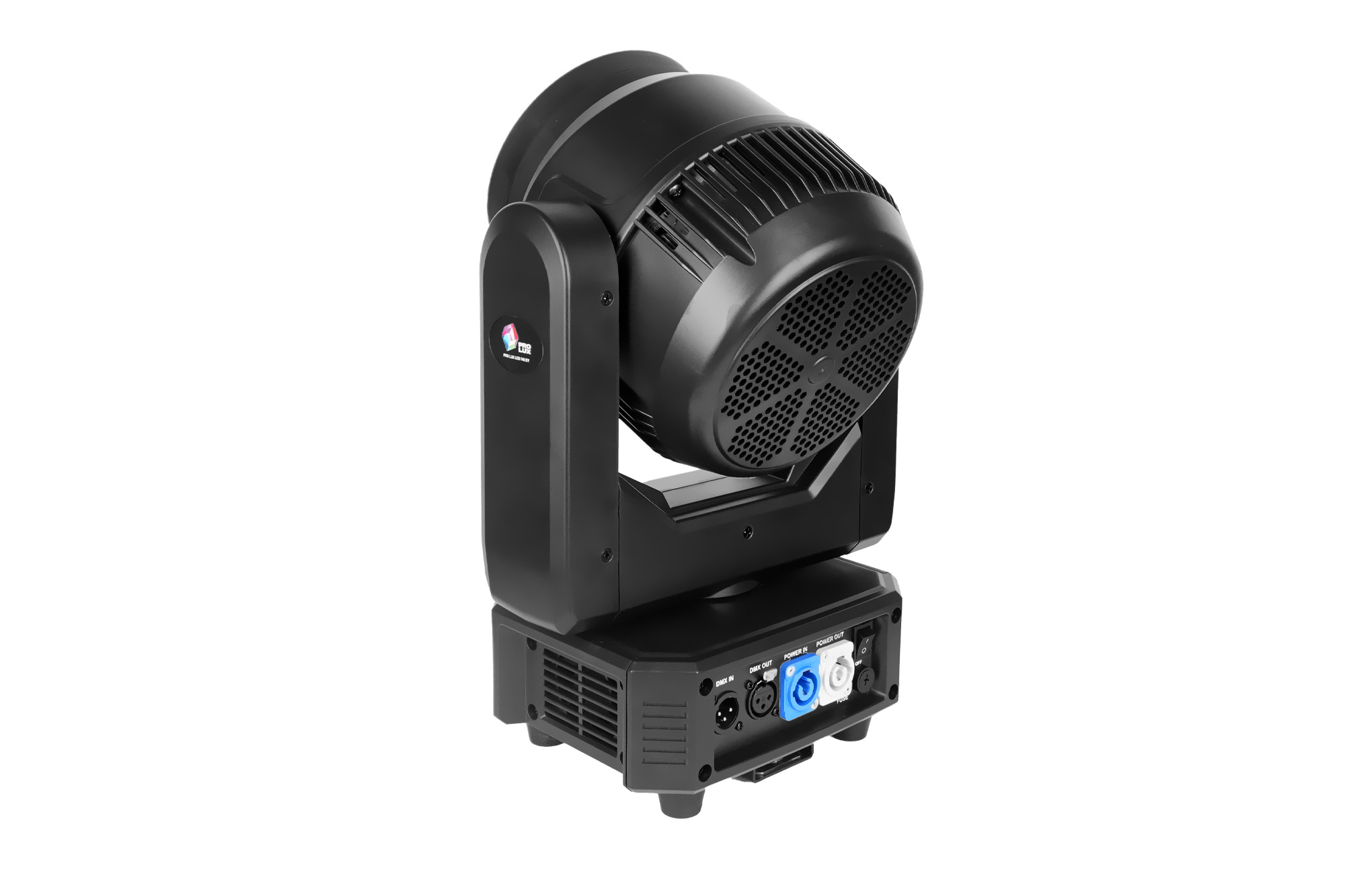

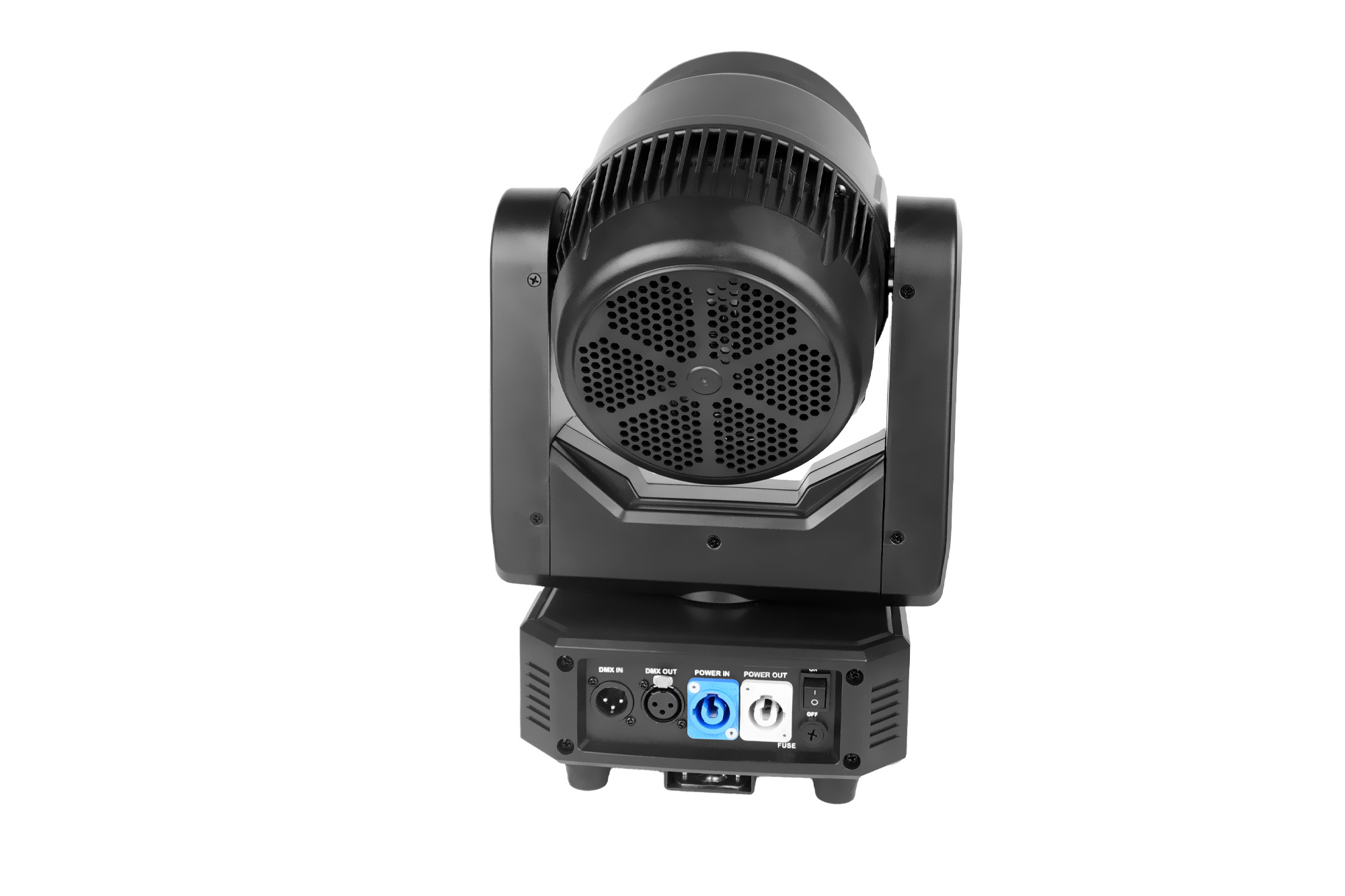

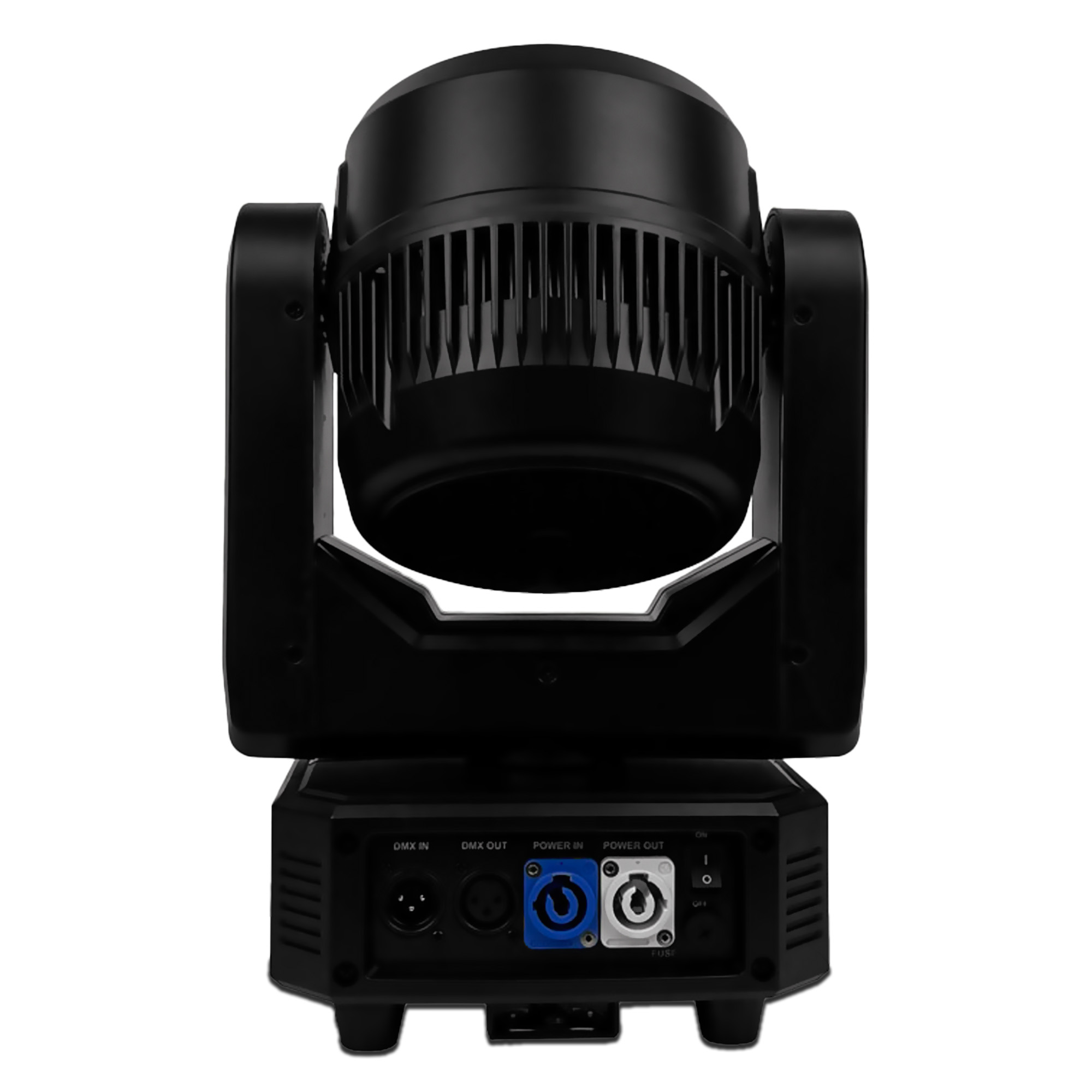

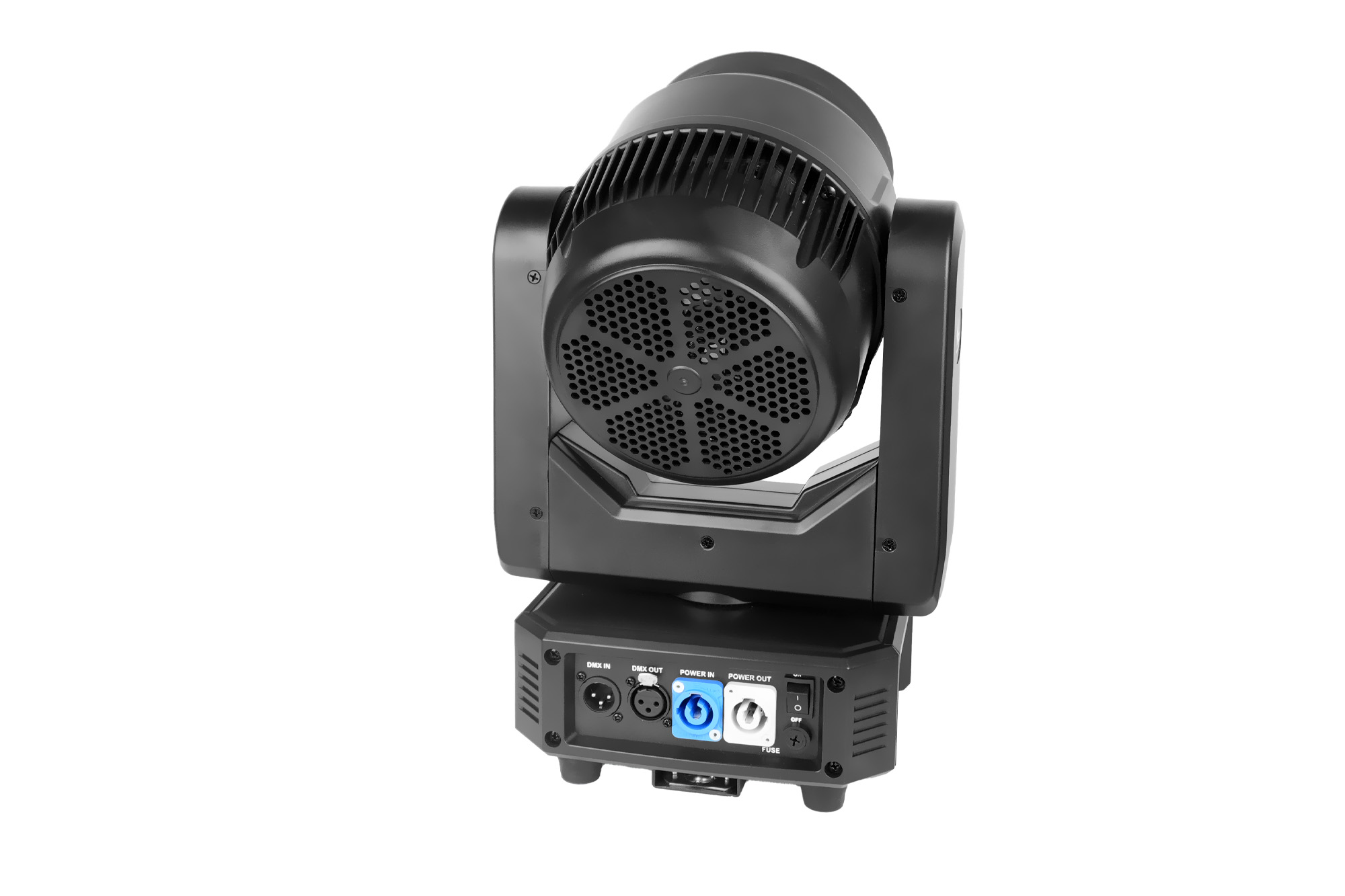

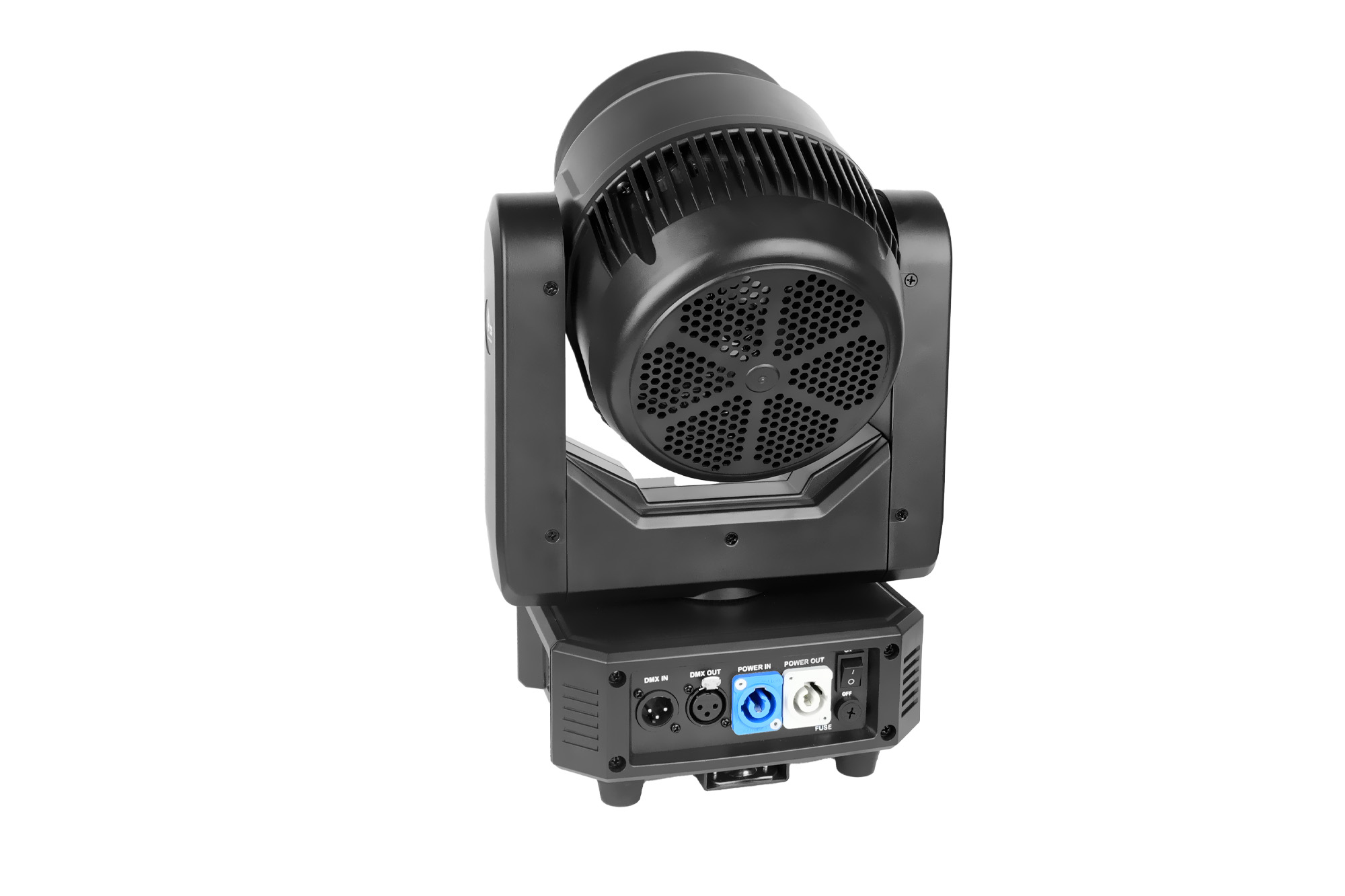

| Connections | |
| DMX512 | Neutric XLR 3-pin in/out, XLR 5-pin in/out |
| Art-Net | Optional |
| Power | powerCON in/out |

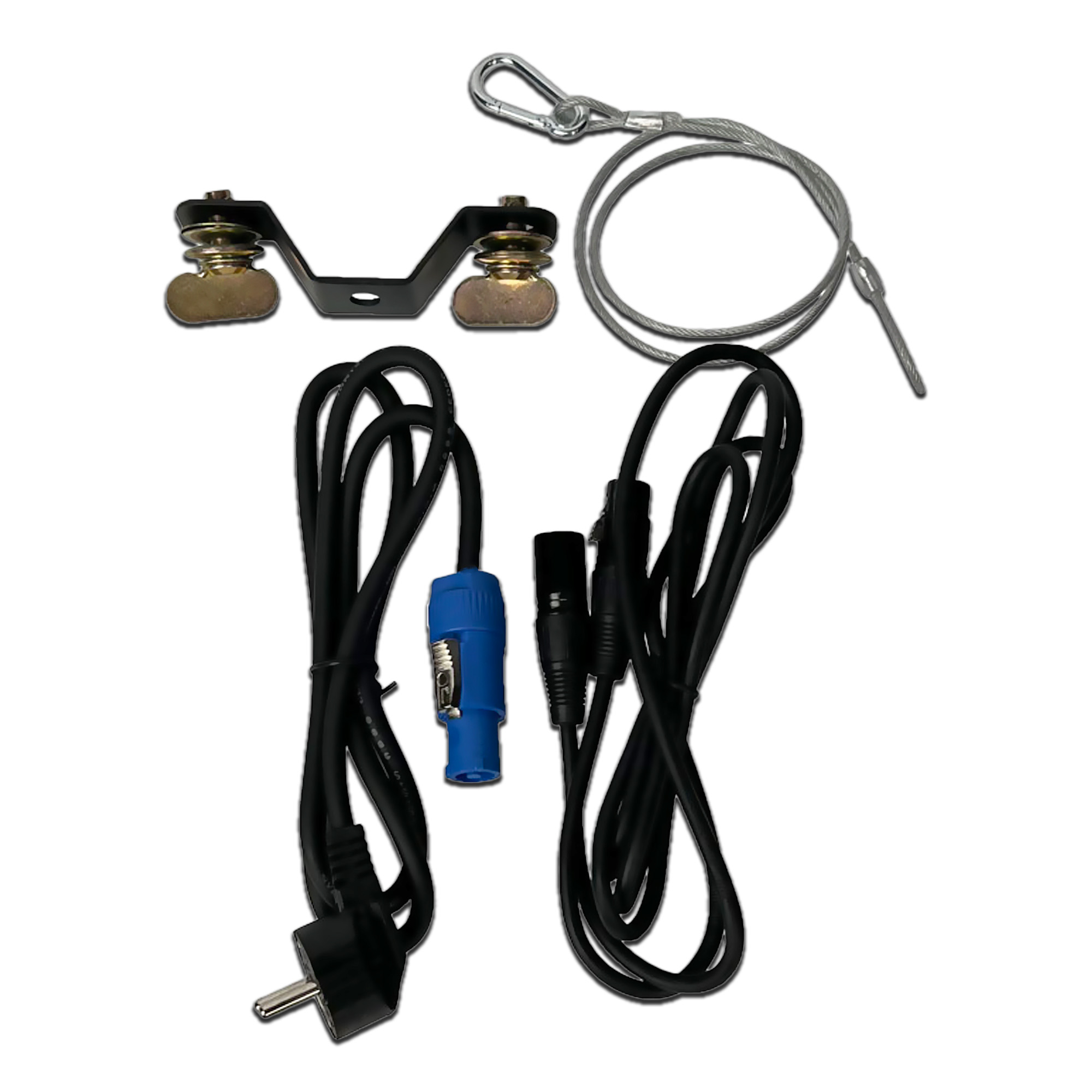

| Package contains | |
| Product | 1 pc |
| Power cord | 1 pc |
| Signal cord | 1 pc |

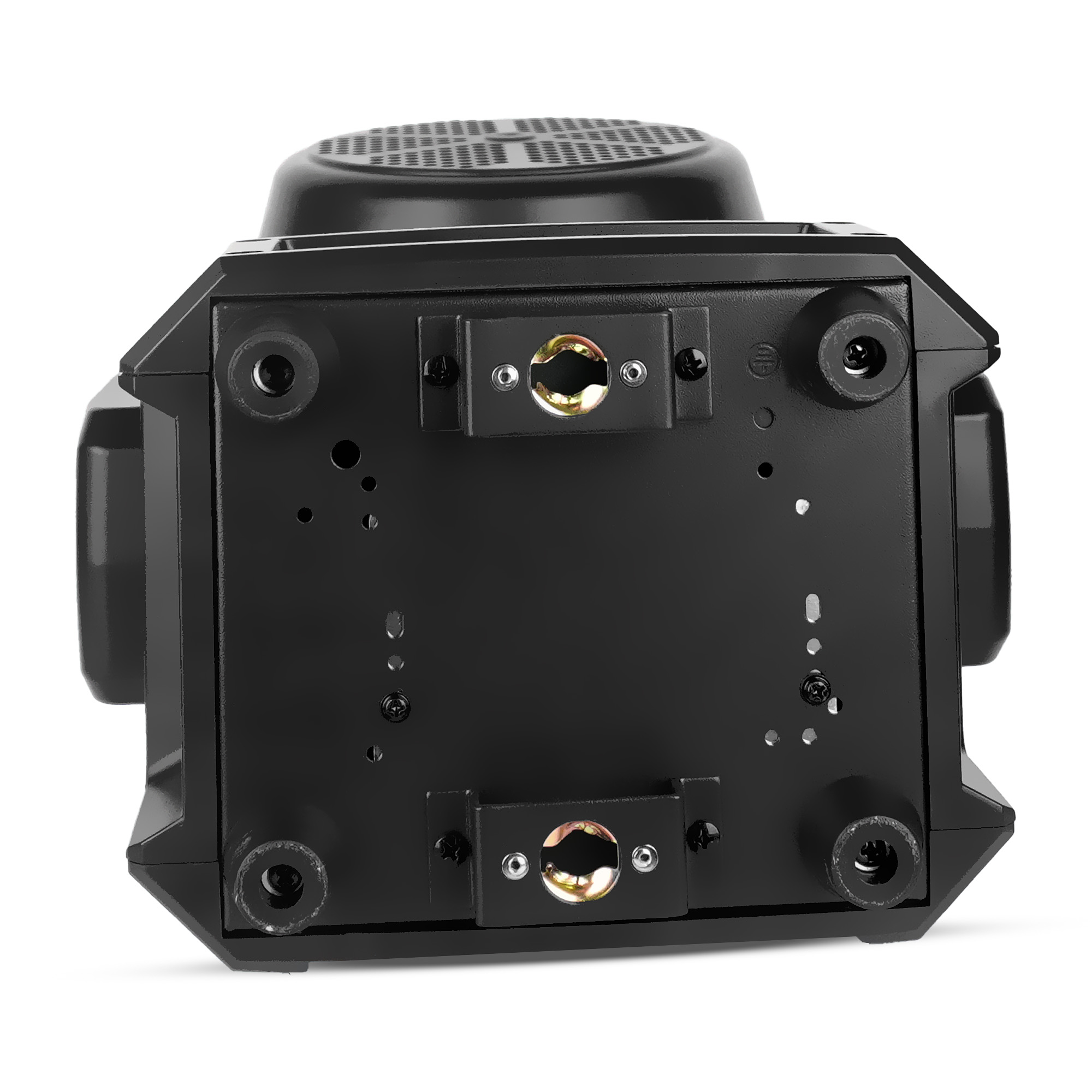

| Mounting bracket | 2 pcs |
| User manual | 1 pc |
| Size | |
| Product | 245 x 180 x 330 mm |
| Carton | 415 x 310 x 290 mm |
| Weight | |
| N.W. | 5,5 kg |
| G.W. (carton) | 7.1 kg |
