Brand: Pro Lux
Category: Dynamic bars

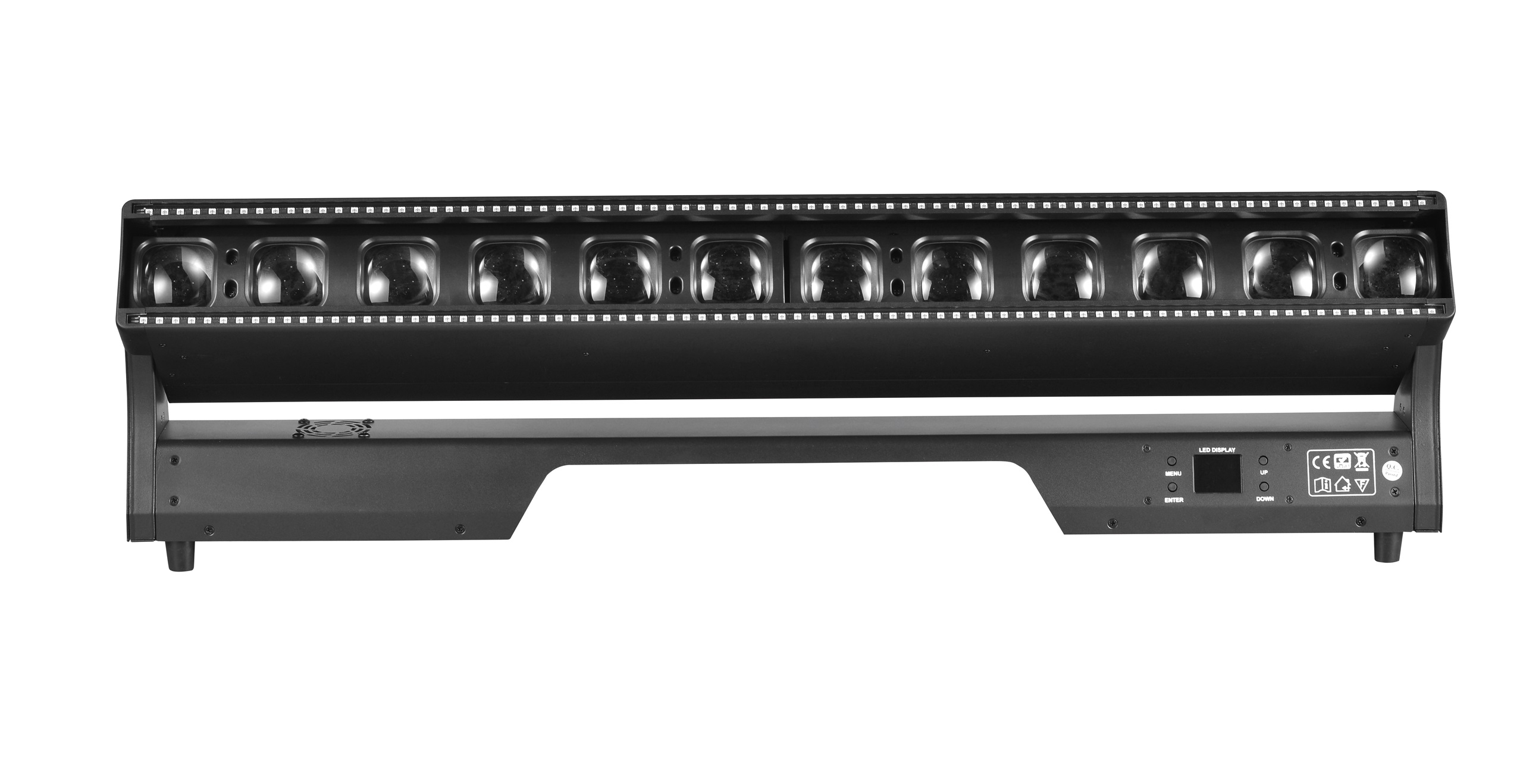

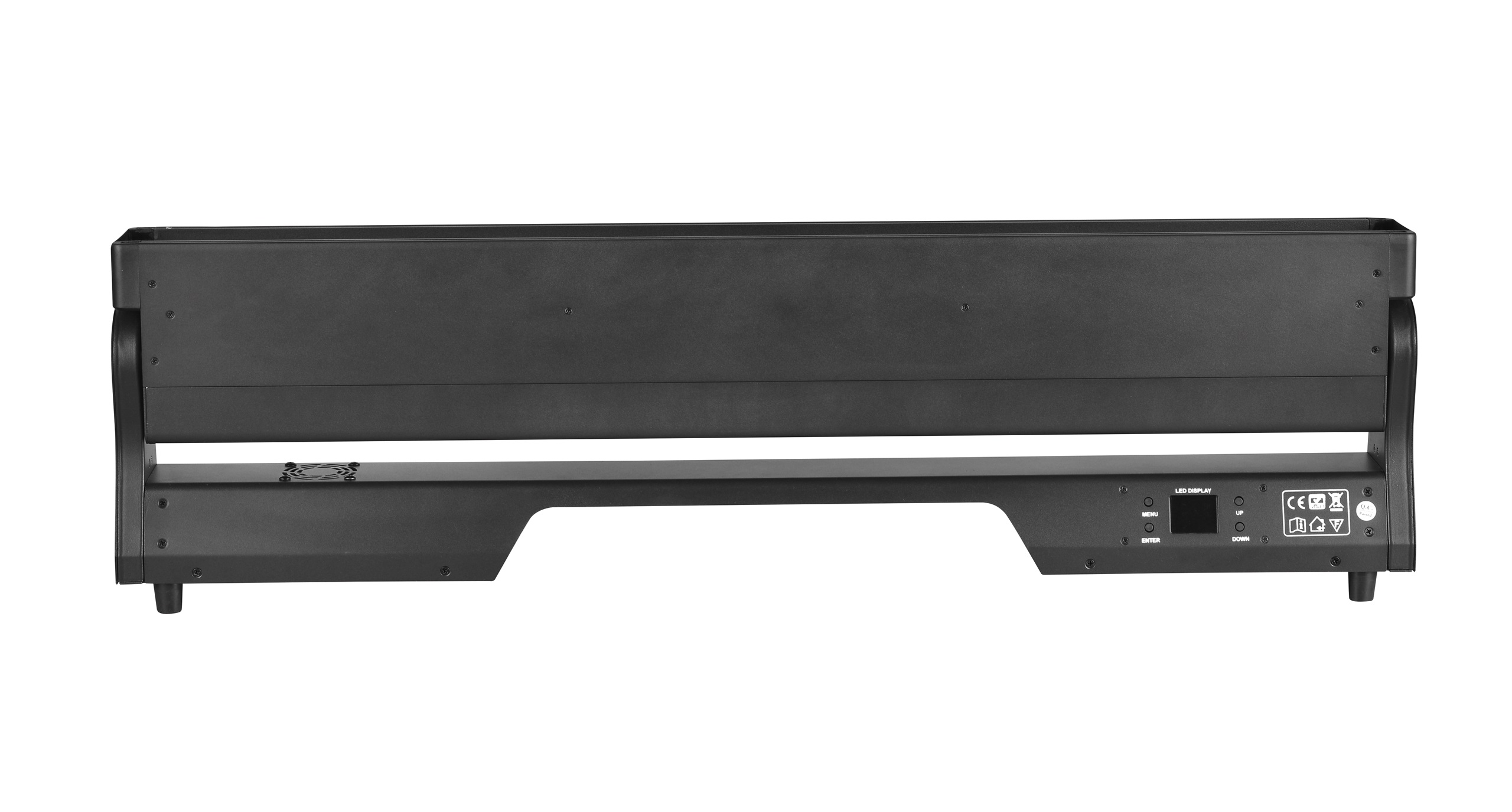

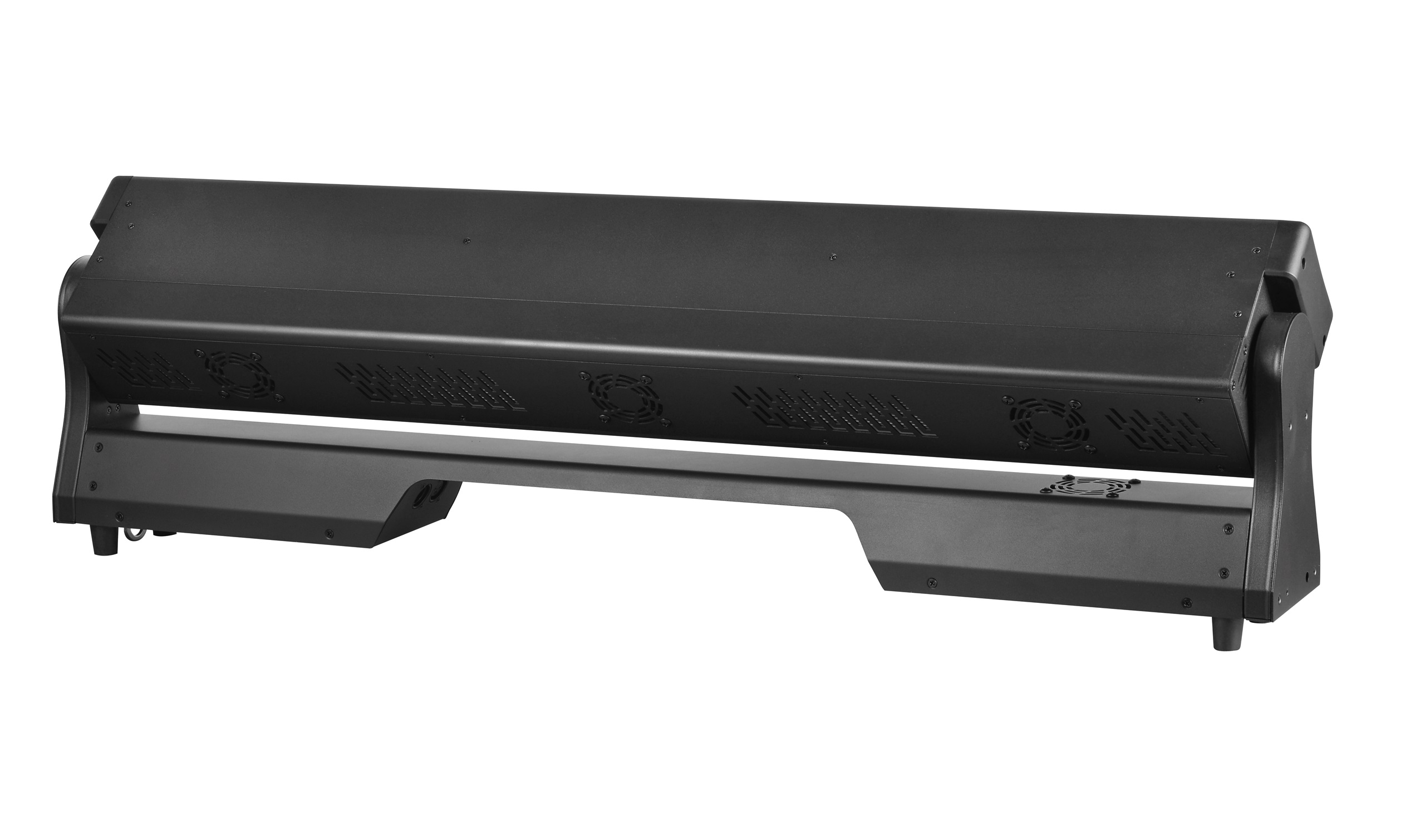

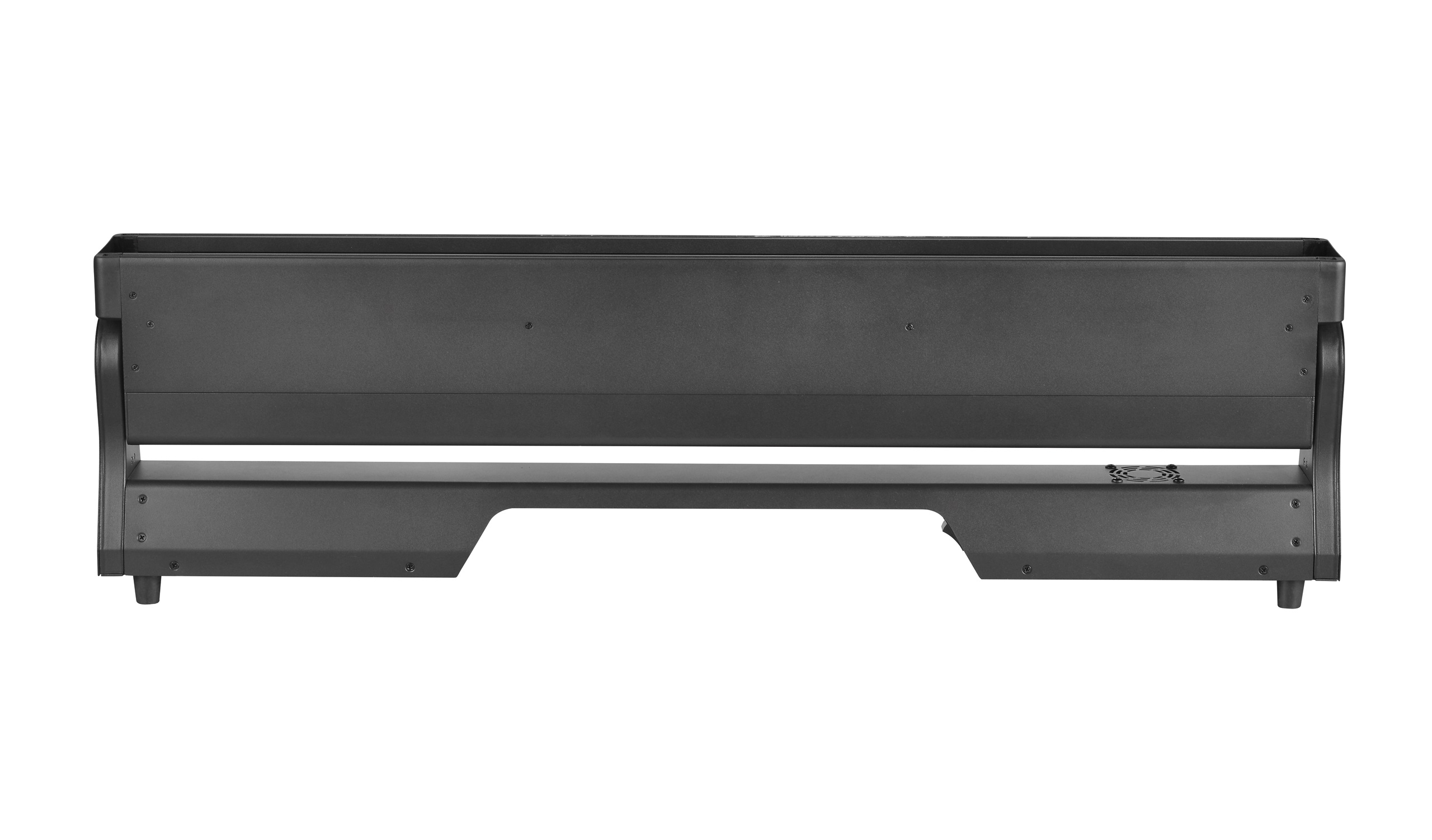

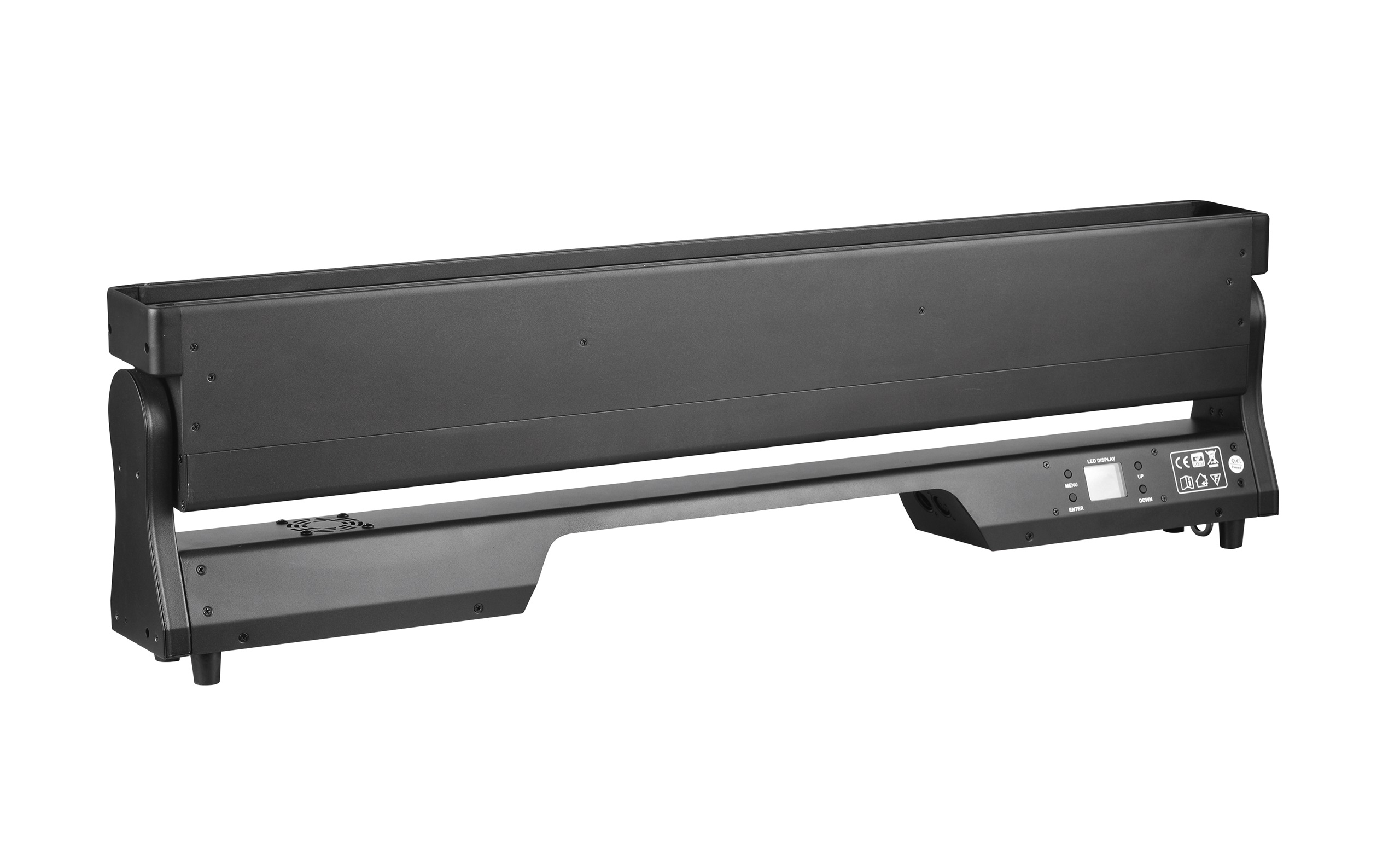

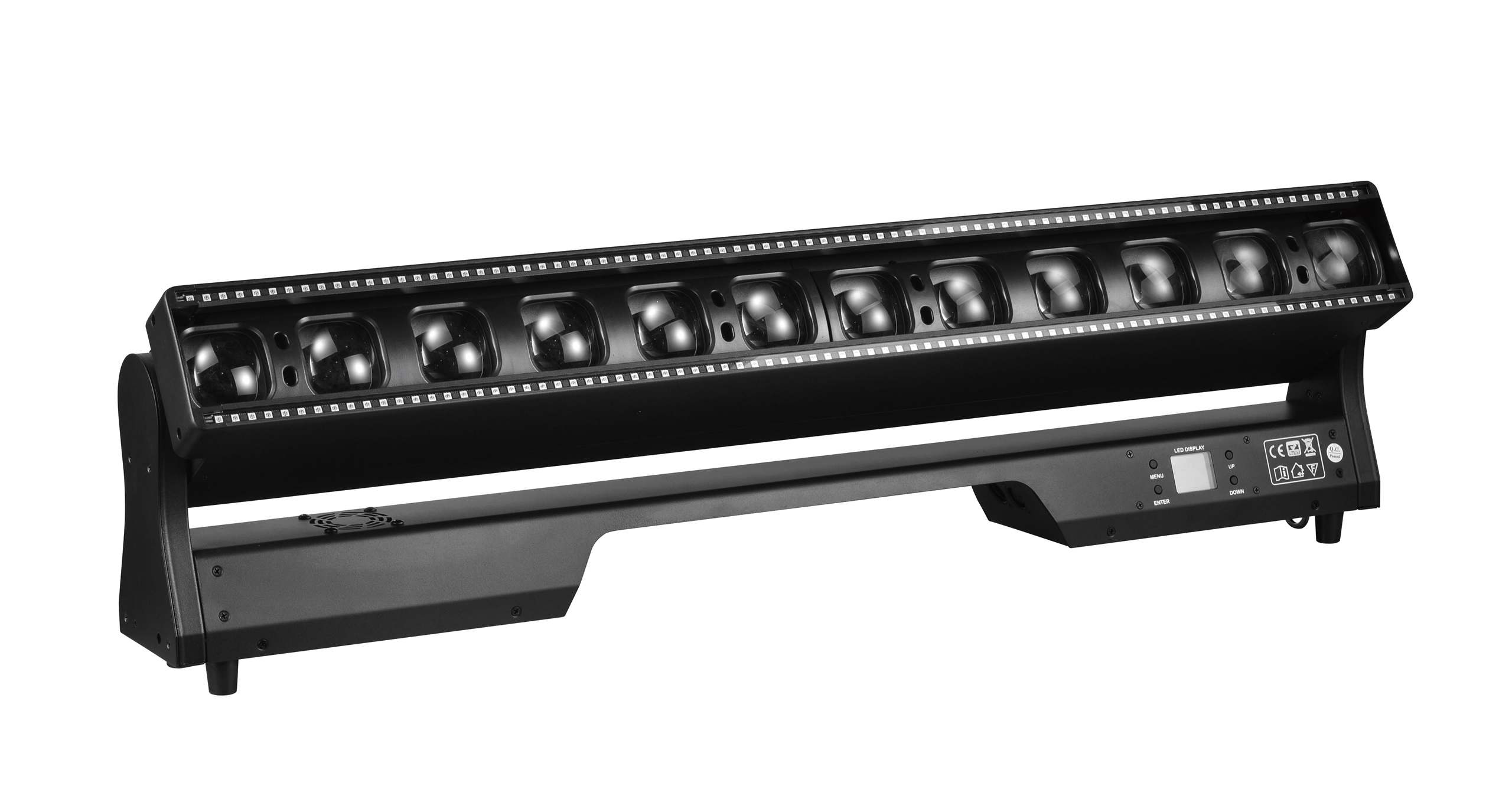

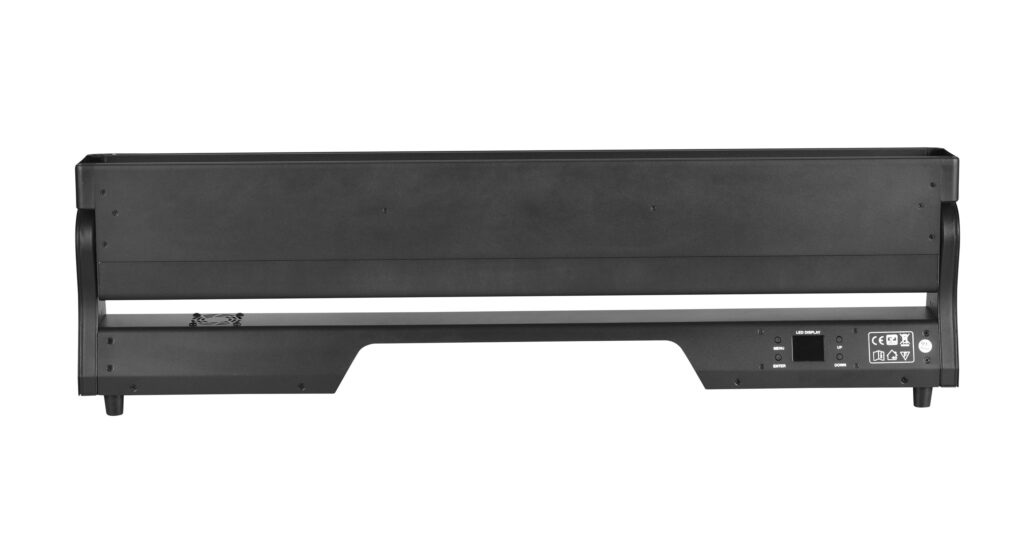

PRO LUX SUPER DOTLINE 1240
The LED dynamic panel can serve as both a flood device and a lighting effect. High-power 40-watt Osram LEDs have high brightness and color rendering. And tilt motion, built-in macros, and control of each LED allow you to create unforgettable lighting performances. The device will be a good tool for a lighting designer both at concert events and on theater stages.
| Source | |
| LED | 12 x 40W RGBW 4-in-1 |
| Lifespan | 50,000 hours |
| Optical group | |
| Beam angle | 3° — 30° |
| Zoom | Linear motorized |
| Source 2 | |
| LED | 164×0.5w RGB 3in1 |
| Features | |
| Color mixing system | RGBW |
| Available colors | Over 16,700,000 |
| Linear color changer | |
| Pixel mapping | Individual control of each LED |
| Strobe | Electronic 1-25 flashes/sec |
| Dimmer | Electronic 0-100% |
| Control | |
| Multifunctional LCD display | |
| DMX channels | 27/30/67 |
| Modes |
DMX512/master-slave/auto/sound activation
|
| Movement | |
| Tilt | 220° |
| Resolution | 8/16 bits |
| Power supply | |
| Input | AC 110-240 V, 50/60 Hz |
| Total power | 560 W |
| Connectors | |
| DMX512 | XLR 3-pin input/output |
| Power | powerCON input/output |
| Package contents | |
| Fixture | 1 pc |
| Power cable | 1 pc |
| Signal cable | 1 pc |
| Hanging bracket | 2 pcs |
| User manual | 1 pc |
| Dimensions | |
| Fixture | 1000 x 125 x 290 mm |
| Carton | 1060 x 180 x 350 mm |
| Weight | |
| Net | 16.3 kg |
| Gross | 18.4 kg |
