Brand: Pro Lux
Category: Moving Heads HYBRID

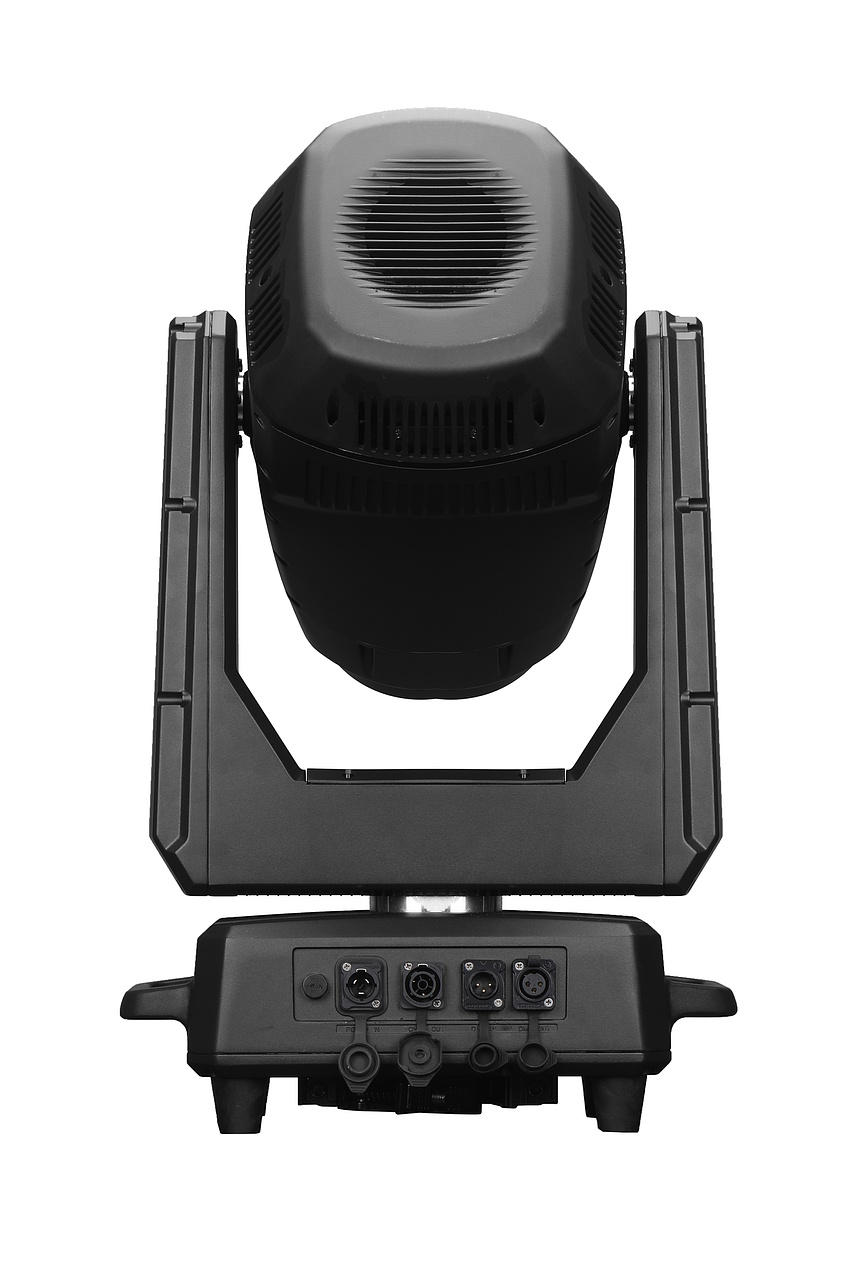

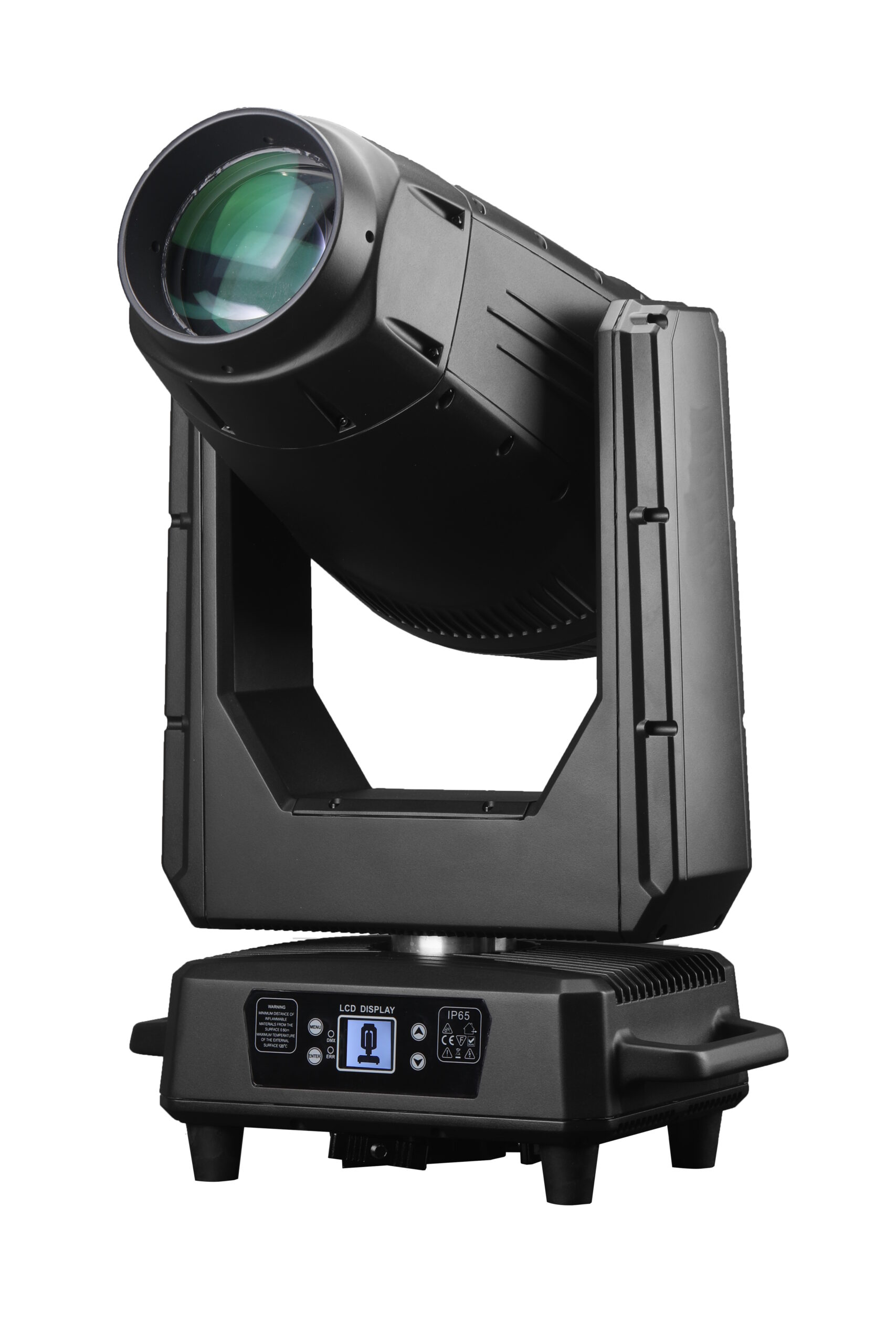

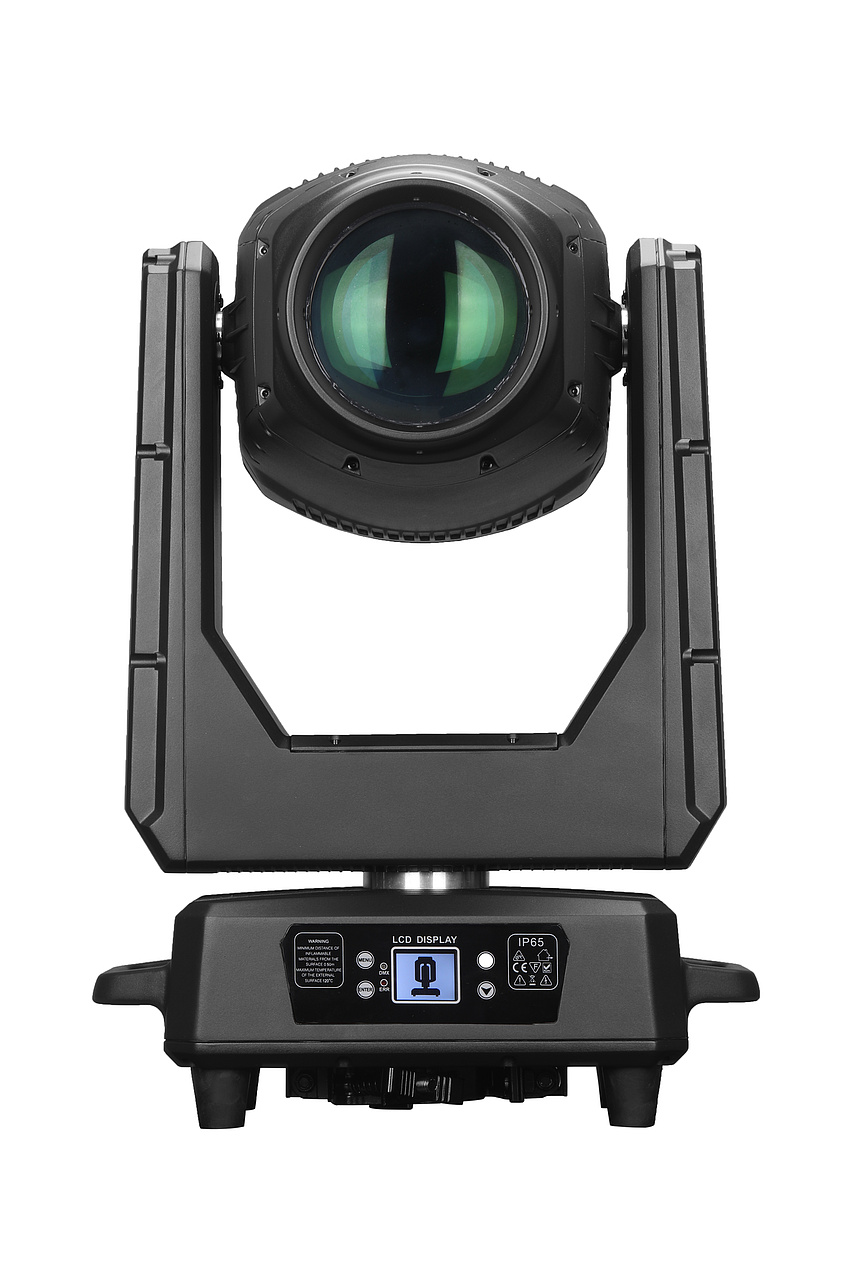

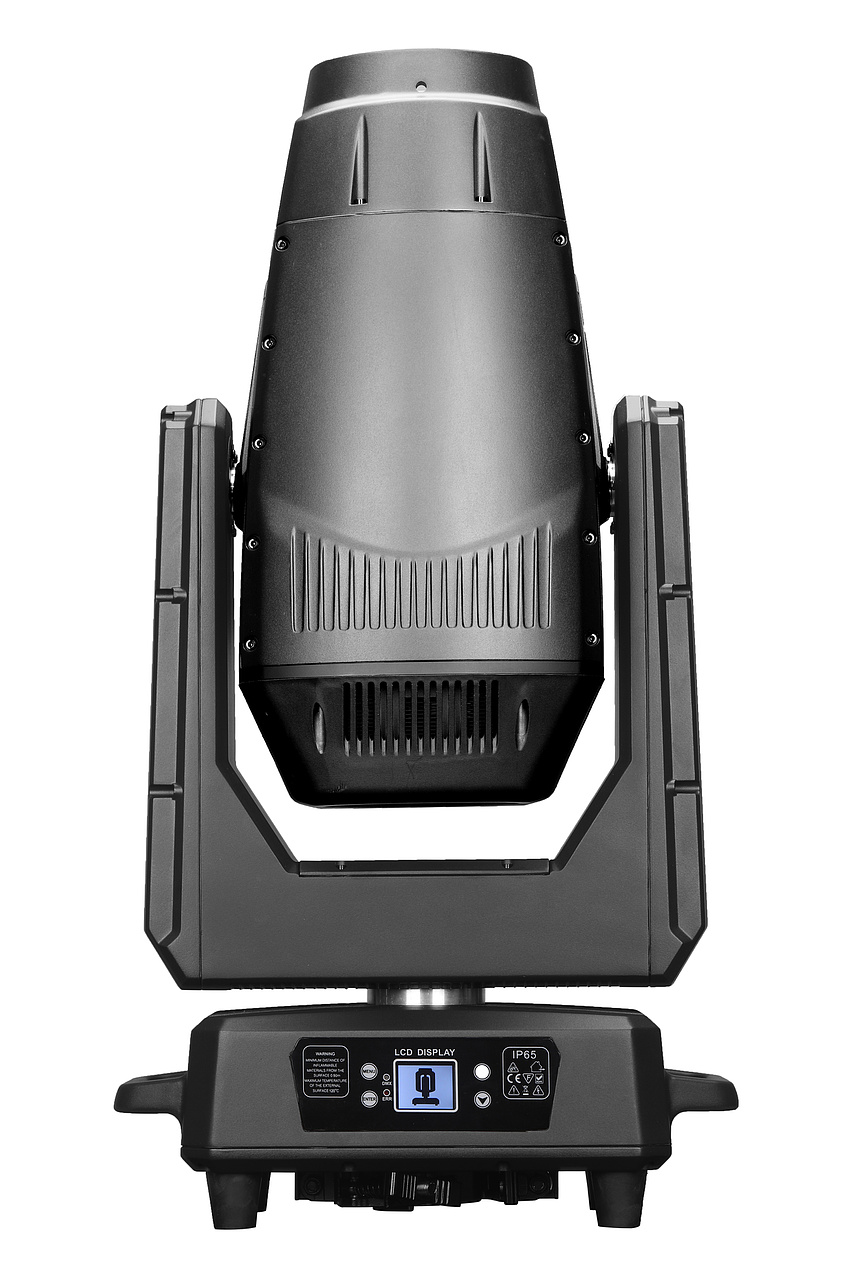

PRO LUX HOTBEAM 420 IP
Weatherproof moving head BEAM, SPOT, WASH with a 420W lamp.. Infinite linear color mixing thanks to CMY filters, two prisms with an overlay effect, zoomable frost, and a wide beam angle range allow you to create shows of any complexity. And thanks to the high-power lamp and IP66 protection class, the device can be used in open areas at stadium level in all weather conditions.
| Source | |
| Lamp | Ushio 420W gas discharge lamp |
| Lifespan | 3000 hours |
| Color temperature | 7800K |
| Optical system | |
| Beam angle | 2°- 40° |
| Zoom | Linear motorized |
| Focus | Linear motorized |
| Functions | |
| Color wheel | 14 colors + open position |
| CMY | Linear |
| CTO | Linear 3200K -7500K |
| Gobo wheel 1 | 10 fixed gobos + open position |
| Gobo wheel 2 | 8 rotating gobos + open position |
| Prism | 6-facet linear and 8-facet circular, with bidirectional rotation |
| Frost filter | |
| Strobe | Mechanical |
| Dimmer | Mechanical 0-100% |
| Control | |
| Multifunctional LCD display | |
| DMX channels | 25 |
| Modes | DMX512/RDM/master-slave/auto |
| Movement | |
| Pan | 540° |
| Tilt | 270° |
| Resolution | 8/16 bits |
| Power supply | |
| Input | AC 110-240 V, 50/60 Hz |
| Total power | 650 W |
| Connections | |
| DMX512 | Seetronic waterproof XLR 3-pin in/out |
| Power | Seetronic powerCON TRUE1 input |
| Protection | |
| Protection class | IP66 |
| Package contents | |
| Spotlight | 1 pc |
| Power cable | 1 pc |
| Signal cable | 1 pc |
| Mounting bracket | 2 pcs |
| User manual | 1 pc |
| Size | |
| Spotlight | 415x240x766 mm |
| Weight | |
| N.W. | 24 kg |
| G.W. (carton) | 27 kg |
